Repair information 4-75
7013-XXX

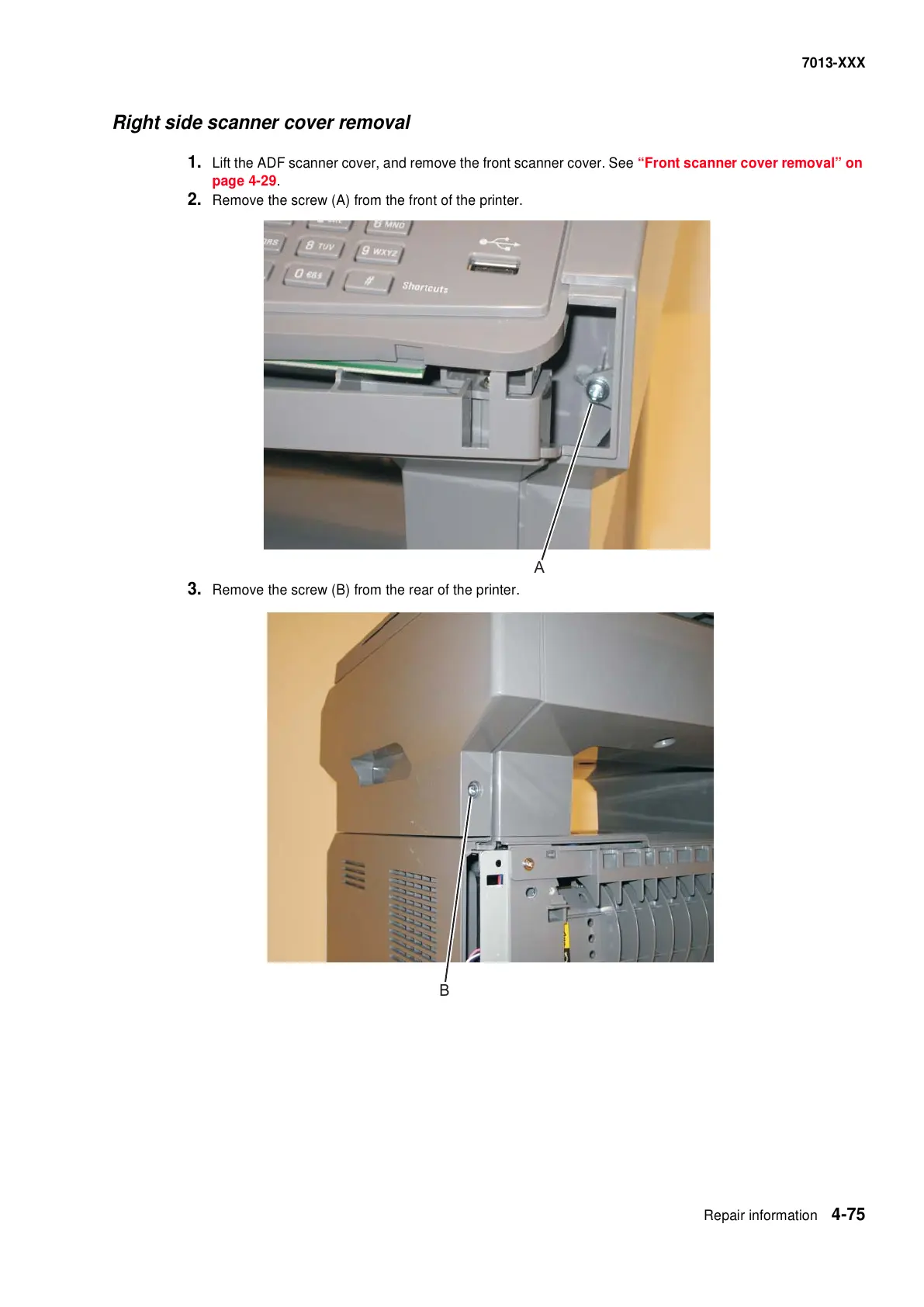

Right side scanner cover removal
1. Lift the ADF scanner cover, and remove the front scanner cover. See “Front scanner cover removal” on
page 4-29.
2. Remove the screw (A) from the front of the printer.
3. Remove the screw (B) from the rear of the printer.
A
B
