Lexmark X264dn Service Manual

2-46 Service Manual
7013-XXX

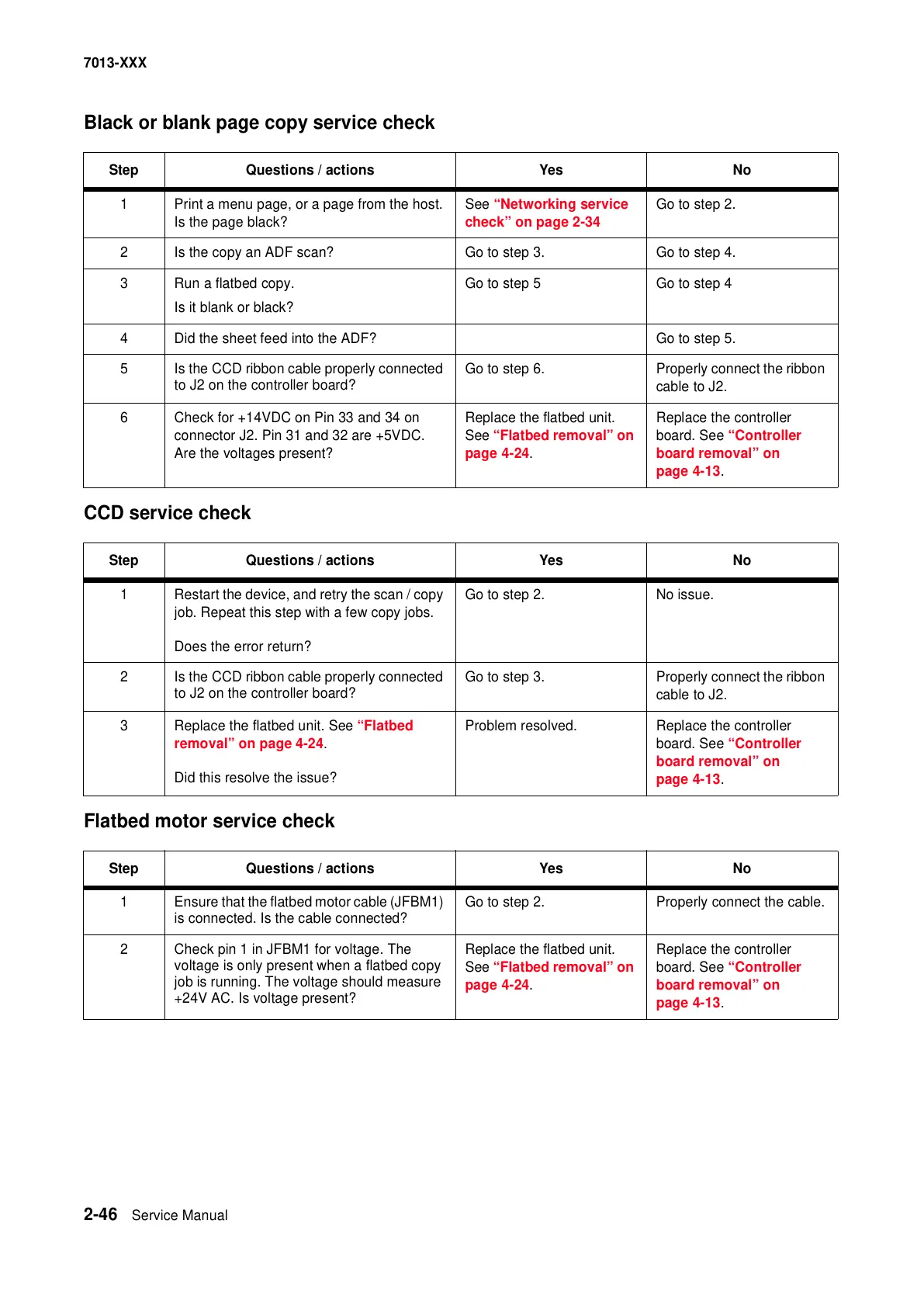

Black or blank page copy service check
CCD service check
Flatbed motor service check
Step Questions / actions Yes No
1 Print a menu page, or a page from the host.
Is the page black?
See “Networking service
check” on page 2-34
Go to step 2.
2 Is the copy an ADF scan? Go to step 3. Go to step 4.
3 Run a flatbed copy.
Is it blank or black?
Go to step 5 Go to step 4
4 Did the sheet feed into the ADF? Go to step 5.
5 Is the CCD ribbon cable properly connected
to J2 on the controller board?
Go to step 6. Properly connect the ribbon
cable to J2.
6 Check for +14VDC on Pin 33 and 34 on
connector J2. Pin 31 and 32 are +5VDC.
Are the voltages present?
Replace the flatbed unit.
See
“Flatbed removal” on
page 4-24.
Replace the controller
board. See
“Controller
board removal” on
page 4-13.
Step Questions / actions Yes No
1 Restart the device, and retry the scan / copy
job. Repeat this step with a few copy jobs.
Does the error return?
Go to step 2. No issue.
2 Is the CCD ribbon cable properly connected
to J2 on the controller board?
Go to step 3. Properly connect the ribbon
cable to J2.
3 Replace the flatbed unit. See “Flatbed
removal” on page 4-24.
Did this resolve the issue?
Problem resolved. Replace the controller
board. See
“Controller
board removal” on
page 4-13.
Step Questions / actions Yes No
1 Ensure that the flatbed motor cable (JFBM1)
is connected. Is the cable connected?
Go to step 2. Properly connect the cable.
2 Check pin 1 in JFBM1 for voltage. The
voltage is only present when a flatbed copy
job is running. The voltage should measure
+24V AC. Is voltage present?
Replace the flatbed unit.
See
“Flatbed removal” on
page 4-24.
Replace the controller
board. See
“Controller
board removal” on
page 4-13.
All manuals and user guides at all-guides.com

Lexmark X264dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scanner type	Flatbed scanner
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Maximum input capacity	800 sheets
A6 Card	Yes
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 440 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	64 MB
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet
Maximum duty cycle	50000 pages per month
Page description languages	PPDS
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336
Market positioning	Business
