Lexmark X264dn Service Manual

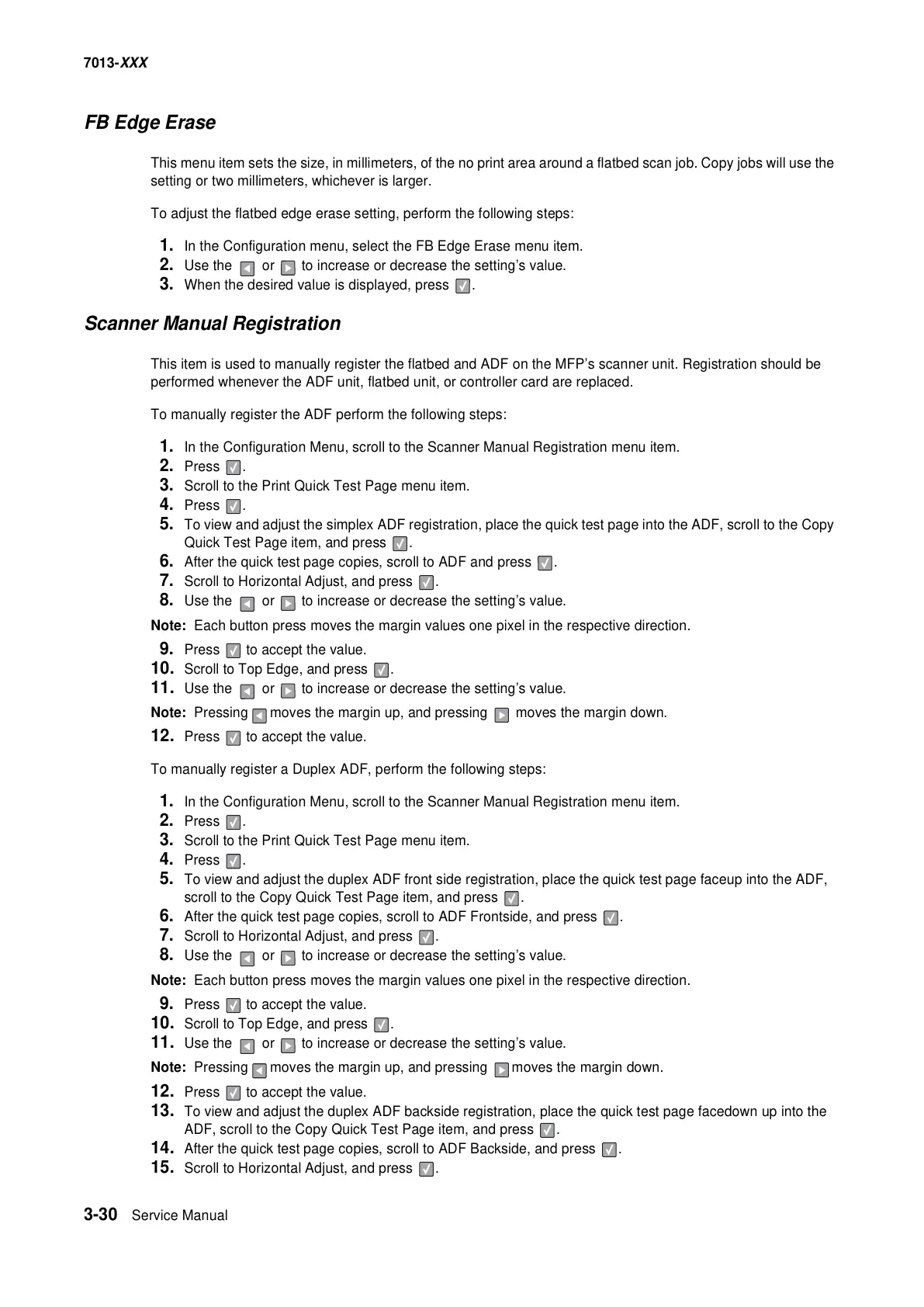

3-30 Service Manual
7013-XXX
FB Edge Erase
This menu item sets the size, in millimeters, of the no print area around a flatbed scan job. Copy jobs will use the
setting or two millimeters, whichever is larger.
To adjust the flatbed edge erase setting, perform the following steps:
1. In the Configuration menu, select the FB Edge Erase menu item.
2. Use the or to increase or decrease the setting’s value.
3. When the desired value is displayed, press .
Scanner Manual Registration
This item is used to manually register the flatbed and ADF on the MFP’s scanner unit. Registration should be
performed whenever the ADF unit, flatbed unit, or controller card are replaced.
To manually register the ADF perform the following steps:
1. In the Configuration Menu, scroll to the Scanner Manual Registration menu item.
2. Press .
3. Scroll to the Print Quick Test Page menu item.
4. Press .
5. To view and adjust the simplex ADF registration, place the quick test page into the ADF, scroll to the Copy
Quick Test Page item, and press
.
6. After the quick test page copies, scroll to ADF and press .
7. Scroll to Horizontal Adjust, and press .
8. Use the or to increase or decrease the setting’s value.
Note: Each button press moves the margin values one pixel in the respective direction.
9. Press to accept the value.
10. Scroll to Top Edge, and press .
11. Use the or to increase or decrease the setting’s value.
Note: Pressing moves the margin up, and pressing moves the margin down.
12. Press to accept the value.
To manually register a Duplex ADF, perform the following steps:
1. In the Configuration Menu, scroll to the Scanner Manual Registration menu item.
2. Press .
3. Scroll to the Print Quick Test Page menu item.
4. Press .
5. To view and adjust the duplex ADF front side registration, place the quick test page faceup into the ADF,
scroll to the Copy Quick Test Page item, and press
.
6. After the quick test page copies, scroll to ADF Frontside, and press .
7. Scroll to Horizontal Adjust, and press .
8. Use the or to increase or decrease the setting’s value.
Note: Each button press moves the margin values one pixel in the respective direction.
9. Press to accept the value.
10. Scroll to Top Edge, and press .
11. Use the or to increase or decrease the setting’s value.
Note: Pressing moves the margin up, and pressing moves the margin down.
12. Press to accept the value.
13. To view and adjust the duplex ADF backside registration, place the quick test page facedown up into the
ADF, scroll to the Copy Quick Test Page item, and press
.
14. After the quick test page copies, scroll to ADF Backside, and press .
15. Scroll to Horizontal Adjust, and press .
All manuals and user guides at all-guides.com

Lexmark X264dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scanner type	Flatbed scanner
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	28 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	250 sheets
Maximum input capacity	800 sheets
A6 Card	Yes
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 440 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	64 MB
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	Ethernet
Maximum duty cycle	50000 pages per month
Page description languages	PPDS
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336
Market positioning	Business
