5. Locations and connections
Locations

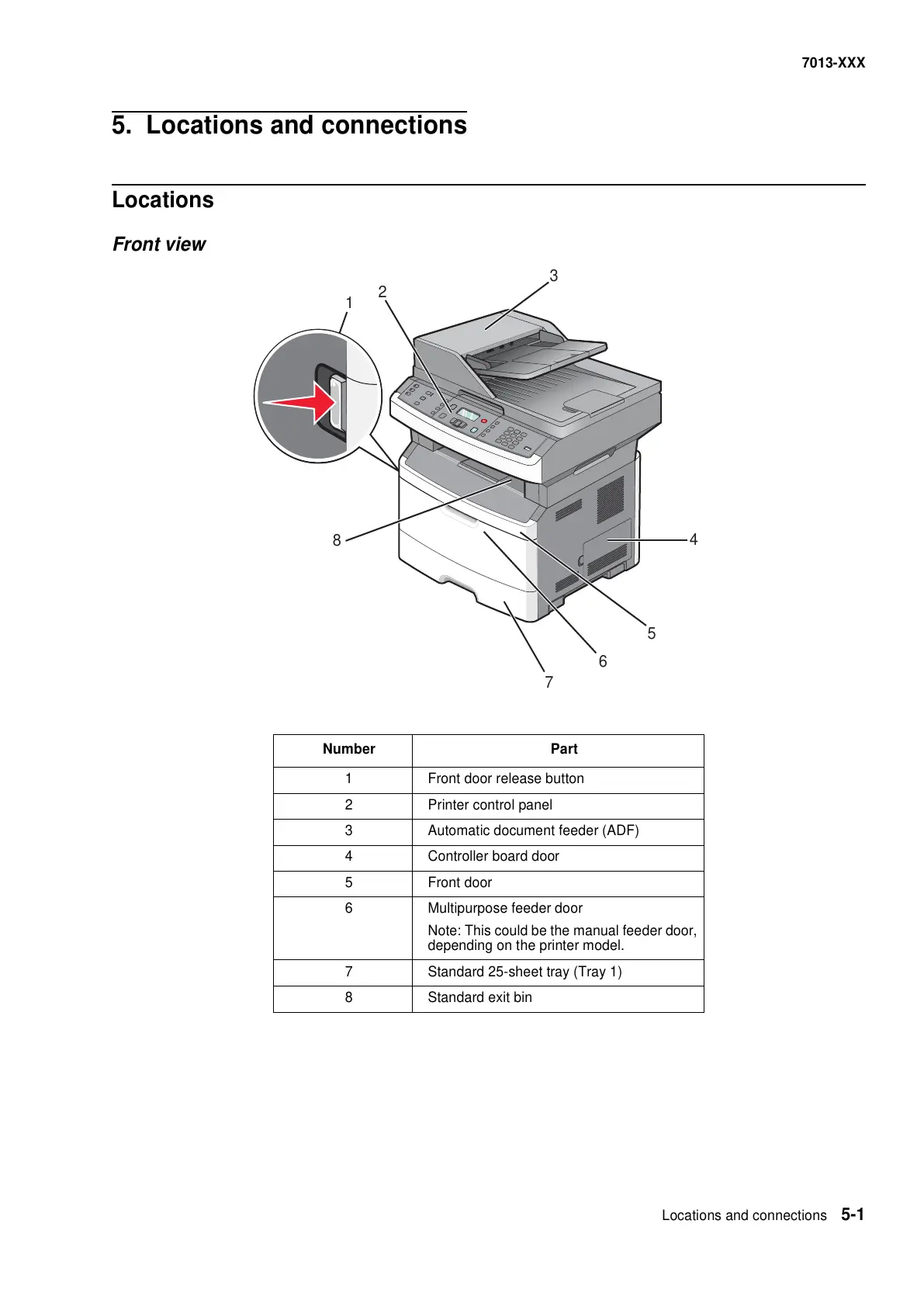

Front view
Number Part
1
Front door release button
2 Printer control panel
3 Automatic document feeder (ADF)
4 Controller board door
5 Front door
6 Multipurpose feeder door
Note: This could be the manual feeder door,
depending on the printer model.
7
Standard 25-sheet tray (Tray 1)
8 Standard exit bin
1
2
3
4
5
6
7
8
