Lexmark X264dn - Page 222

4-84 Service Manual
7013-XXX

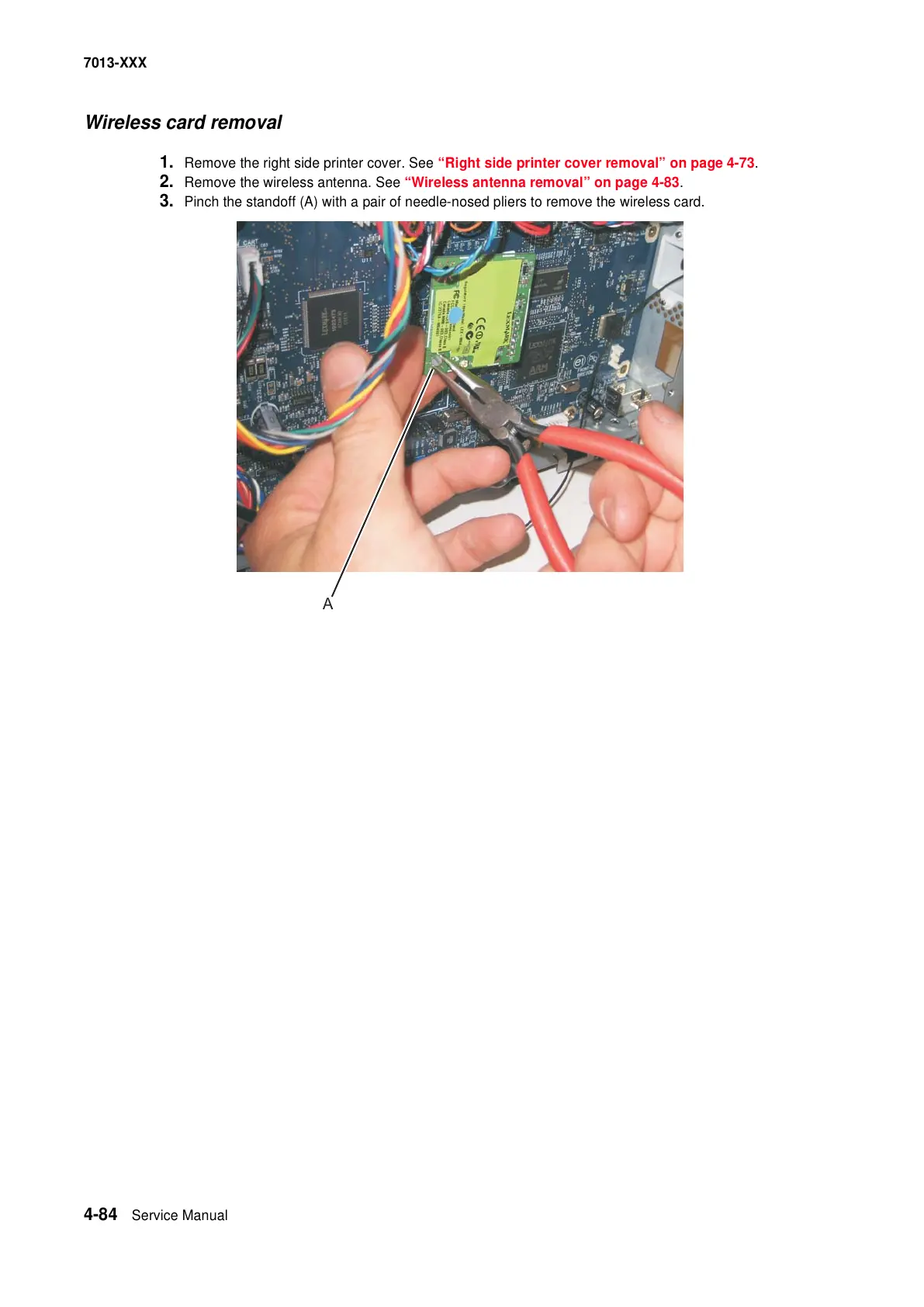

Wireless card removal
1. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
2. Remove the wireless antenna. See “Wireless antenna removal” on page 4-83.
3. Pinch the standoff (A) with a pair of needle-nosed pliers to remove the wireless card.
A
