Repair information 4-83
7013-XXX

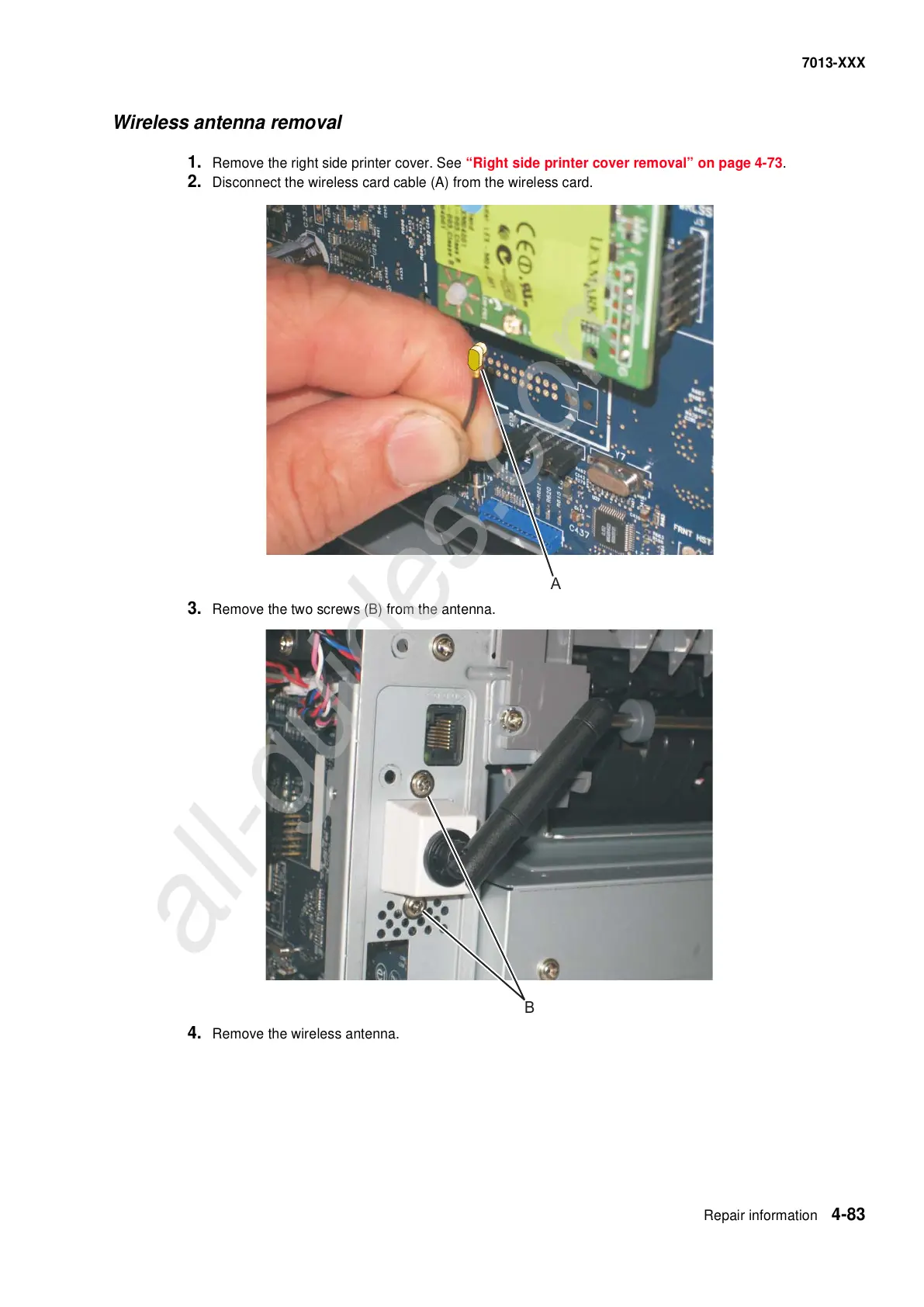

Wireless antenna removal
1. Remove the right side printer cover. See “Right side printer cover removal” on page 4-73.
2. Disconnect the wireless card cable (A) from the wireless card.
3. Remove the two screws (B) from the antenna.
4. Remove the wireless antenna.
A
B
