Lexmark X264dn - Right Side Scanner Cover Removal

Repair information 4-69
7013-XXX

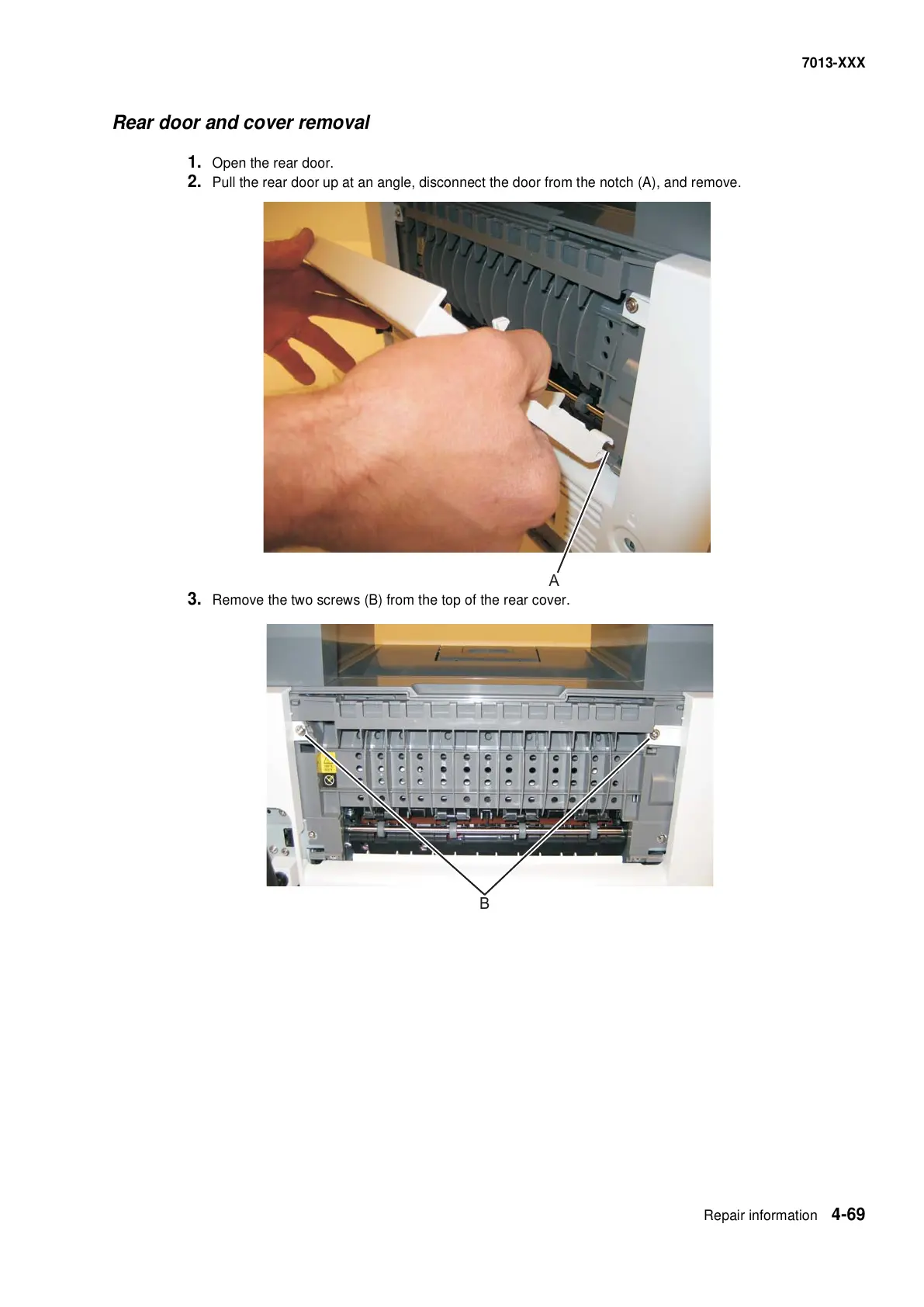

Rear door and cover removal
1. Open the rear door.
2. Pull the rear door up at an angle, disconnect the door from the notch (A), and remove.
3. Remove the two screws (B) from the top of the rear cover.
A
B
