Lexmark X264dn - Ordering supplies

4-12 Service Manual
7013-XXX

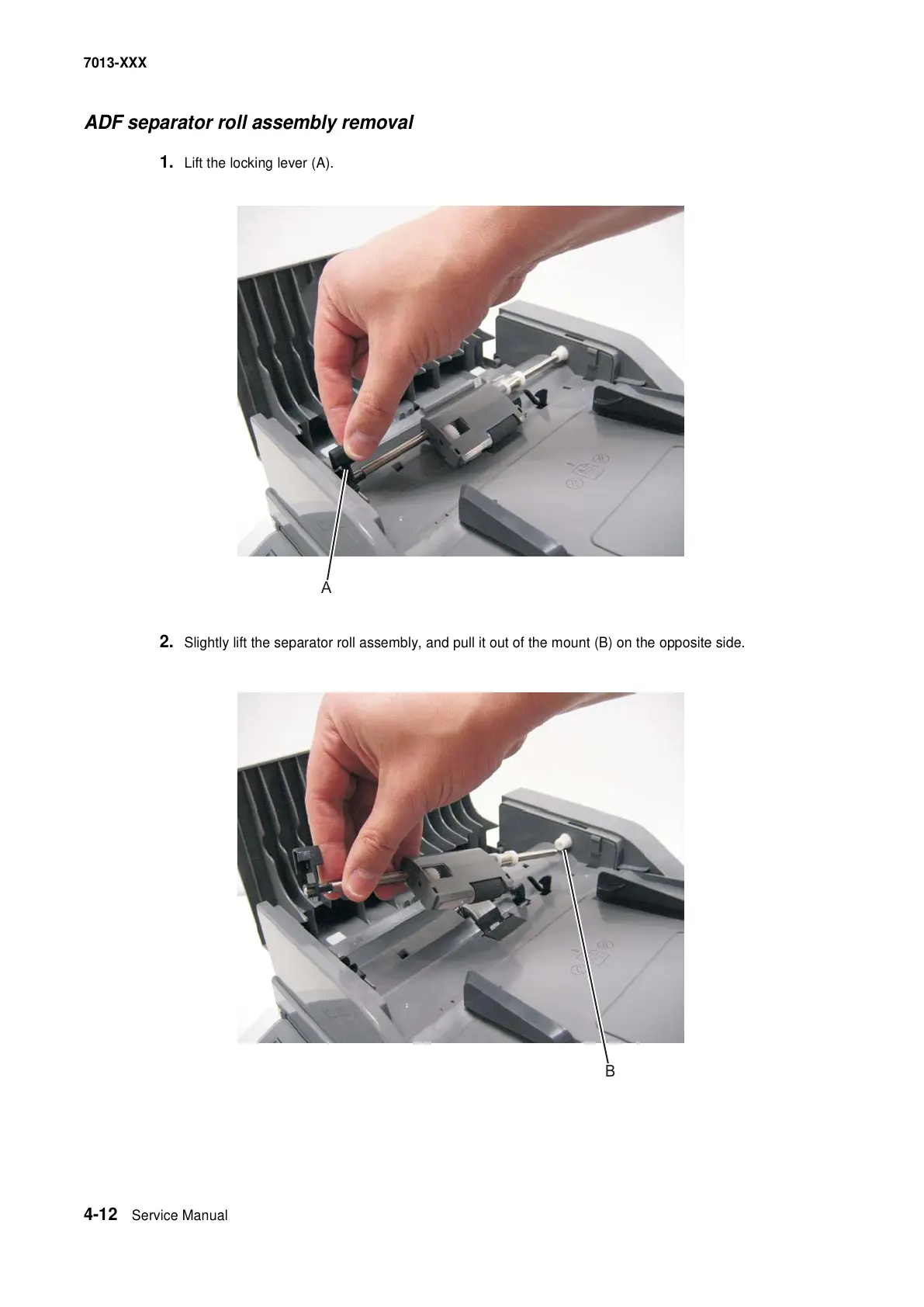

ADF separator roll assembly removal
1. Lift the locking lever (A).
2. Slightly lift the separator roll assembly, and pull it out of the mount (B) on the opposite side.
A
B
