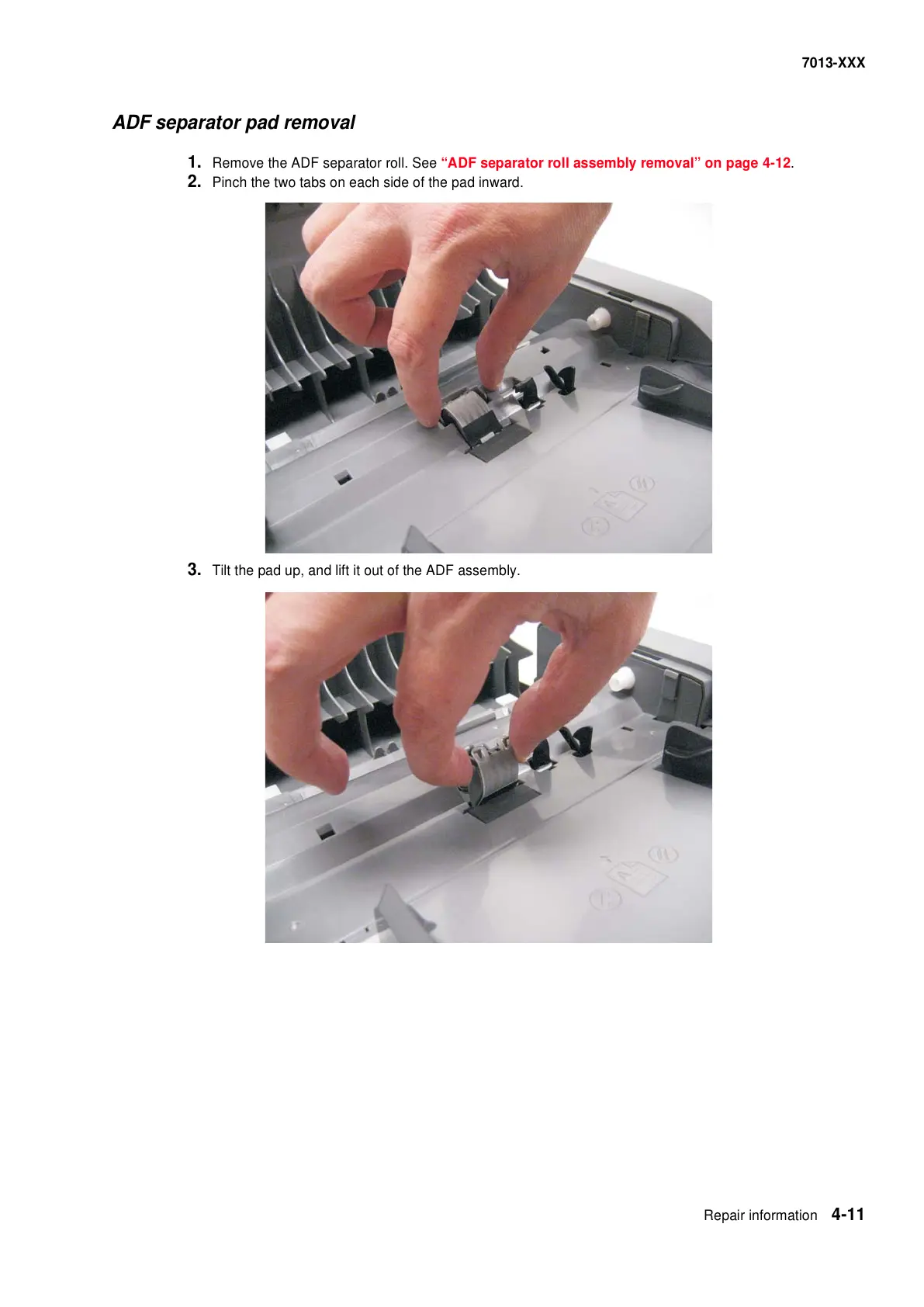

ADF separator pad removal
1. Remove the ADF separator roll. See “ADF separator roll assembly removal” on page 4-12.
2. Pinch the two tabs on each side of the pad inward.
3. Tilt the pad up, and lift it out of the ADF assembly.
