Lexmark X264dn - Page 170

4-32 Service Manual
7013-XXX

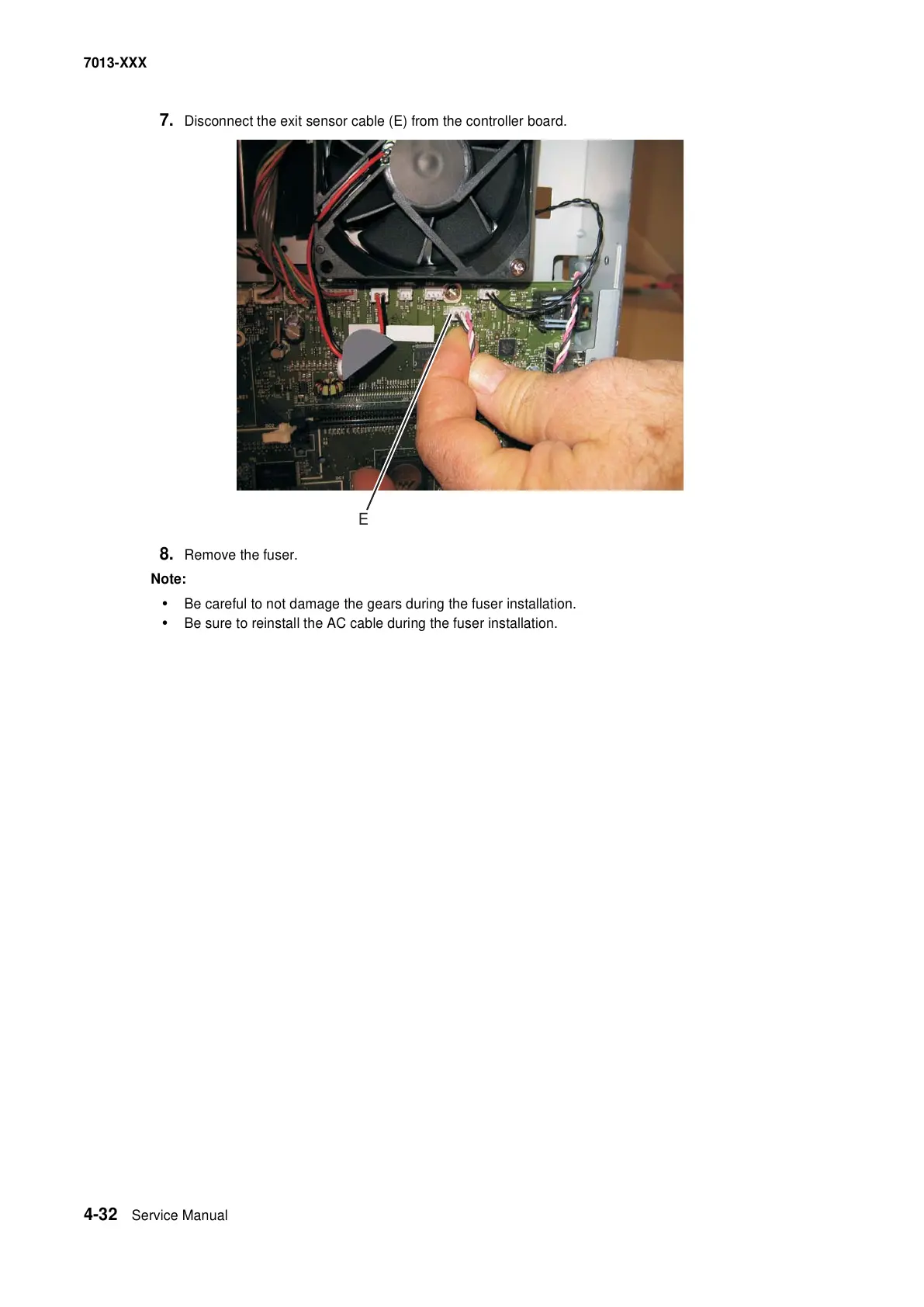

7. Disconnect the exit sensor cable (E) from the controller board.
8. Remove the fuser.
Note:
• Be careful to not damage the gears during the fuser installation.
• Be sure to reinstall the AC cable during the fuser installation.
E
