Repair information 4-27
7013-XXX

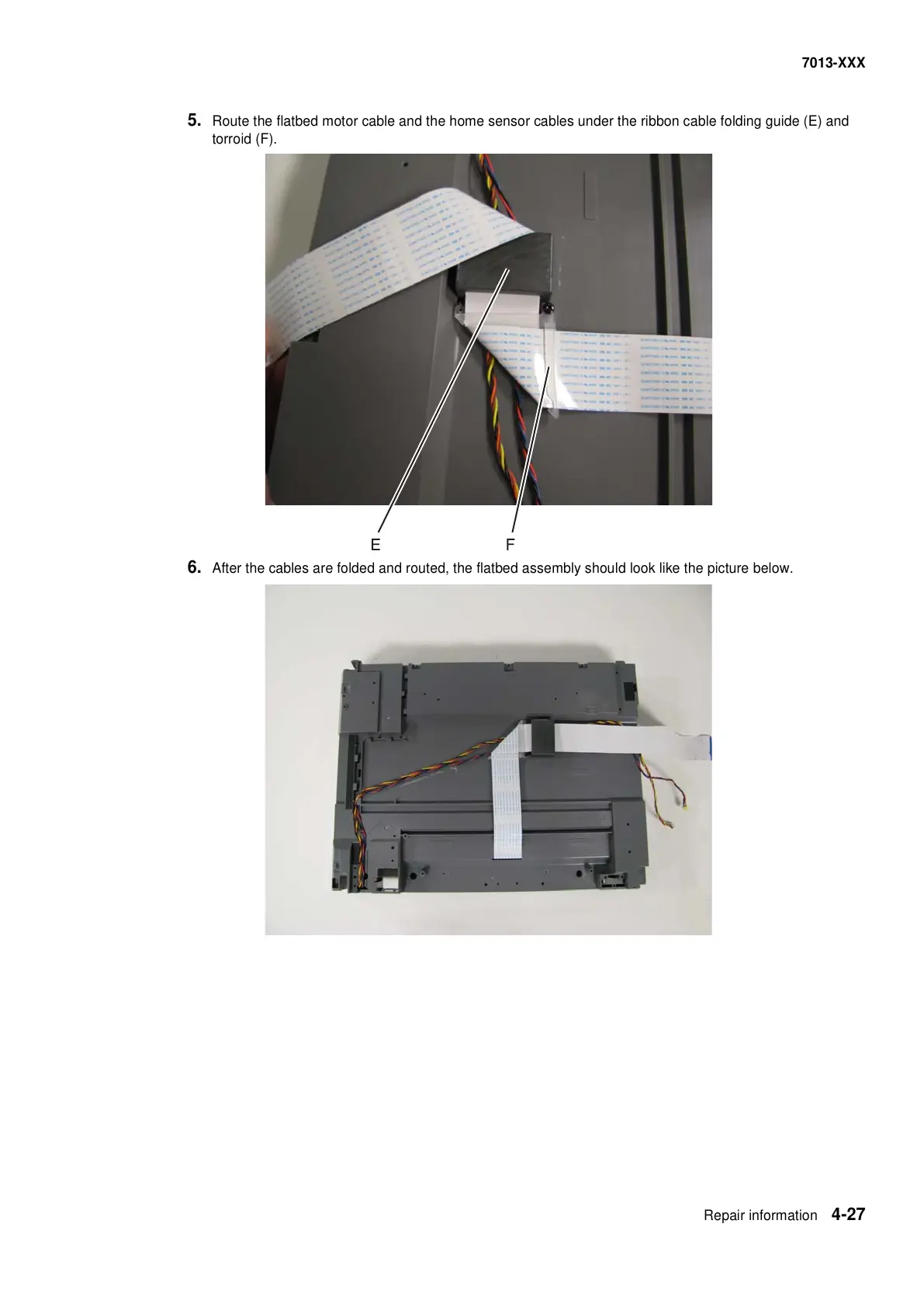

5. Route the flatbed motor cable and the home sensor cables under the ribbon cable folding guide (E) and
torroid (F).
6. After the cables are folded and routed, the flatbed assembly should look like the picture below.
