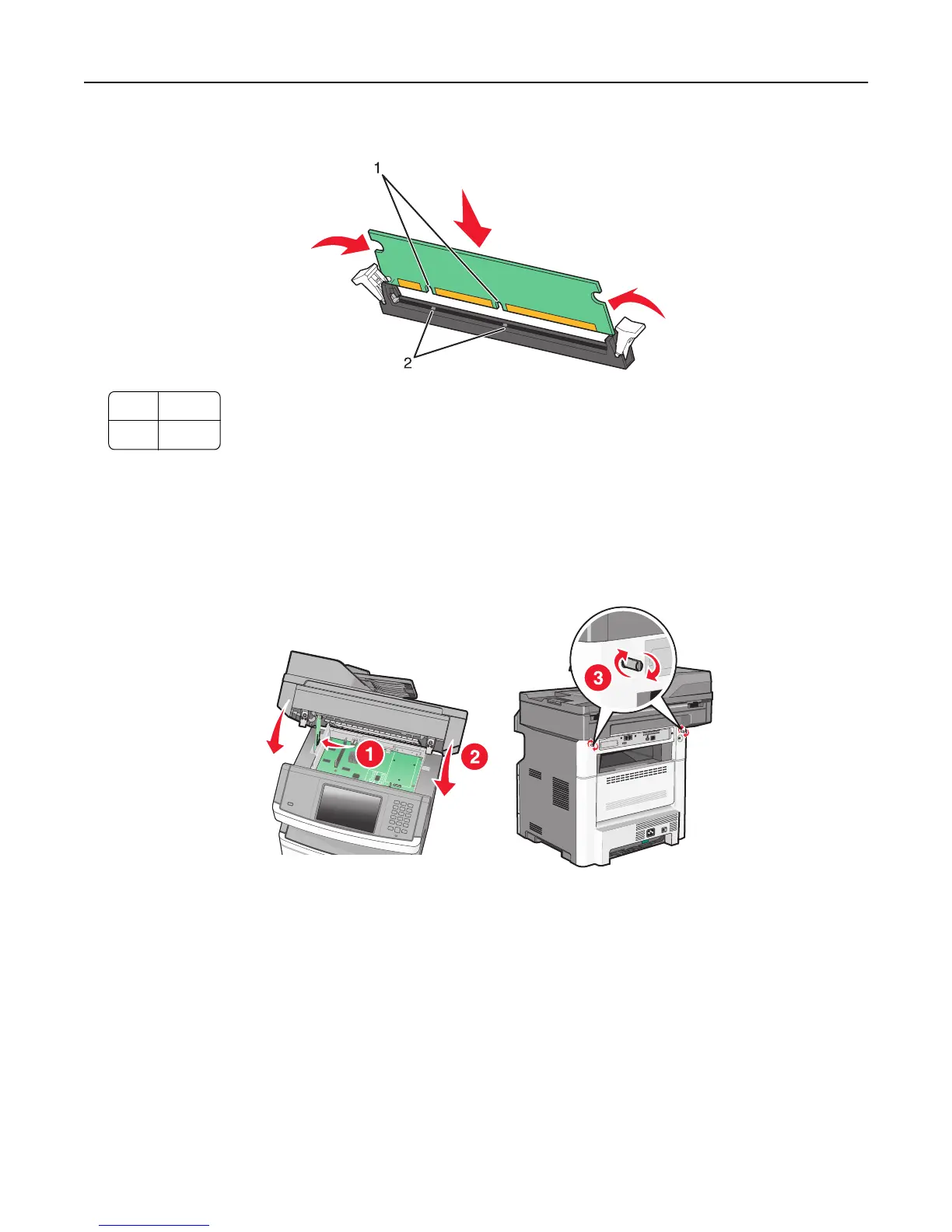

4 Align the notches on the memory card with the ridges in the connector.
1 Notches
2 Ridges
5 Push the memory card straight into the connector until it clicks into place.
Note: After the memory card is installed, make sure the memory card connector latches return to the latched
vertical position and are secure against the card.
6 Release the system board access latch, and then close the system board door by lowering the scanner.
7 Push in on the screws while rotating them clockwise a quarter turn to lock the system board into place.
Warning—Potential Damage: Make sure the system board is locked to prevent possible damage to the printer if it is
moved.
Additional printer setup 32
