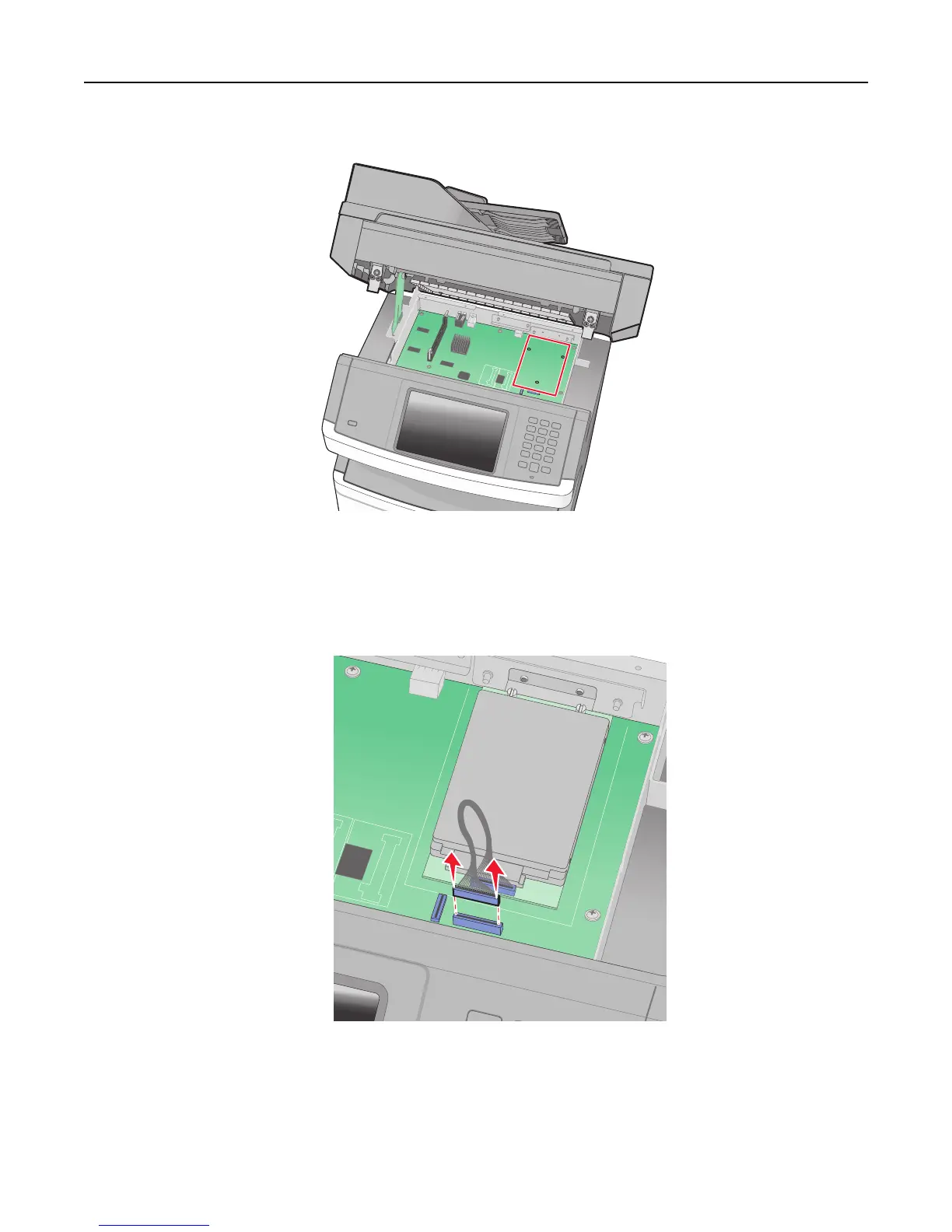

3 Locate the appropriate connector on the system board.

Note: If an optional printer hard disk is currently installed, then the printer hard disk must first be removed. To

remove the hard disk:

a Unplug the printer hard disk interface cable from the system board, leaving the cable attached to the printer

hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch

before pulling the cable out.

Additional printer setup 36
