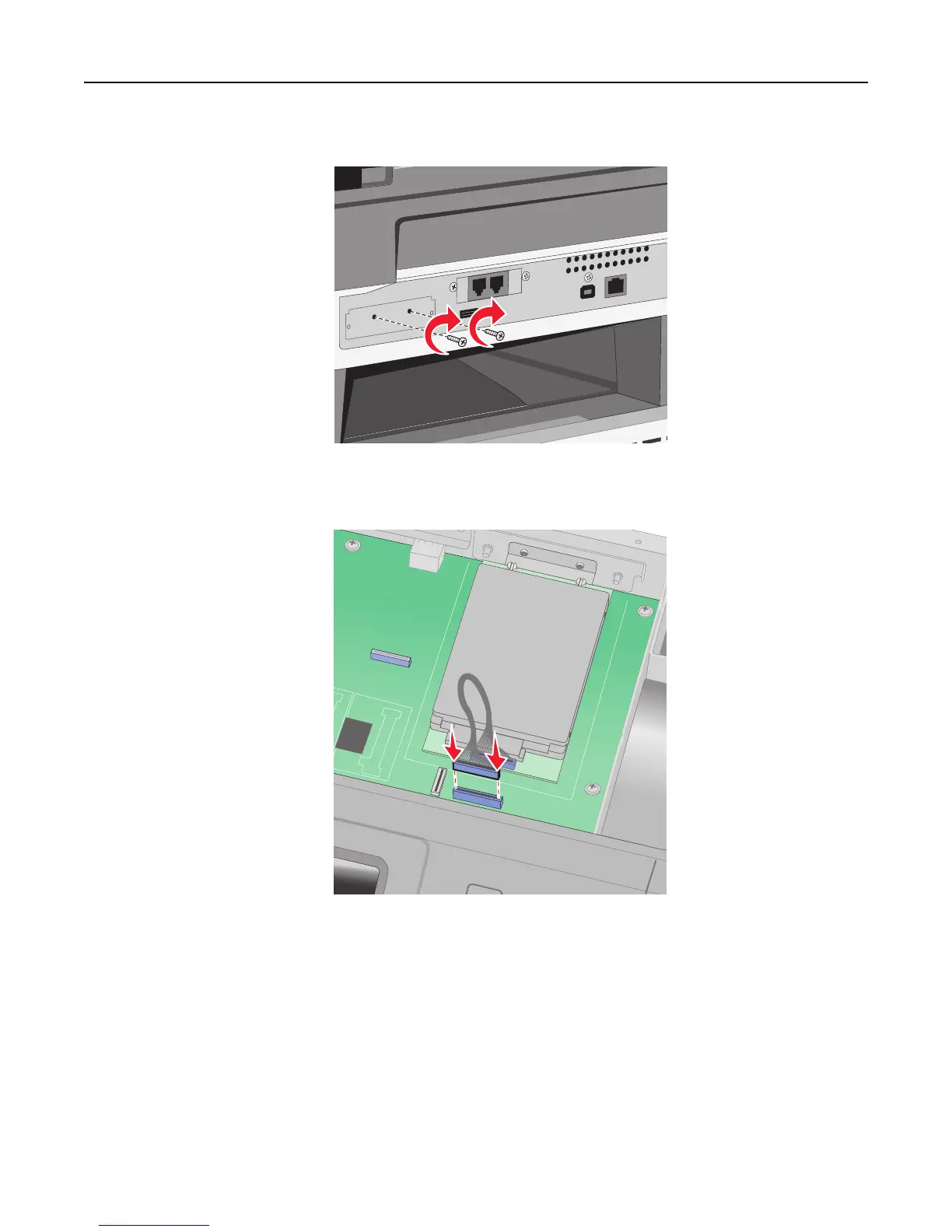

b Attach the two provided screws to secure the printer hard disk mounting bracket.

c Insert the plug of the printer hard disk interface cable into the receptacle of the system board.

Note: The plugs and receptacles are color coded.

4 Release the latch, and then close the system board door by lowering the scanner.

Additional printer setup 45
