14
Complete the hardware setup
7 Attach the operator panel cover:
a Slide the locking tabs on the
bottom of the cover into the
slots on the operator panel
housing.
b Push the cover down until the wn until the
top two tabs snap into place.
Attaching the
Quick Referencence
1 Peel the backing off of the
adhesive strip on the back of the
Quick ReferenceReference.

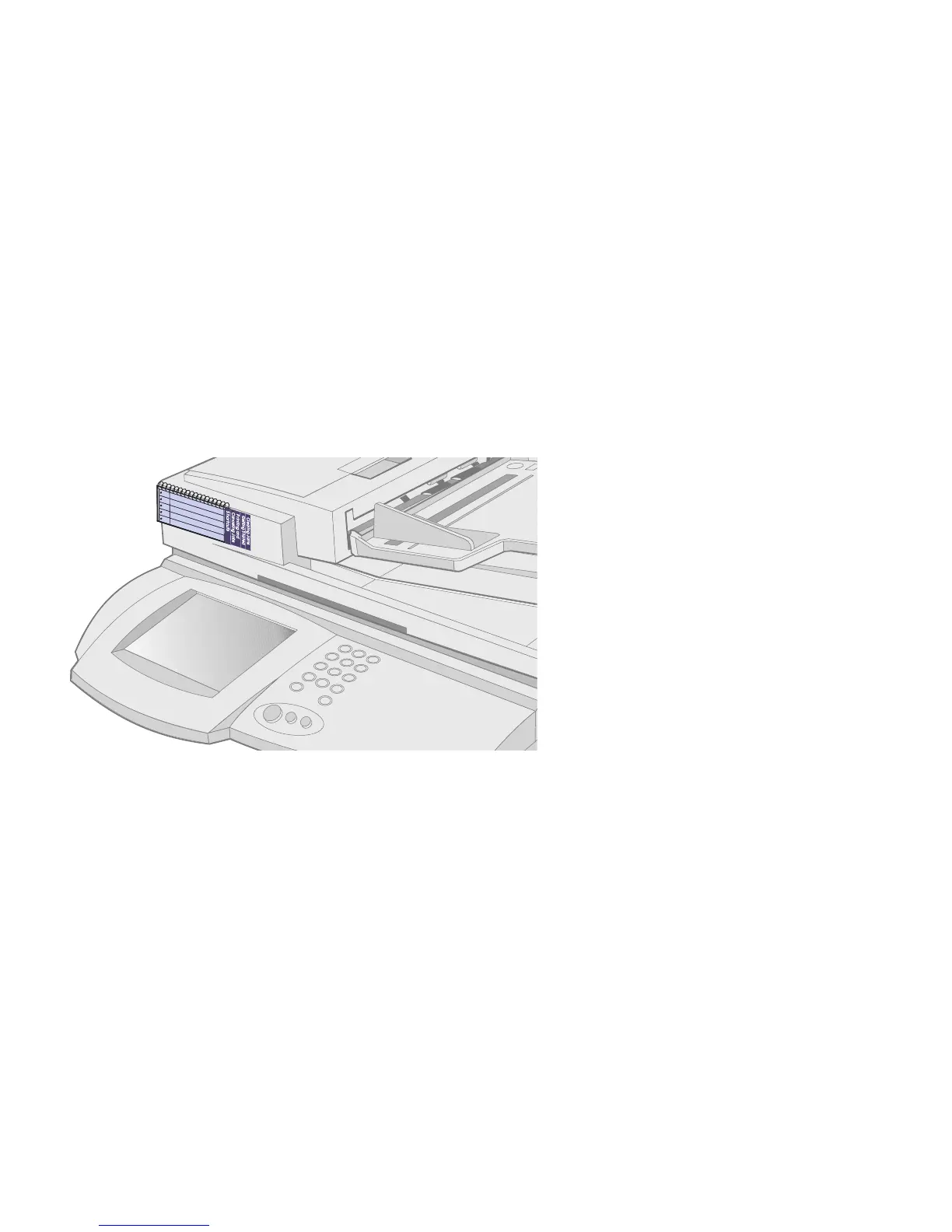

2 Press the Quick Reference into
place above the touch screen as
shown.
