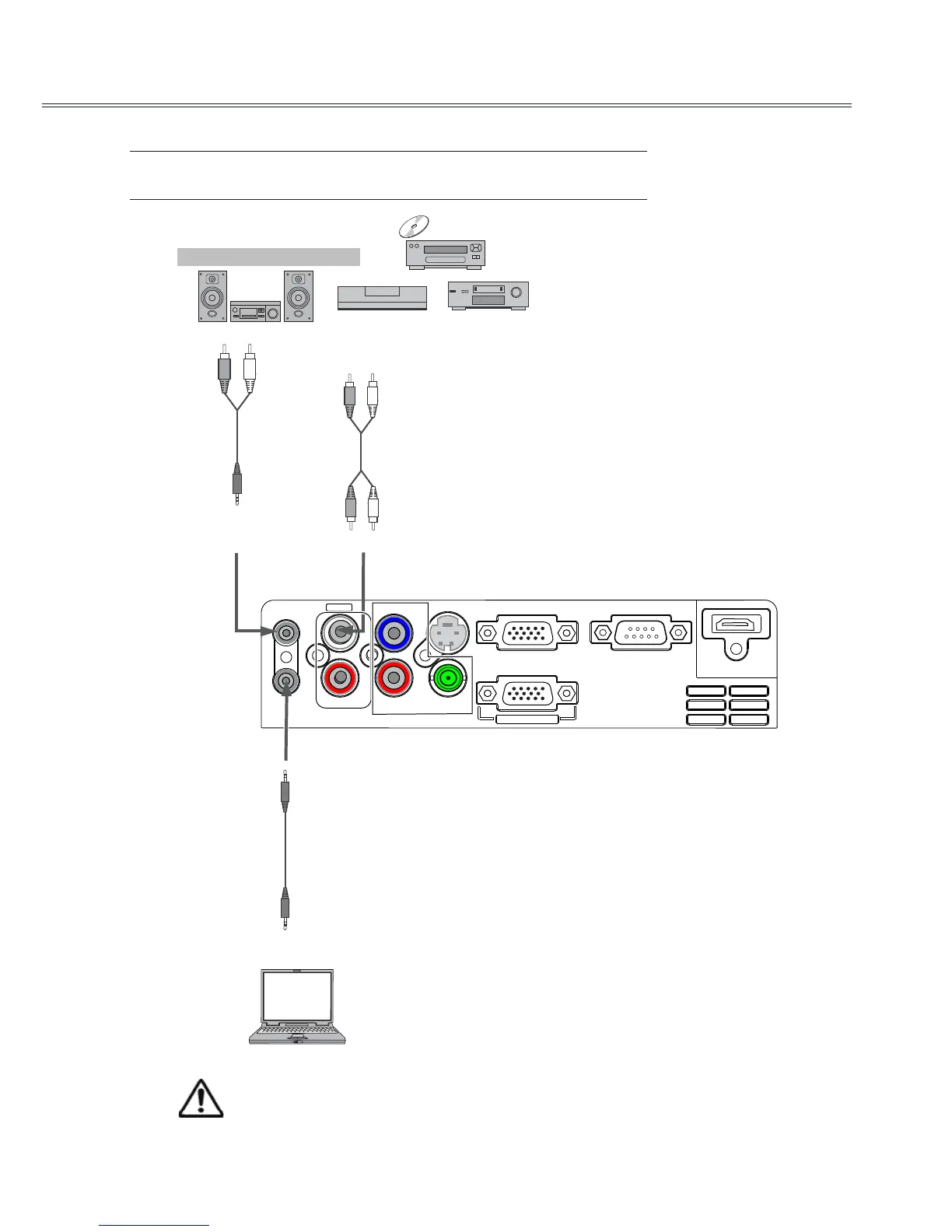

Connecting to Audio equipment
Installation
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting the cables.
Cables used for connection ( *Cables are not supplied with the projector.)
Audio cable*
HD MI
RGB OUT
VIDEO/Y
Pr/Cr
R
L
AUDIO IN
AUDIO OUT
Pb/Cb
S-VIDEO
RGB IN 2
RGB IN 1
RS-232C
MONO
Audio input
External Audio Equipment
(R) (L)
(R) (L)
Audio output
Audio output
(Stereo)
Audio cable
(Stereo)
Audio cable
(Stereo)
Note: The left and right channels are combined
when there is only the L (mono) is inserted.
Audio cable
AUDIO IN
