LG BD430 - Configuration of Terminals

61
Appendix

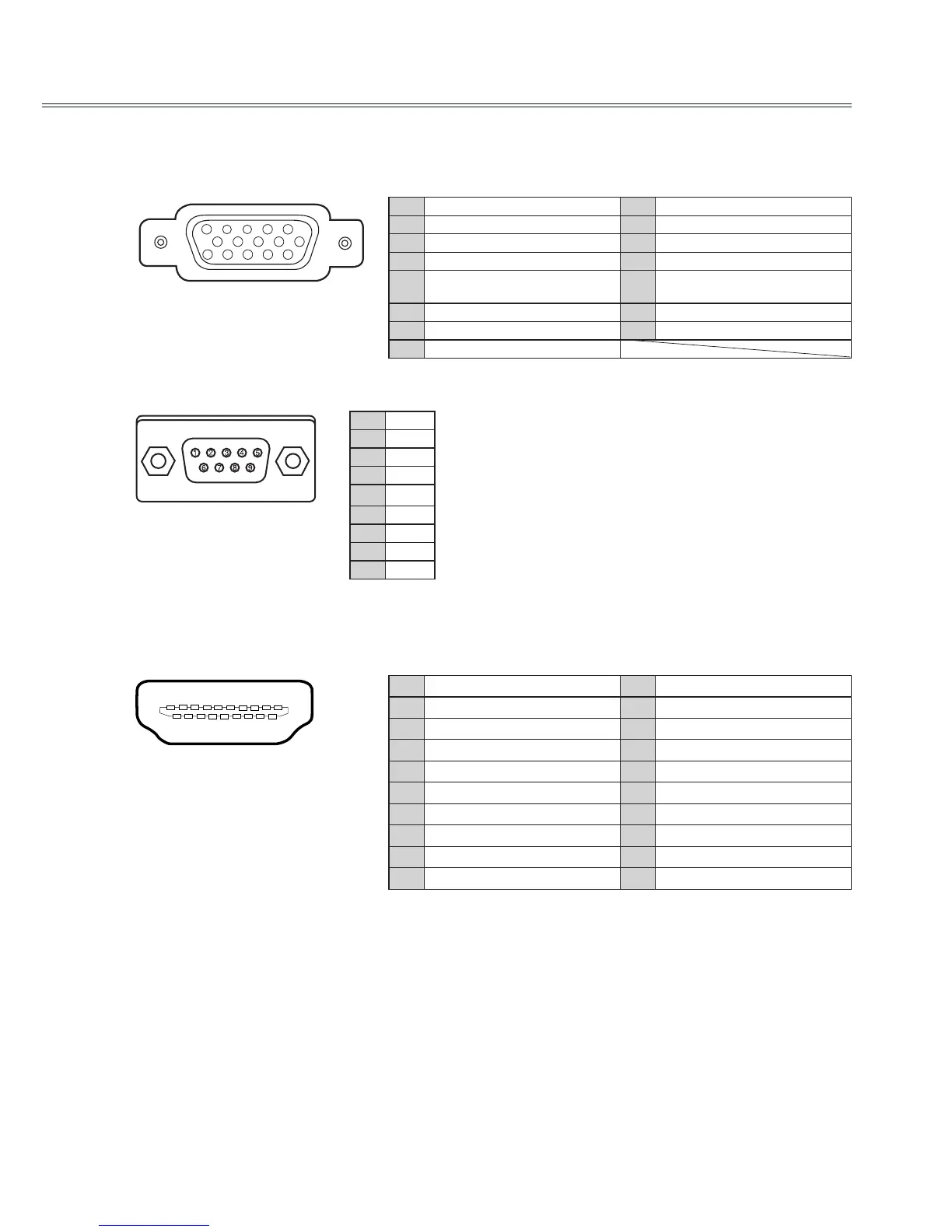

Conguration of terminals
RGB 1/RGB 2/RGB OUT (analog)
Terminal: Analog RGB (D-sub 15-pin)
5
1
2
34
10
9 678
15
14
13
1112
1 Red (Input/output) 9 -----
2 Green (Input/output) 10 Grounding (eld synchronizing)
3 Blue (Input/output) 11 Grounding
4 ----- 12 DDC data
5 Grounding (line synchronizing) 13
Horizontal synchronizing
(compound sync.) input/output
6 Grounding (red) 14 Vertical synchronizing input/output
7 Grounding (green) 15 DDC Clock
8 Grounding (blue)
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock–
3 TMDS Data2– 13 CEC
4 TMDS Data1+ 14 Reserved (N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1– 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V Power
9 TMDS Data0– 19 Hot Plug Detect
10 TMDS Clock+
1 -----
2 RXD
3 TXD
4 -----
5 GND
6 -----
7 -----
8 -----
9 -----
RS232C terminal (D-SUB-9-Pin)
HDMI PORT terminal (HDMI Type A 19-Pin)
1
246
8
9 7 5 3
10
12
14
1618
19
17 15 13 11
