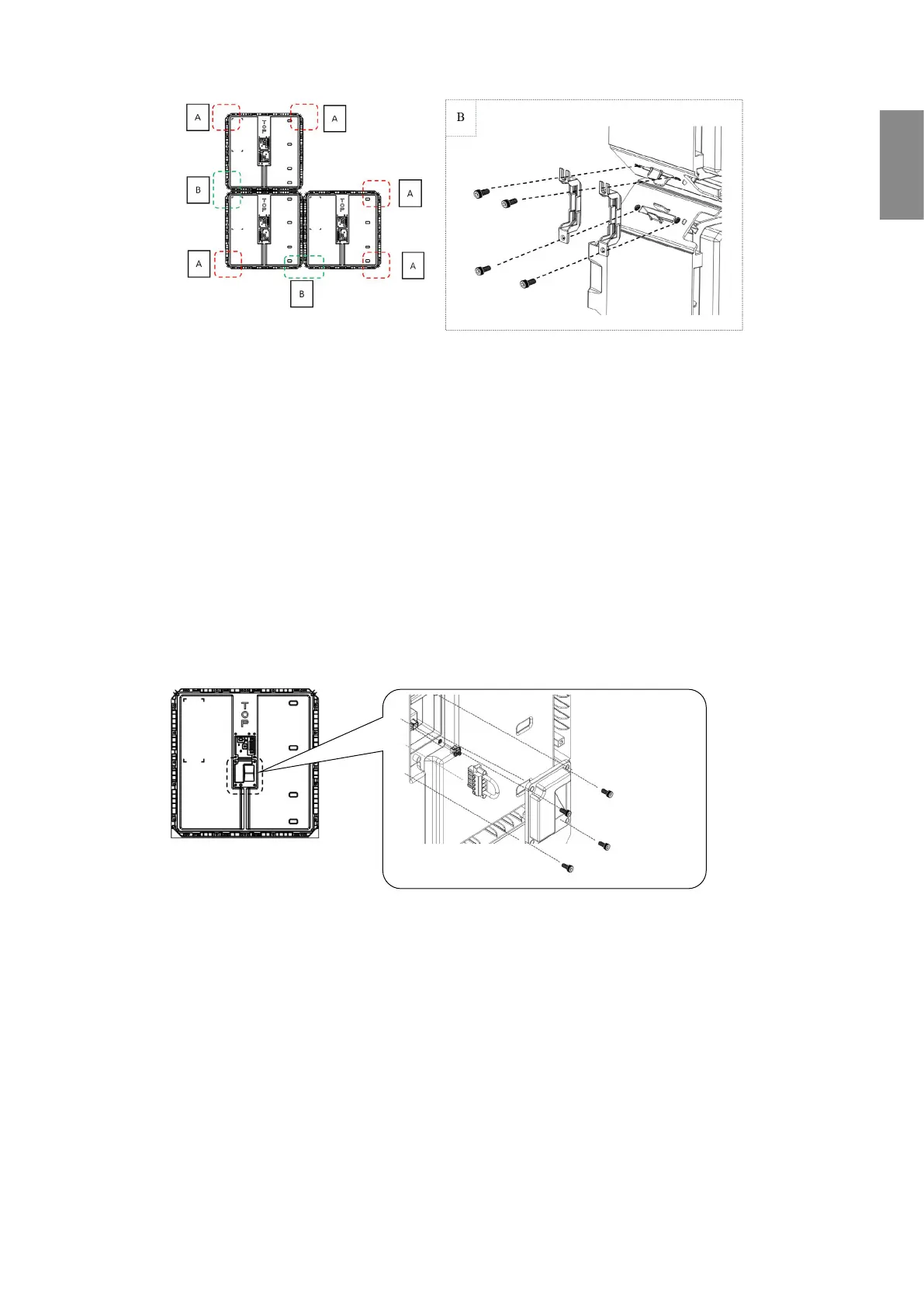

6. Once all the BMAs and BPU are installed, start the cable wiring
between the BMAs and BPU. Make sure that the cabling order is the
same as the installation order of the BMA as the Wall-mounting Layout
and the BPU is always the last one in the order.
7. Connect the Terminal Resistor, End Connector and Connector Cover
to the Bottom Terminal Block of the rst BMA in order of the ‘Wall-
mounting layout’
* Terminal Resistor, End Connector and Connector Cover are included in the BPU Bundle Package.
M6 Bolt
End Connector
Connector Cover
Terminal Resistor
To Next Page
