77
206-4272
IR IN
1
+3.5 v (VCC)
2
IR SIGNAL
(VOUT)
3
GND
3
1
2

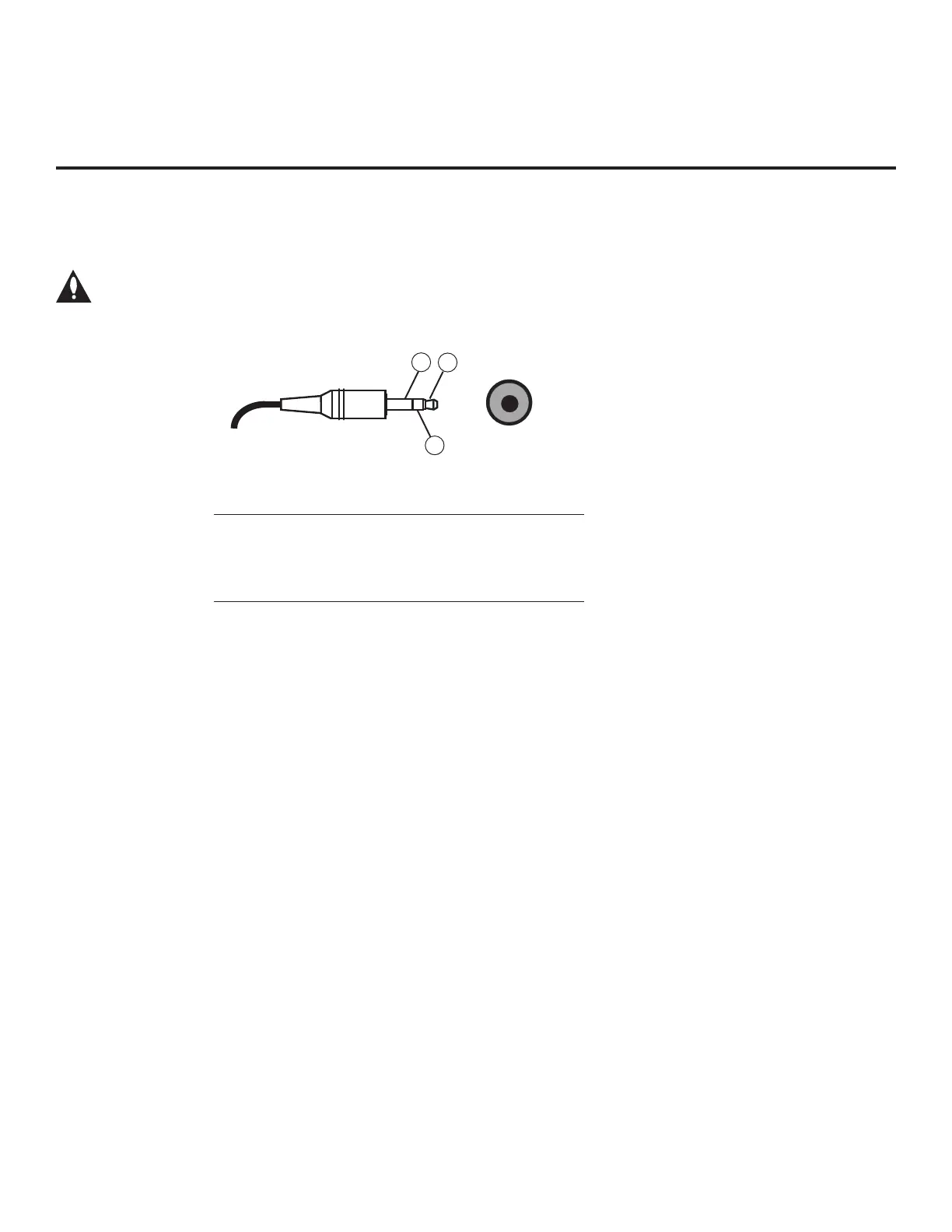

Reference: External IR Receiver Specications
The IR IN 3.5 mm stereo jack on the rear panel of the STB-3000 provides an input for an optional external
IR receiver (Example: Sung Nam Electronics EAD612731
13). The jack provides external IR VCC of 3.5
volts. Refer to the following diagram for pinout details.
Caution:
Do NOT plug in a mono connector
, as this may damage the STB.
76
78
Table of Contents
Safety Warnings
2
Important Safety Instructions
3
Table of Contents
5
STB-3000 Introduction / Setup Checklist
6
Introduction
6
Setup Checklist
6
STB-3000 Cabling Connections
7
Before You Begin
7
Connect the STB to the Display Panel
7
STB-3000 Cabling Diagram
9
Commercial Mode Overview
10
Pass-Through Mode
10
FTG Mode
11
Determining the STB Operating Mode
12
Pro:centric Operation
13
Pro:centric Interactive Menu Features
13
Pro:centric Interactive Menu Navigation
13
Pro:centric Setup
14
Setting the Video Output Resolution
15
EZ-Manager Wizard
16
Before You Begin
16
Initiate Configuration or Exit the EZ-Manager Wizard
17
STB Configuration Options
18
Zones and Room Number Assignments
18
Configure Pro:centric Settings
20
USB Configuration
24
Ez Download Utility
26
Before You Begin
26
Accessing and Using the Ez Download Utility
26
Installer Menu
30
Accessing the Installer Menu
30
Using the Installer Menu
31
Exiting the Installer Menu and Activating Settings
31
Custom Master STB Setup
40
Before You Begin
40
Clonable STB Setup Menu Features
40
Custom Master STB Setup Procedure
41
Cloning Procedures
43
Learning Configuration from a Master STB
43
Teaching Configuration to a Target STB
45
FTG File Manager Utilities Overview
49
Creating an FTG Configuration File
49
FTG File Manager Main Screen
51
FTG Channel Map Configuration Utility
52
FTG Channel Map Editor
53
FTG Installer Menu Configuration Utility
54
IP Environment Setup
55
Accessing the IP Environment Menu
55
Pro:centric Setup
55
Network Configuration
57
Pre-Loaded Applications
62
Device
63
Display Panel Specifications
65
STB Aux Input Configuration
66
Auto Input(S) Sensing Feature
67
Restoring Factory Defaults on the STB(S)
68
Using the Stb's Zoning Features
69
Using Media Share Features
73
STB-3000 Jack Panels
76
External IR Receiver Specifications
77
External Audio Line out Specifications
78
Installer Remote Typical Key Functions
79
STB Installer Remote
80
Troubleshooting
81
General Troubleshooting
81
STB Quick Check
82
Commercial Mode Check
83
Glossary of Terms
84
Document Revision History / Open Source Software Notice 85
85
