LG STB-3000 Setup Guide

78
206-4272
Reference: External Audio Line Out Specications
AUDIO
LINE OUT
3
1
2

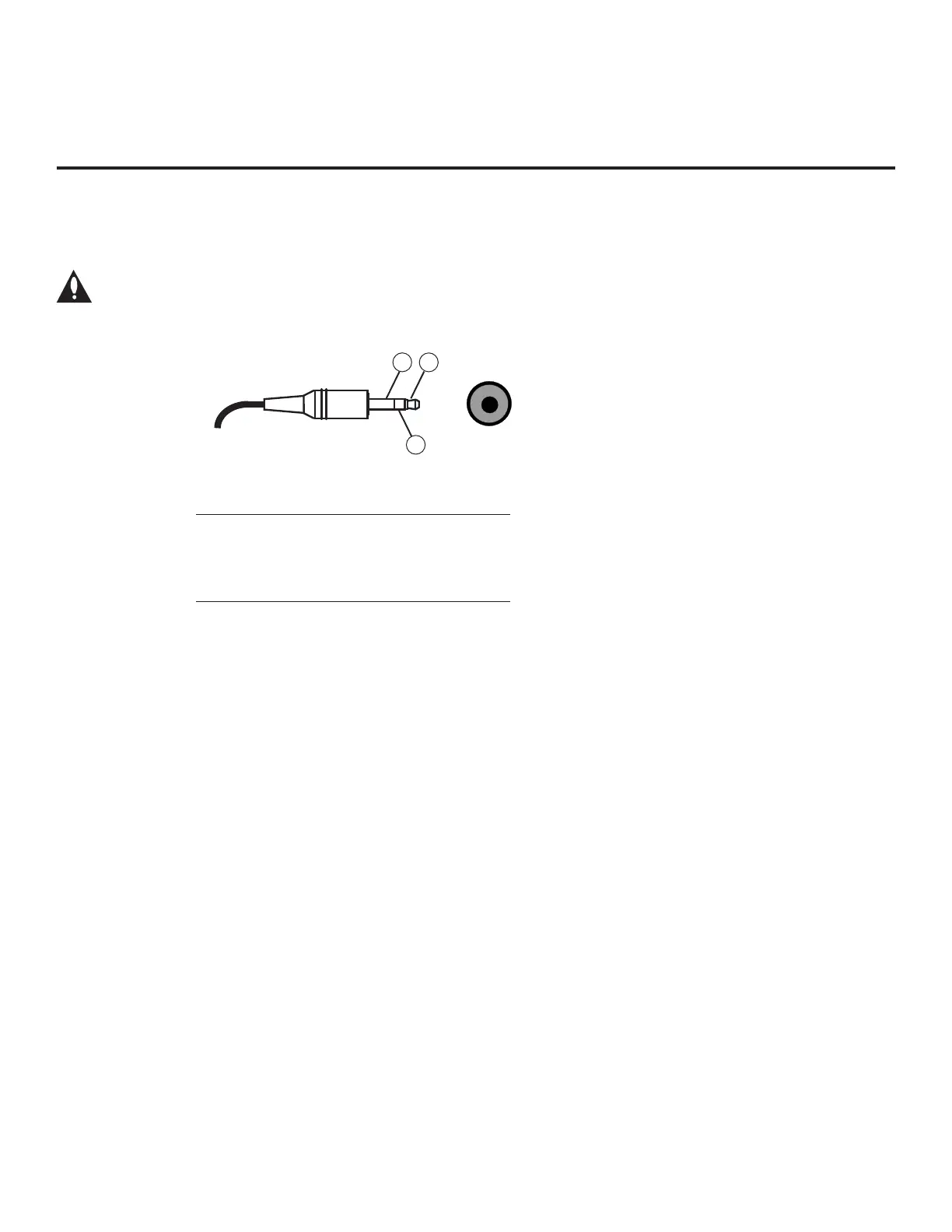

1 LEFT (Tip)
2 RIGHT (Ring)
3 GROUND (Sleeve)
The AUDIO LINE OUT 3.5 mm stereo jack on the rear panel of the STB-3000 provides stereo fixed line
level analog audio output for external audio equipment. Installer Menu item 097 AUDIO OUTPUT must be
set to 9 to make analog audio output available. Refer to the following diagram for pinout details.
Caution: Do NOT plug in a mono connector, as this may damage the STB.
