9
206-4272
STB-3000 Cabling Connections (Cont.)
IN 1
(ARC)
IN 2
USB IN 2
USB IN 1
OUT
LAN
DIGITAL
AUDIO
IR IN
SERVICE
AV IN
AUDIO
LINE OUT
ANTENNA/
CABLE IN
STB-3000 Front Panel
STB-3000 Rear Panel
EXT MPI
CONTROL
RS-232C
TELEVISION
CONTROL
POWER
MPI/MTI
TELEVISION
CONTROL
c) & d) Complete STB Power
and Antenna/Cable connections.
b) Connect HDMI OUT
on STB to HDMI IN on
display panel. **
a) Connect RS-232C
TELEVISION CONTROL to LG
Public Display or Commercial
Monitor display panel DB9
RS-232 connector. *
* Only one Television/Display Control connection should be used. The proper connection depends on
the type of display panel to be controlled. Also, note that on early STB-3000 models, the RS-232C
TELEVISION CONTROL jack is labeled “DISPLAY CONTROL 1” and the MPI/MTI TELEVISION
CONTROL port is labeled “DISPLAY CONTROL 2.”
** The STB default conguration automatically sends Television/Display Control commands to switch the
connected display panel to its HDMI1 input.
a) Connect MPI/MTI
TELEVISION CONTROL to LG
Hospitality display panel MPI
port or to commercial non-LG
display panel MTI (DATA) port. *

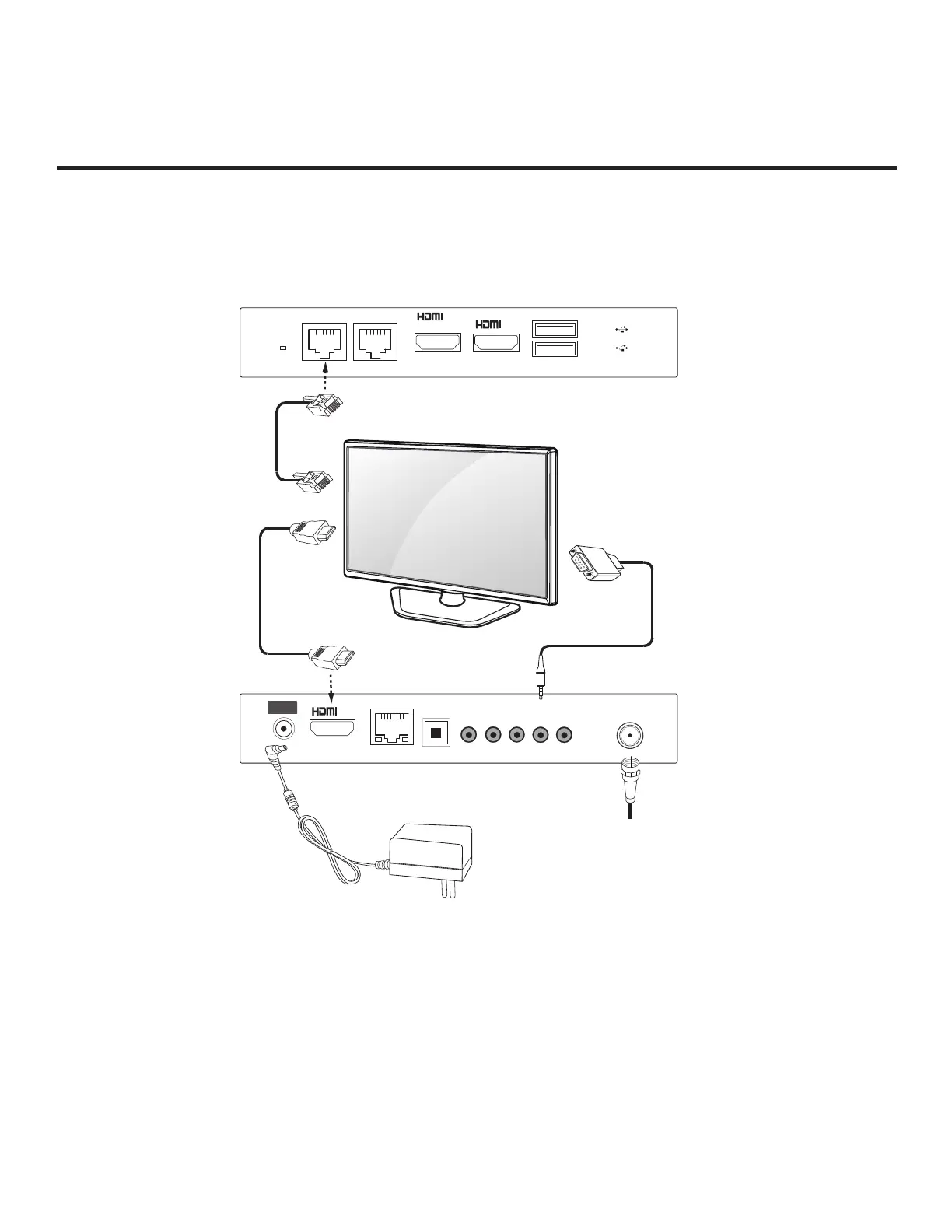

STB-3000 Cabling Diagram
See also step 2 of procedure above.
