GENERAL INFORMATION
ENGLISH
(unit : mm)
5
4
3
1
7
6
2

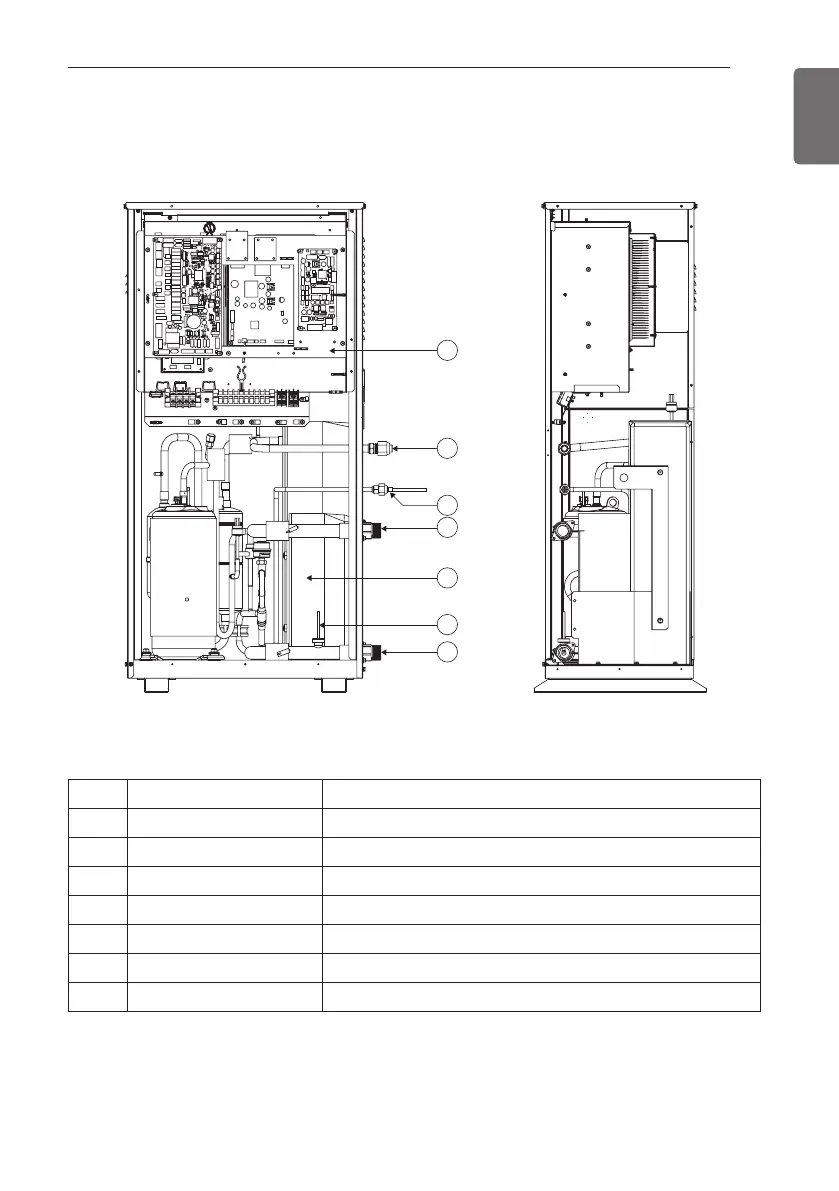

Indoor unit : Internal
No Name Remark
1 Leaving Water Pipe Male PT 1 inch
2 Entering Water Pipe Male PT 1 inch
3 Refrigerant Pipe Ø 9.52 mm
4 Refrigerant Pipe Ø 15.88 mm
5 Control Box PCB and terminal blocks
6 Flow Switch Minimum operation range at 15 LPM.
7 Plate Heat Exchanger Heat exchange between refrigerant and water
Description
