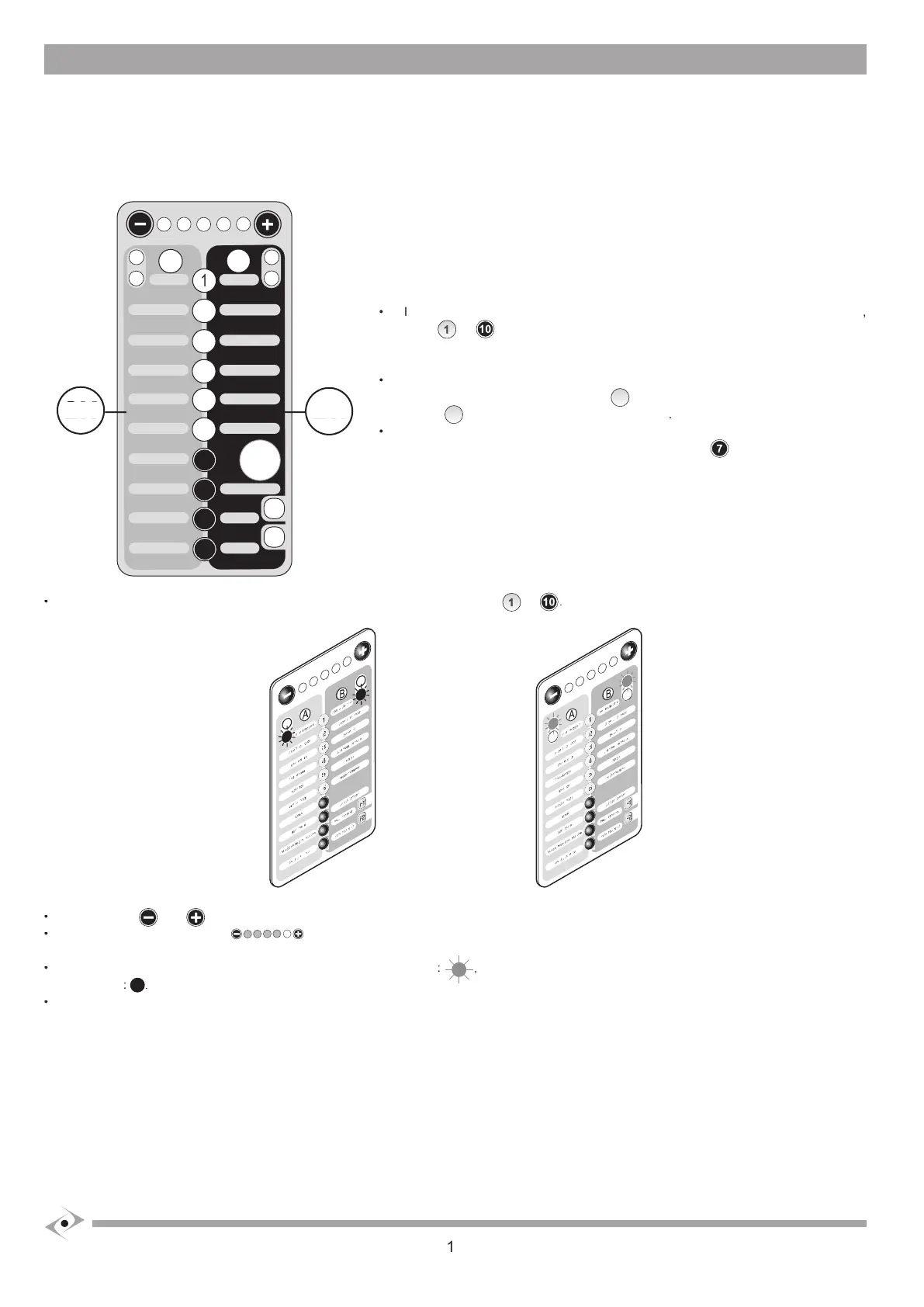

Description of the keyboard
The keyboard on the control unit makes it possible to set all the functions necessary for a safe and controlled functioning of the automation.
t is constituted by a membrane keyboard divided by a central column of keys
nto two vertical areas: the right-hand keyboard (black/blue)
and the left-hand keyboard ( grey/yellow).
memorises certain operation parameters.
he selection of the right or left keyboard takes place by pressing one of the two buttons
activates the TERMINAL STRIP
; selects the TERMINAL STRIP
eyboard de-selection takes place automatically after a certain interval of time from
he last key pressed with the exception of the
active until another function is selected.
fl ash alternately, it is possible to set parameters
are used to vary the values or parameters.
he horizontal row of red LEDs
; from 1 to 5 indicates the value set for a given parameter: the more LEDs lit, the higher the parameter value.
They are also used as a status indicator for certain parameters.
he lateral red LEDs indicate a non-set parameter status if they fl ash
nd they indicate the detection of the stop plate signal (right or left) when
The lateral green LEDs indicate a parameters set or correct function status according to the keyboard selected.
