The background of the USB modes, connected USB devices, displayed information can be understood easier
by presenting examples.

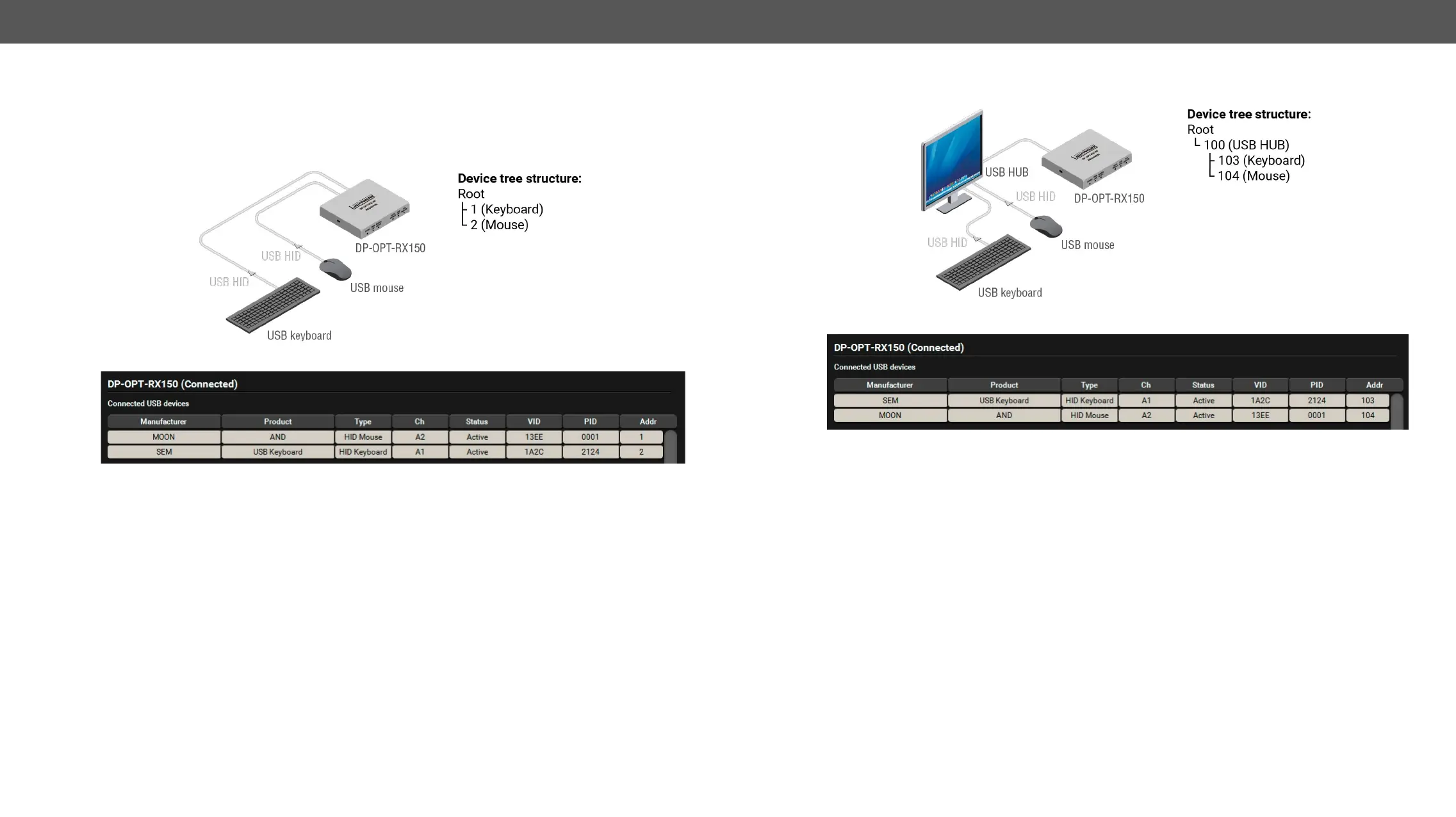

In a simple case a keyboard and a mouse are connected to the receiver.
In Transparent mode both devices are operable.
In Conguration mode only one of them is available (as seen on the screenshot), the keyboard on channel A1.
The second row (the mouse) is blinking, showing that the device is not available.
The HUB (with 4 available USB ports) is built into the monitor and connected to the receiver (the address of
the HUB is 200). The keyboard is connected to the 2nd port (Addr. 202) and the mouse is connected to the
4th port of the HUB (Addr. 204).
In Transparent mode both devices are operable.
In Conguration mode only one USB HID device is available (as seen on the screenshot), the keyboard on
channel A1. The second row (the mouse) is blinking, showing that the device is out of operation currently –
due to the USB mode.
