2. Product Overview DP-OPT-TX150, DP-OPT-RX150 – User's Manual 9
DP-OPT-TX150

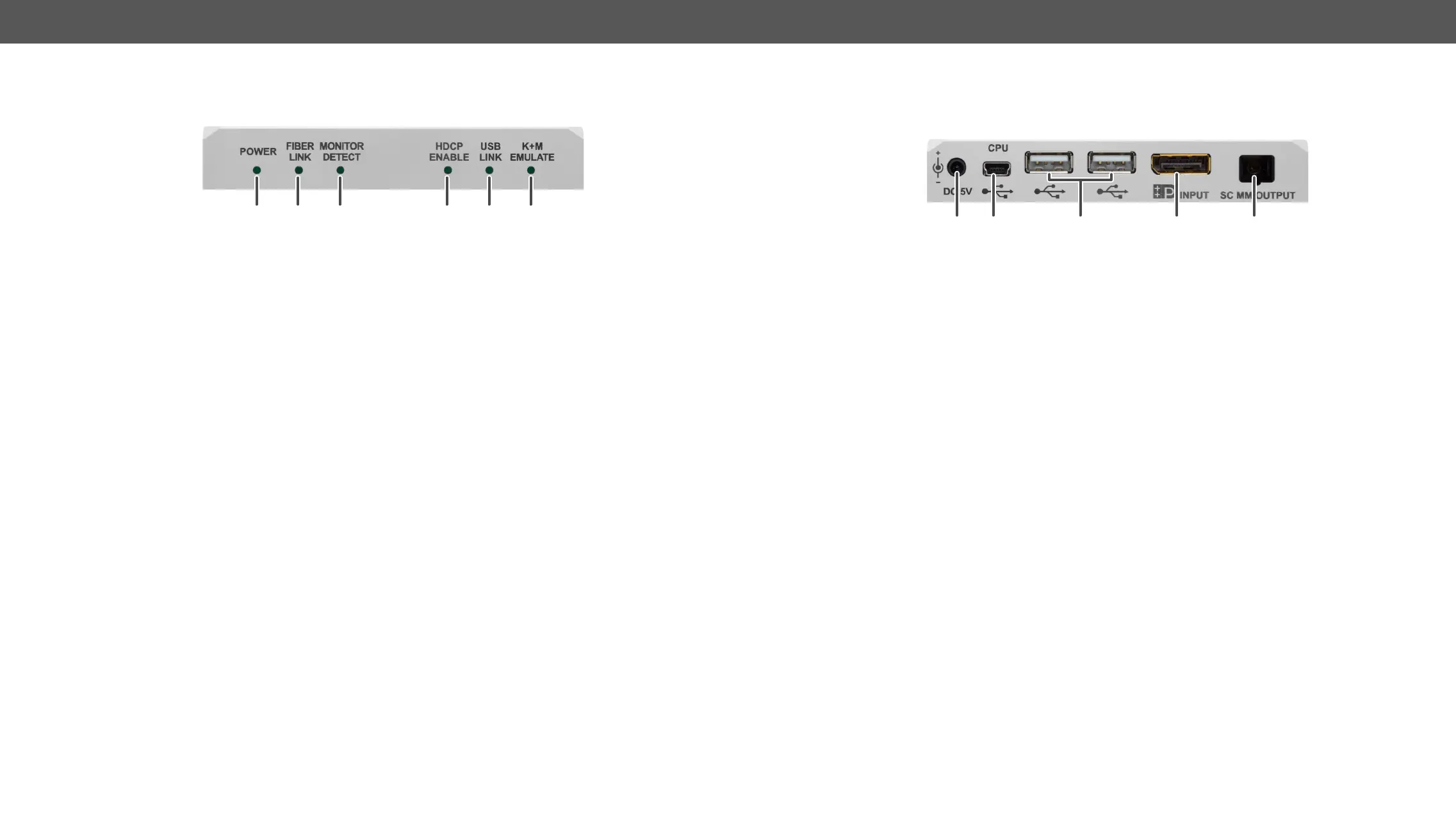

Front View
1
POWER LED
▪ ON: the unit is powered on.
▪ BLINKING: an error has occurred and device is out of normal operation, or it is in bootload mode
2
FIBER LINK LED
▪ ON: the link is active between the extenders and ready to use.
▪ BLINKING: is no connection between the extenders.
3
MONITOR LED
▪ ON: a sink device is connected to the output port of the receiver.
4
▪ ON:
▪ OFF:
setting, see the section.
5
USB LINK LED
▪ ON: HID extension is active.
▪ BLINKING: the USB channel is ready to use but HID extension is not active (e.g. there is no USB HID
device connected to the receiver or the computer is powered off).
▪ OFF: the USB channel between the extenders is not ready.
6
K+M EMULATE LED
▪ OFF: the transmitter is in transparent USB mode (default).
▪ BLINKING: USB Modes section for more
information.
1 2 3 4 5 6
Rear View
1
DC connector
mountable power supply can also be used (PSUx10-200 or PSUx20-400).
2
USB mini-B connector
3
Local USB-A ports The transmitter has a built-in USB HUB. These local USB 2.0 ports can be
used as extra USB ports connected to your computer but without extension.
4
DisplayPort input DisplayPort 1.1a input connector. Applied cable shall not be more than 2 m.
See the DP Input and Output Ports section for more information about the
connector.
5
SC Fiber connector
1 2 4 53
