Lightware HDMI-OPT-TX200R User Manual

HDMI-OPT-TX and RX family
User’s Manual
Section 3. Controls and connections Page 15 / 60

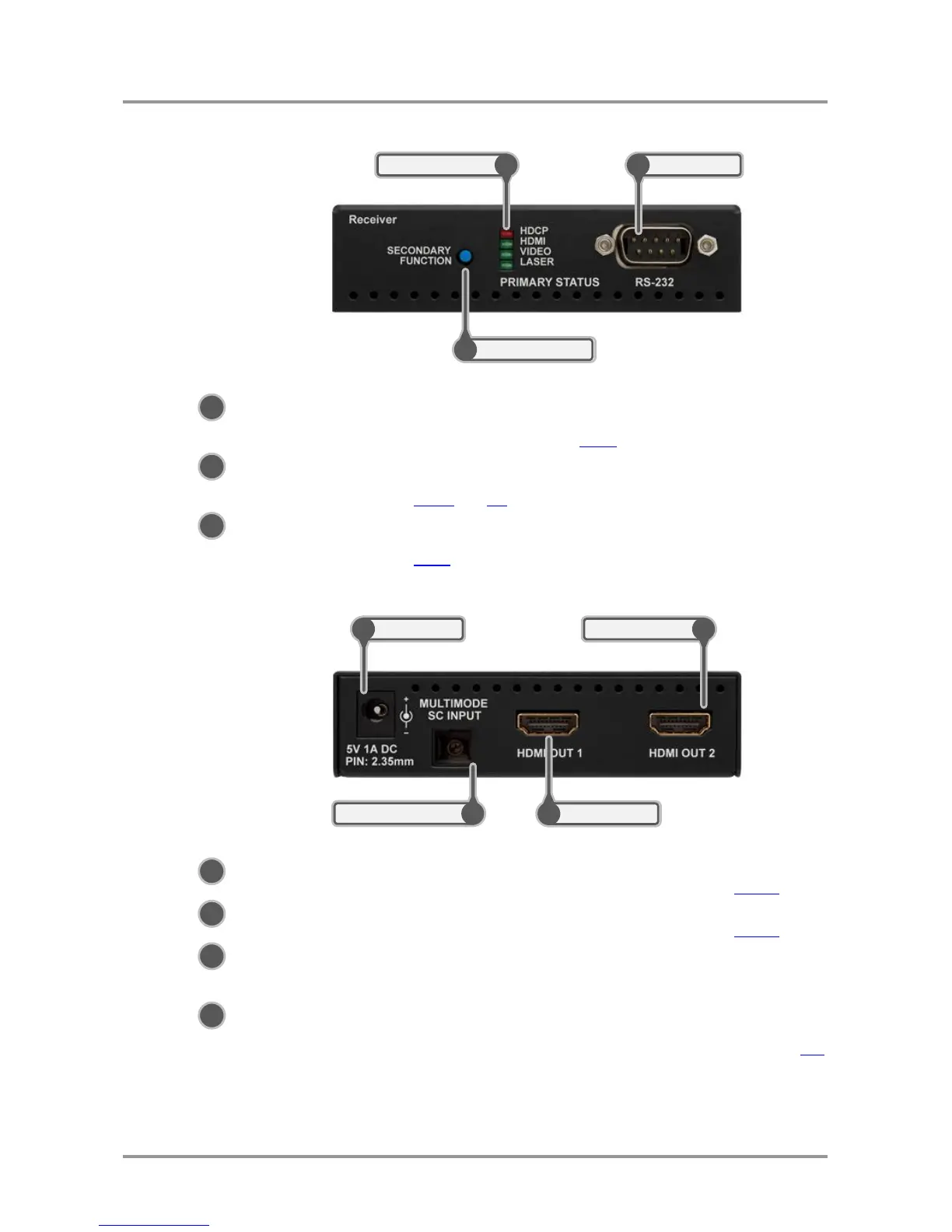

3.3. HDMI-OPT-RX200R front view
Figure 3-1. Front view
Status LEDs The LEDs give feedback about the state of units and video
signal. For more information about names and meanings of the
Status LEDs see chapter 4.4.1.
RS-232 Port 9-pole D-sub male connector. Connect a serial cable between
the receiver unit and the desired serial device. See sections
3.13.2 and 4.2 for more information about usage of serial port.
Function Button Toggles the LED functions between PRIMARY (SOLID) and
SECONDARY (BLINKING). For more information see chapter
4.4.1.
3.4. HDMI-OPT-RX200R rear view
Figure 3-2. Rear view
HDMI OUT 1 Connect one HDMI cable between the receiver and the first
display device. For more information see chapter 3.13.1.
HDMI OUT 2 Connect one HDMI cable between the receiver and the second
display device. For more information see chapter 3.13.1.
SC Fiber Input Connect a multimode single fiber optical cable between the
receiver and the transmitter (or a Lightware Hybrid Modular
Matrix equipped with optical output card).
DC +5V in Connect the output of the supplied +5V DC power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source. For more information see chapter 4.3.
Function Button
4
RS-232 Port
1
STATUS LEDs
2
HDMI OUT 1
1
HDMI OUT 2
2
DC +5V in
4
SC Fiber Input
3
2
3
1
1
4
2
3
