Lightware HDMI-OPT-TX200R User Manual

HDMI-OPT-TX and RX family
User’s Manual
Section 3. Controls and connections Page 19 / 60

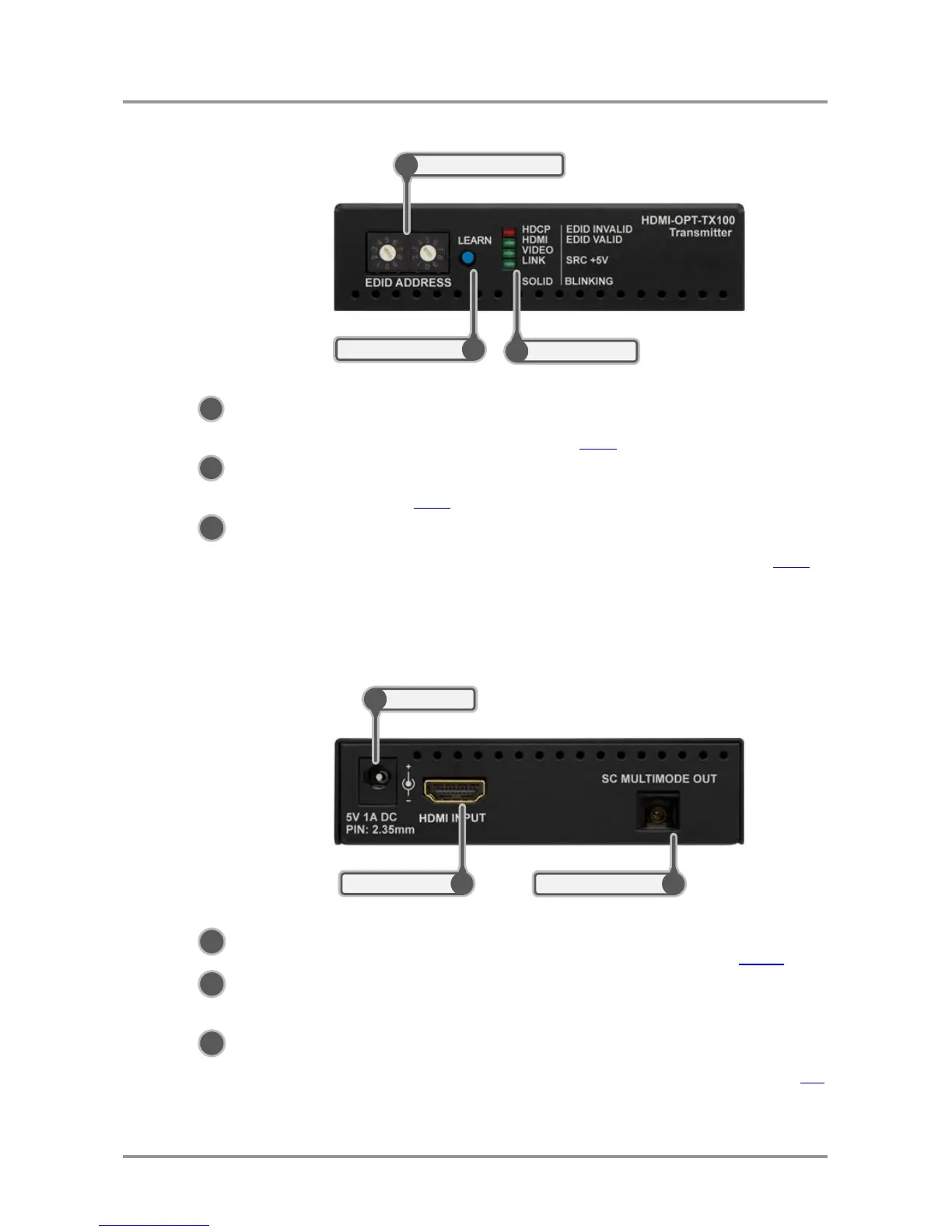

3.9. HDMI-OPT-TX100 front view
Figure 3-7. Front view
Status LEDs The LEDs give feedback about the state of units and video
signal. For more information about names and meanings of the
Status LEDs see chapter 4.4.1.
LEARN button Toggles the LED functions between PRIMARY (SOLID) and
SECONDARY (BLINKING). For more information see chapter
4.4.1.
Rotary switches The rotary switches select one of 99 addresses. EDID
memories #1..#50 contain factory presets and #51..#99 are
user programmable. For more information, see chapter 4.4.3.
Info: Use a flat head screwdriver that fits into the rotary switches’ actuator. Avoid the use of
keys, coins, knives and other sharp objects because they might cause permanent
damage to the rotary switches.
3.10. HDMI-OPT-TX100 rear view
Figure 3-8. Rear view
HDMI INPUT Connect one HDMI cable between the HDMI source and the
transmitter unit. For more information see chapter 3.13.1.
SC Fiber Output Connect a multimode single fiber optical cable between the
transmitter unit and the receiver unit (or a Lightware Hybrid
Modular Matrix equipped with optical input card).
DC +5V in Connect the output of the supplied +5V DC power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source. For more information see chapter 4.3.
STATUS LEDs
2
EDID ADDR. Rotary
3
LEARN button
1
DC +5V in
3
SC Fiber Output
2
HDMI INPUT
1
2
1
2
3
1
3
