Step 5. Save the EDID to a file.
Step 6. Upload the saved EDID into User Memory

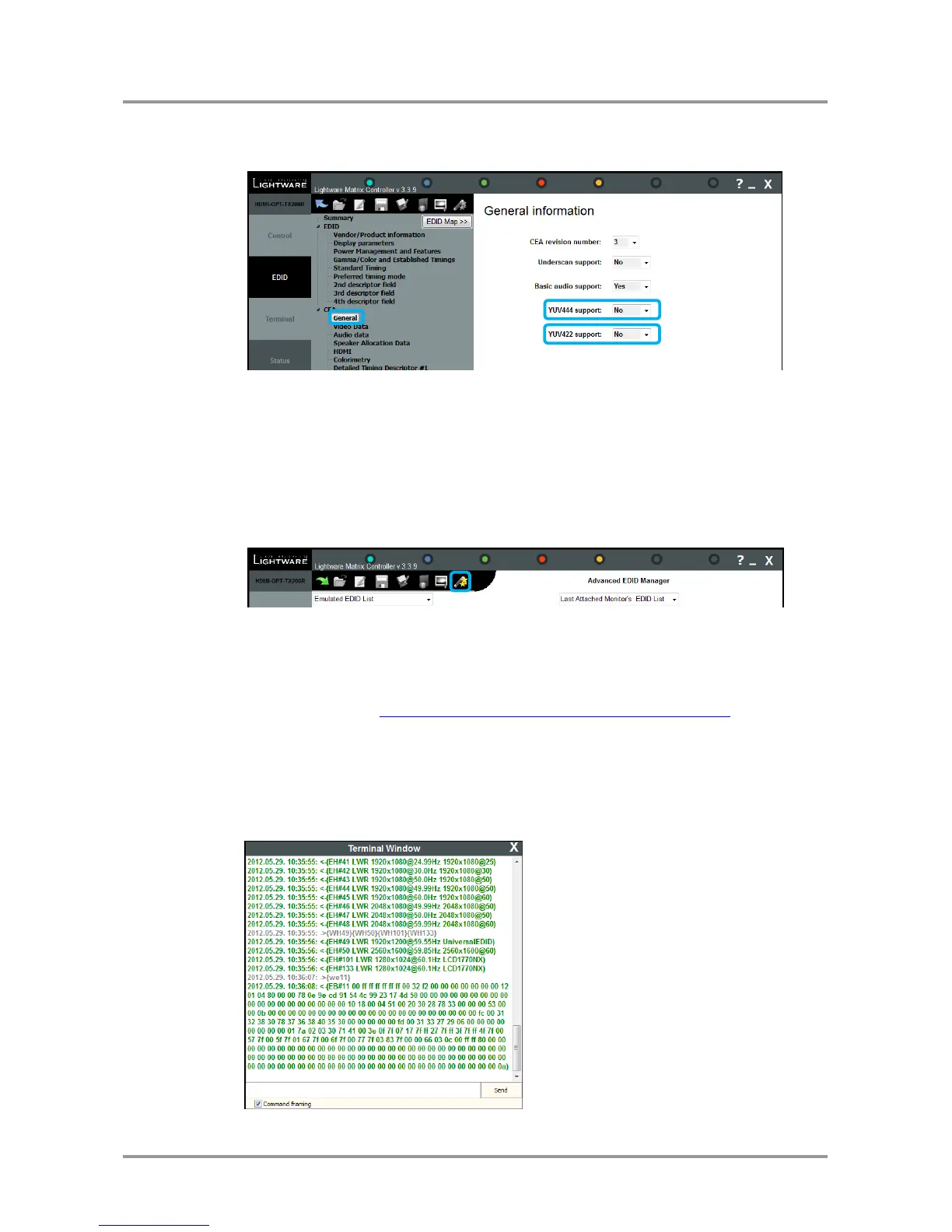

Figure 5-3. General settings
5.5.4. Easy EDID Creator
Since the above mentioned advanced editor needs more complex knowledge about
EDID, Lightware introduced a wizard-like interface for fast and easy EDID creation. With
Lightware Easy EDID Creator it is possible to create custom EDIDs in four simple steps.
By clicking on the wizard icon, the Easy EDID Creator opens in a new window.
Figure 5-4. Open Easy EDID Creator
For further information, see the user’s manual of Easy EDID Creator.
Info: Software & manual: http://www.lightware.eu/index.php/support-/downloads
5.6. Terminal menu
This general-purpose terminal is intended mainly for test and debug purposes. After a
successful connection is established with a
device it can be used via the COM1 serial
connection.
Commands are automatically surrounded by
framing brackets by default. Every sent
command and every received response gets
an arrow (>> or <<) prefix, and has different
font colors in order to help distinguishing.
If the “Command framing” checkbox is
unchecked, you can send multiple
commands together, however in this case
you have to type in the framing brackets
manually.
Figure 5-5. Terminal window
