5. Software Control – Using Lightware Device Controller HDMI20-OPTC series – User's Manual 34
Creating an EDID
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID, Lightware

create custom EDIDs in four simple steps. By clicking on the Create button below the left panel, Easy EDID
Creator is opened in a new window.

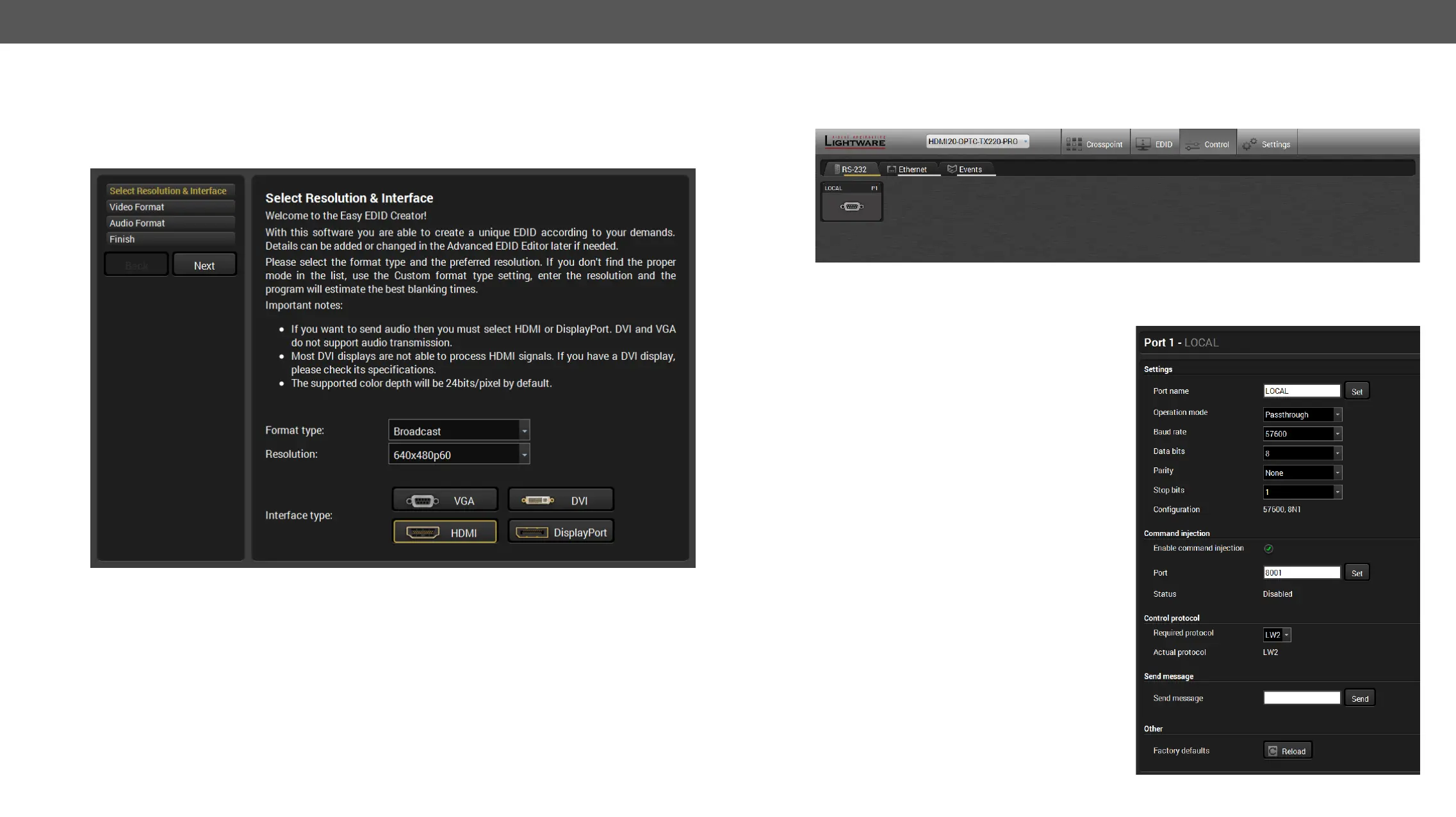

Easy EDID Creator Wizard
Control Menu
RS-232 Tab
RS-232 tab in Control menu
The following settings and functions are available on the local RS-232 port:
▪ Port name
▪ Operation mode: Pass-through, Control,
Command Injection, (for more details see Serial
Interface section);
▪ Baud rate: 4800, 7200, 9600, 14400, 19200,
38400, 57600, 115200;
▪ Data bits: 8 or 9;
▪ Parity: None, Odd, or Even;
▪ Stop bits: 1, 1.5, or 2;
▪ Command injection: enable or disable;
▪ Command injection port number;
▪ 
▪ Message sending via serial port;
▪ Reloading factory defaults (see the Factory
Default Settings section).




