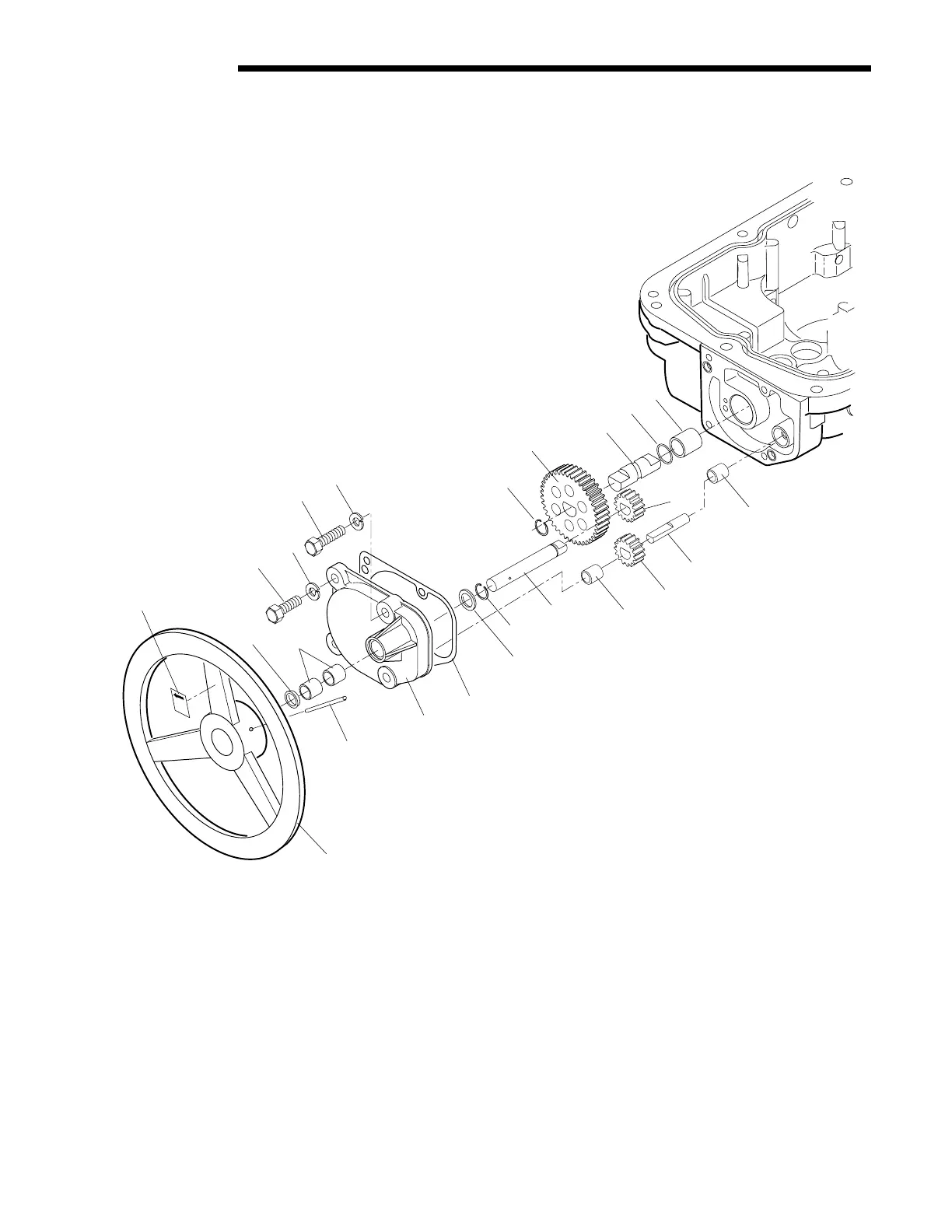

Figure 6.11 – LY 3001 Handwheel Assembly

119

115

116

112

146

136

137

Note: Refer to certified data

for construction purposes

01-458-0019-4 Rev A.

134
