Limitorque SMB-5T - Figure 7.3 - SMB-000 Exploded View

SMB/SB Installation and Maintenance Manual 140-11000 • July 2003

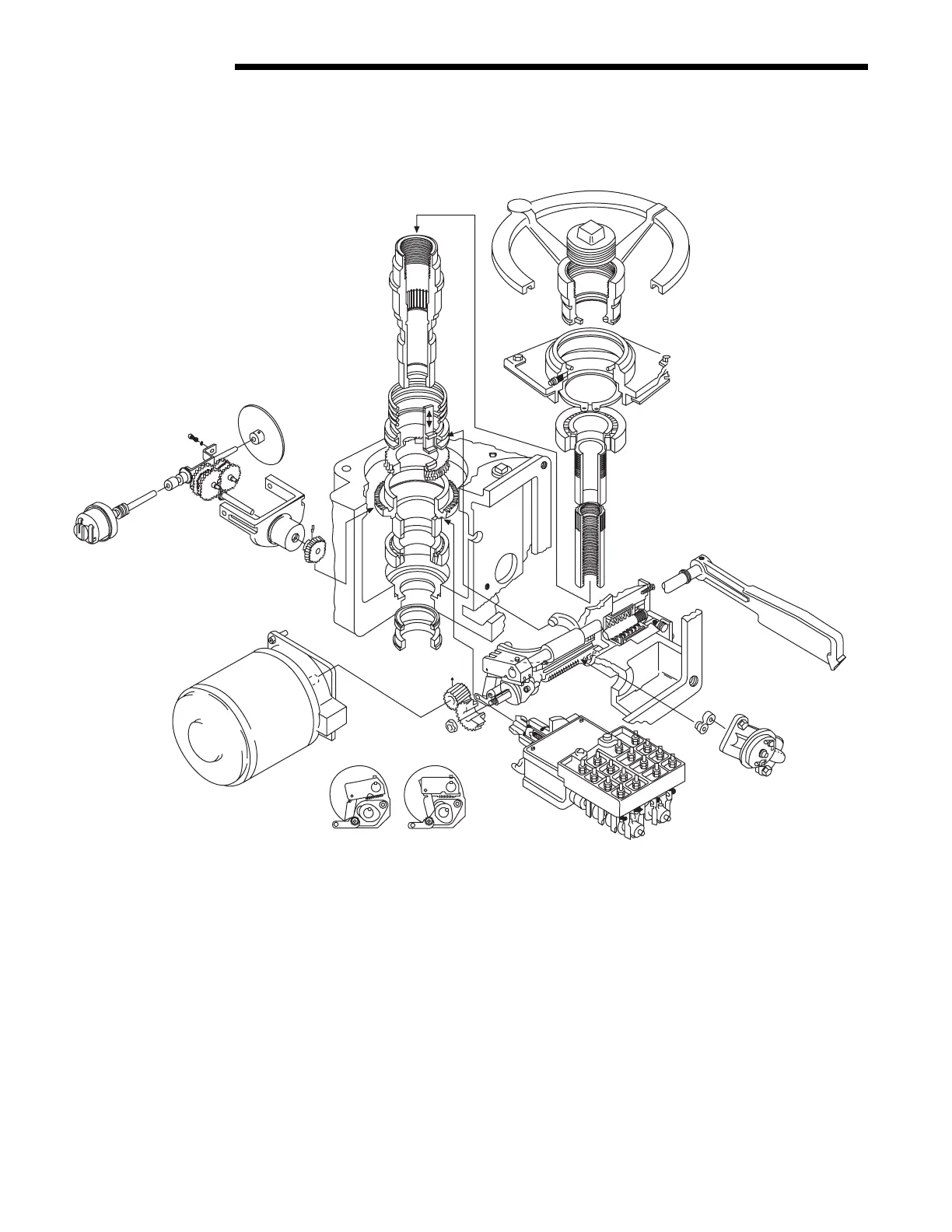

Figure 7.3 – SMB-000 Exploded View
7-6
Flow Control Division
Limitorque Actuation Systems
H.W. operation
position
Motor operation
postion
Local dial
indicator
Slidewire
transmitter
08-403-0001-4
