SMB/SB Installation and Maintenance Manual
140-11000 • July 2003
7-15
Flow Control Division
Limitorque Actuation Systems

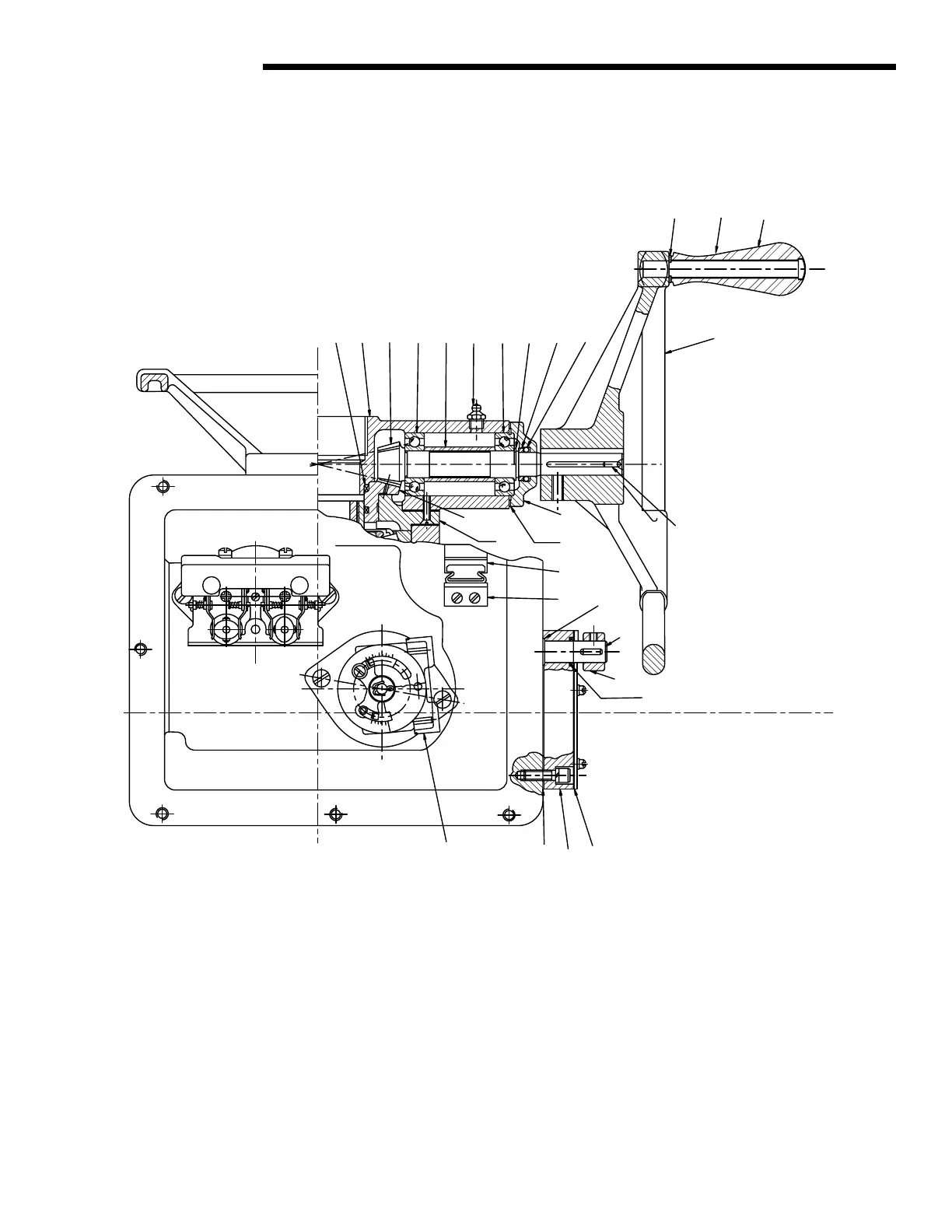

Figure 7.7 – SMB-00 Parts Diagram – Side Mounted Handwheel Detail
CLOSE
OPEN
1
2
3
3
4
5
2
1
79
5
34
116
3
56
83
100
98
97
106
77
23
70
114
96
101
109
102
113
110
111
103
115
99
104
105
112
156
01-403-0121-4
46
48
