Form 403595 Page Number - 10
METER OPERATION, EPM MODE
The meter can be put in EPM Mode for start up purposes. Refer to the Supervisor’s Instruction
Manual for key sequence.
The AUTO icon displays, indicating the meter is in the EPM Mode. The solenoid valve unlocks
and the meter can now be used as a Standard Preset Batch Meter.
NOTE:
The keypad Auto button is used to toggle between Manual Mode and Batch Mode.
Manual Mode
1. Pull the trigger to begin the flow.
2. The display shows the amount dispensed.
3. When the desired amount has been dispensed, release the
trigger to stop the flow.
4. Press button once to reset the counter display to zero.
Batch Mode
To enter the Batch Mode from the Manual Mode press the meter
button. The screen on the left appears. When in the
Batch Mode, the batch quantity displays in the lower, right hand
corner of the screen.
The meter is now in Batch Mode.
1. Change the batch size by pressing the
, and/or buttons.
a) Press the 10 button to increase the batch amount in increments of 10 units.
b) Press the 1 button to increase the batch amount in increments of 1 unit.
c) Press the 0.1 button to increase the batch amount in increments of 0.1 units.

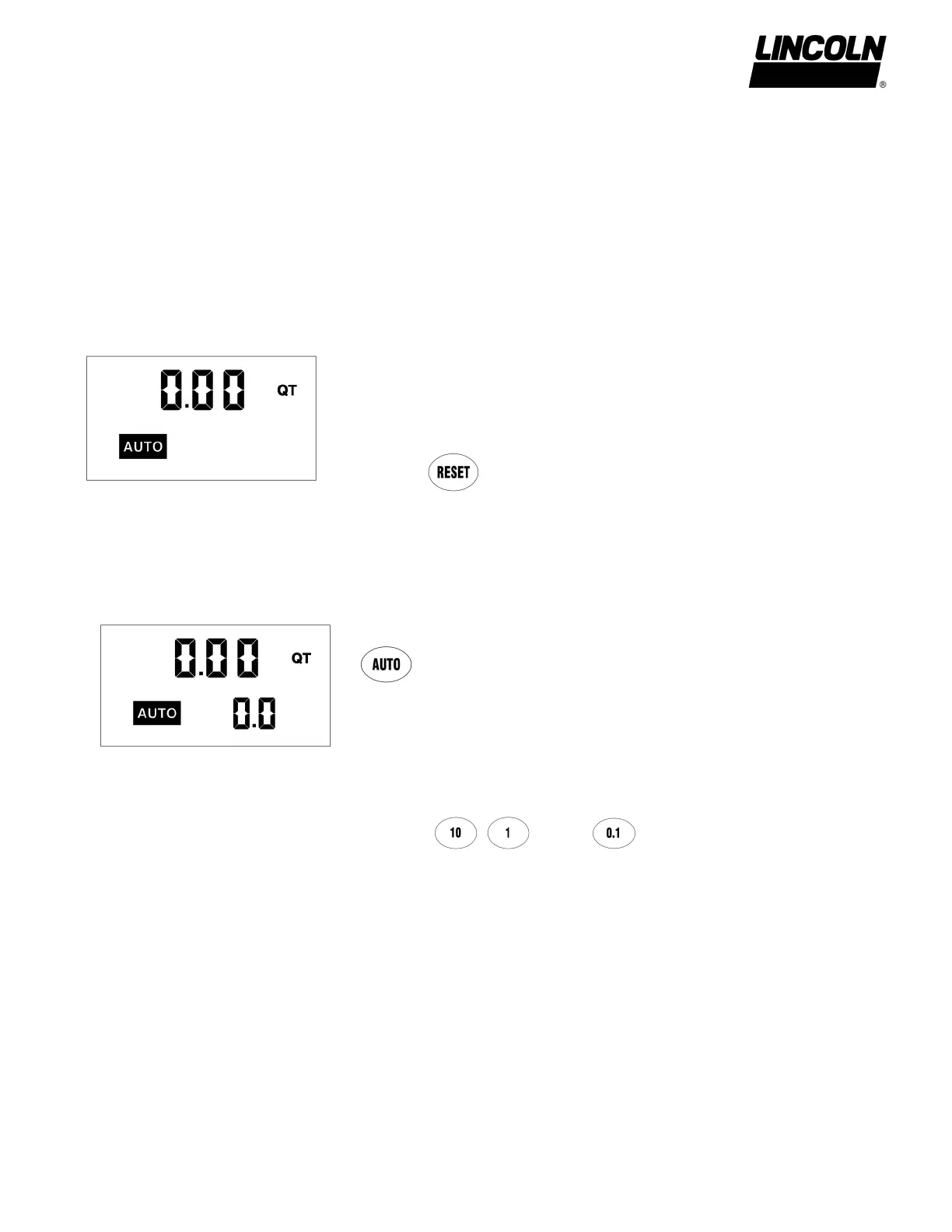

EPM Manual Mode
EPM Batch Mode
