Form 403595 Page Number - 8
3. Pull the trigger to the full, up, position to begin the fluid flow.
• The solenoid valve automatically locks the dispensing valve in the full open position. The
trigger falls back to the closed position.
• It is not necessary to continue to hold the trigger.
• After the batch quantity is dispensed, the flow automatically shuts off.
4. The user has the option to top off the tank after the
batch quantity has been dispensed.
• To top off, pull the trigger to begin the flow.
• Release the trigger when the desired amount
has been dispensed.
5. Press the button when finished to complete
the dispense order.
• The total quantity dispensed is transmitted to the RF system.
• The meter returns to the locked position.
• The meter is now ready to receive another dispense order from the RF system.
NOTE:
If the original communication fails, the meter automatically attempts to communicate with the RF
system by resending the Dispense Result three (3) times, 30 seconds apart.
6. If the meter is unable to communicate a dispense result, the History icon lights.

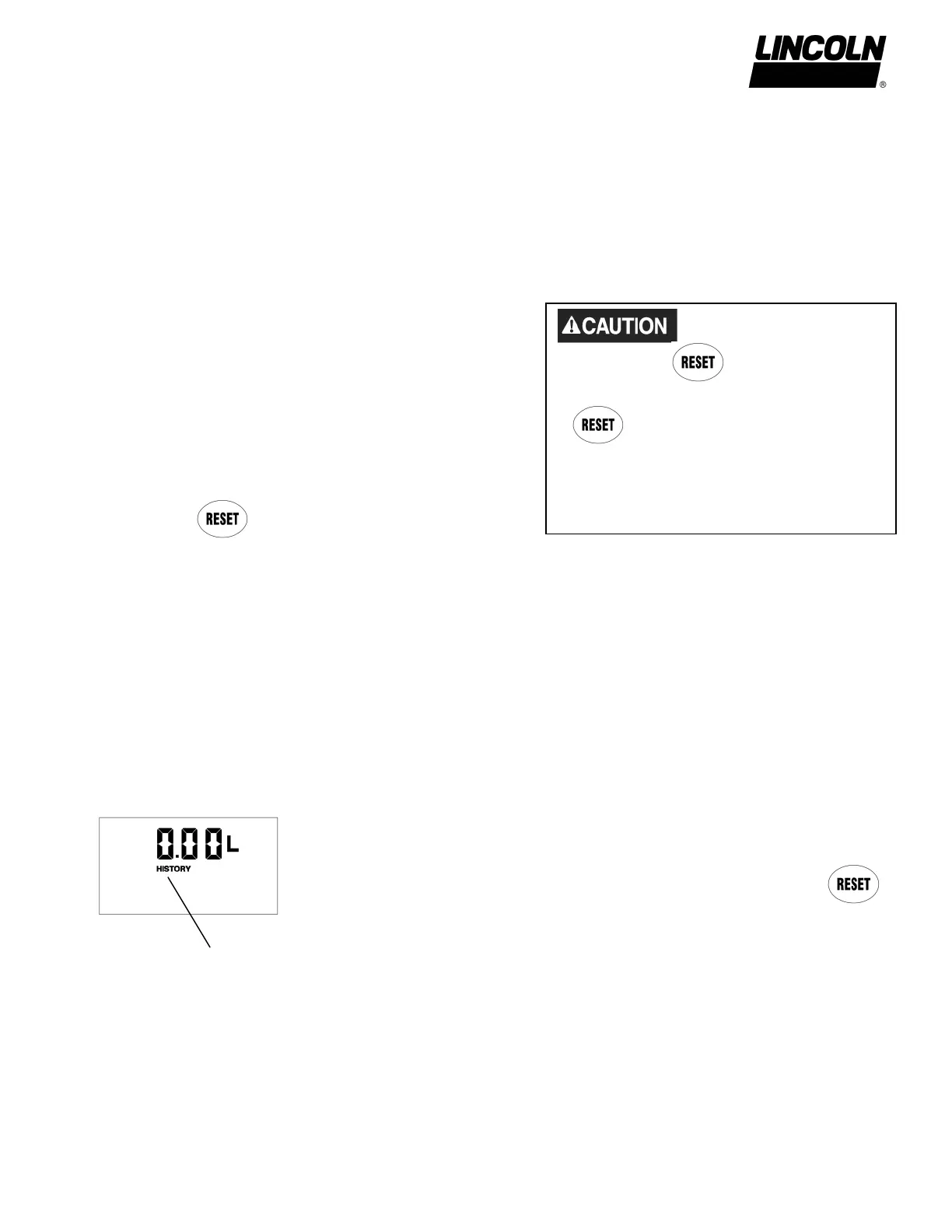

History Icon
The History icon indicates there is dispense result information that
has not been communicated to the keypad to complete a work order.
To send the dispense result information to the keypad, press
button to initiate communication.
Do NOT press button before
topping off.
If
button is pressed, the meter
returns to a locked-out position and does
not allow additional fluid to be dispensed
until a valid dispense order is received
from the RF System.
Histor
Icon
