Form 403595 Page Number - 4
METER OVERVIEW
The Electronic Preset Meter RF2 (EPM RF2) is equipped with RF (radio frequency)
communications to communicate with a fluid management system keypad to get authorization and
dispense information. This is referred to in the manual as the RF Mode.
The meter can also be run as a standard EPM. This is referred to in the manual as the EPM
Mode. This is intended for start-up purposes or when the fluid management system is not in use.
Once a work order has been entered at the keypad, the operator simply pushes the button
on the meter to start communications between the meter and the keypad. The meter receives
authorization from the keypad to unlock and the dispense batch quantity. When the trigger is
pulled the pre-set dispense batch quantity dispenses.
The meter automatically shuts off when the dispense batch quantity has been reached.
A “Top Off” feature allows additional fluid to be dispensed and tracked after the batch quantity has
been dispensed.
Upon completion of the dispense, the operator presses the button. The meter then locks,
prohibiting any unauthorized dispense of fluid to occur, and the dispense quantity is sent to the
keypad.

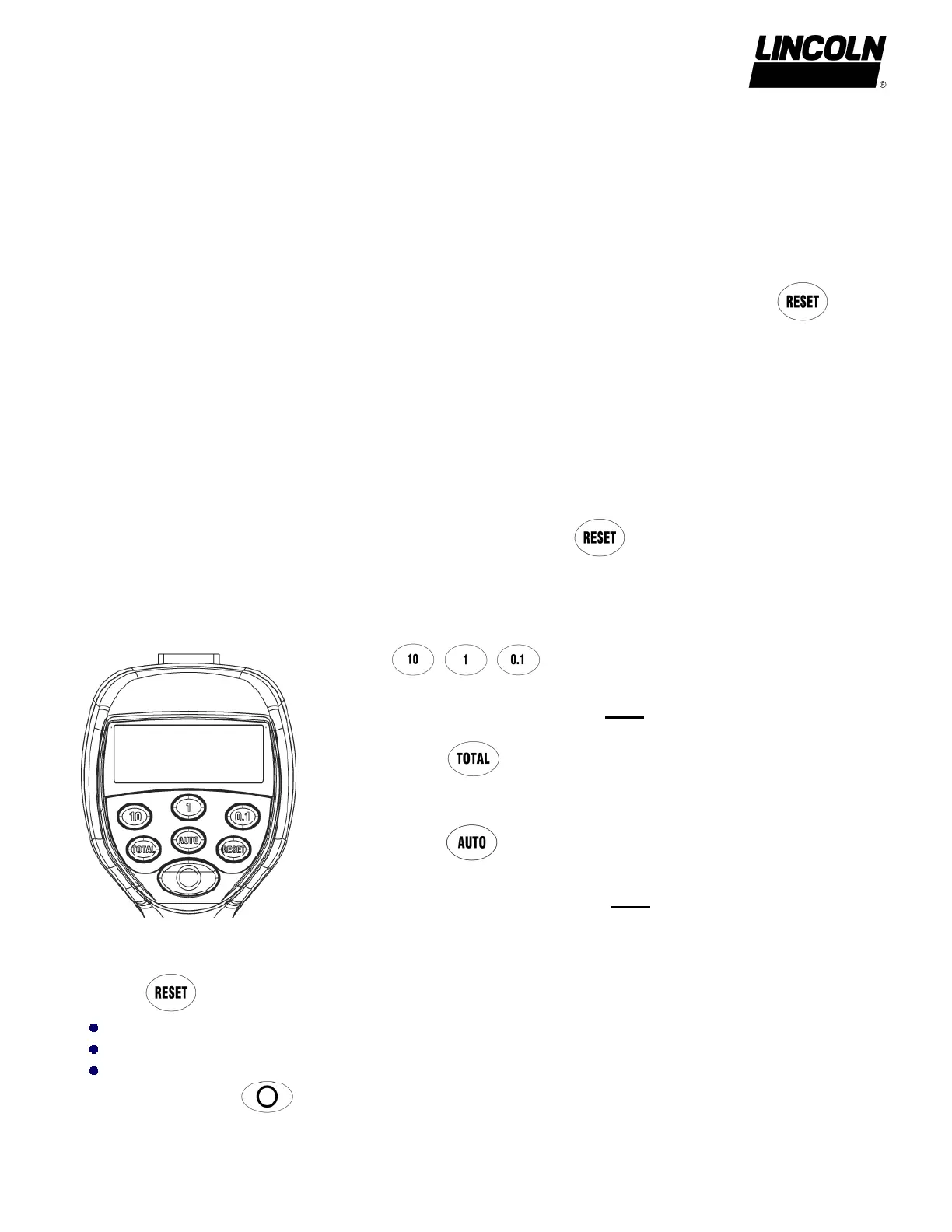

Meter Buttons
Used to enter the dispense Batch quantity when in the EPM
Mode. These buttons are NOT used in RF Mode.
Total
Used to display the accumulated total of fluid dispensed, as
well as the re-settable total.
Auto
Used to enter and exit the manual or batch mode when in
EPM mode. This button is NOT
used in RF mode.
Reset
Used to initiate RF communications from the meter to the Keypad.
Used in EPM mode to clear the previous batch.
Used to reset the re-settable total dispensed while pressing the TOTAL button.
Shut-Off or Stop
Used to stop the flow through an Emergency Override.
Meter Display
