Form 403595 Page Number - 6
Flushing Procedure
NOTE:
If the system has multiple dispense
positions, begin at the position farthest from
the pump and move towards the pump.
1. Close fluid dispense valves at every position.
2. Once the main fluid outlet valve at the pump is closed, the air pressure to the pump motor is
properly adjusted and the air valve is opened.
3. Slowly open the main fluid valve.
4. Place the hose end in a waste container. Make sure hose is secure so no fluid leaks during
flushing.
5. Slowly open the dispense valve and allow enough oil to pass through it to ensure that the
system is clean.
6. Close the valve and repeat for all dispense positions.

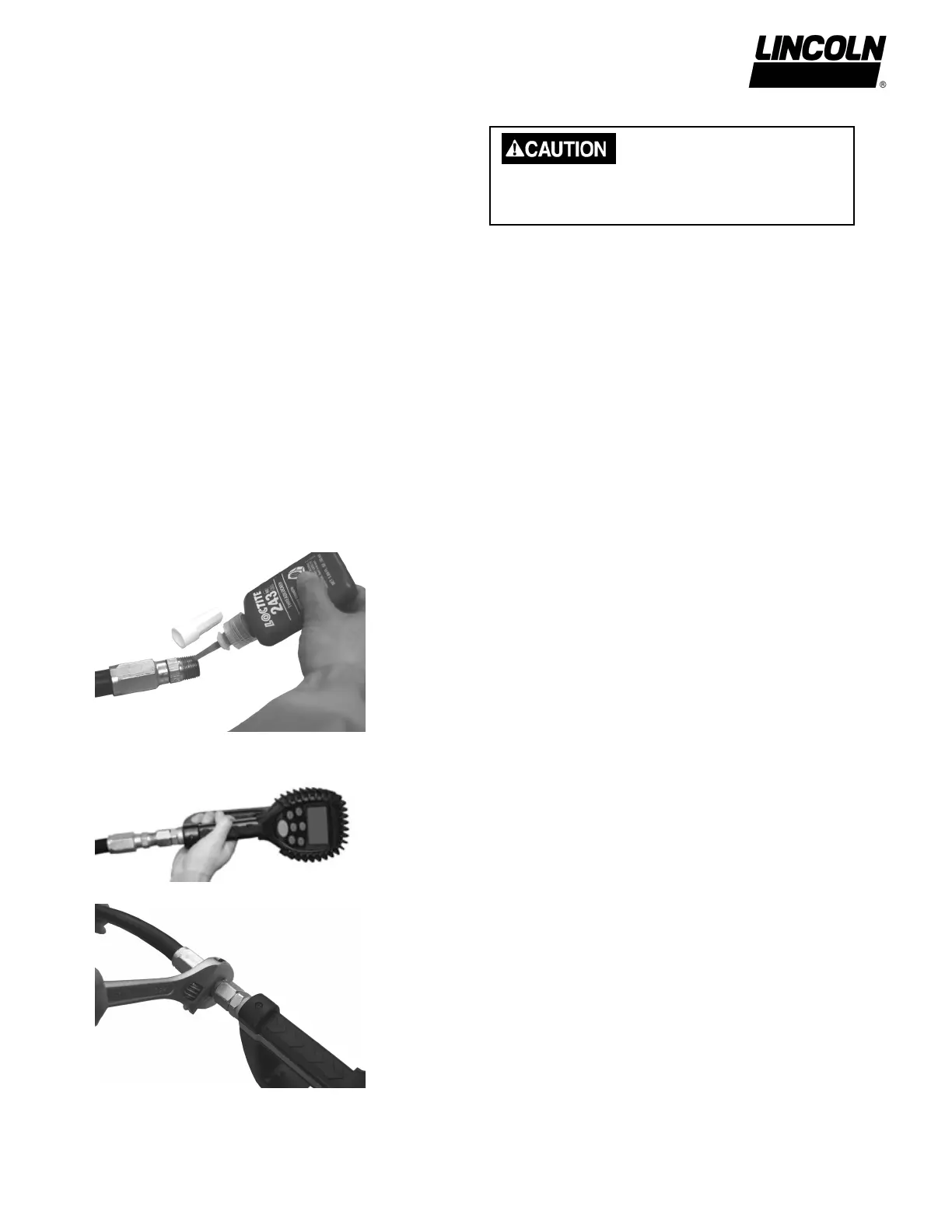

Apply Meter to Hose
Close the drain valve before starting this procedure.
1. Attach a swivel to the meter. Apply thread sealant to the
male end of hose. Recommended sealant is Loctite
®
243.
2. Insert the metal end of the hose into the swivel. Tighten
completely with an open ended, adjustable, wrench.
NOTE:
The threaded end of the meter always has female threads.
The metal end of the hose must have male threads.
Apply thread sealant, Loctite
®
243, or equivalent, to the male end.
The inlet and outlet swivel connections are either 1/2" NPT or 1/2"
BSPP, depending on meter model.
If this installation is new or if the fluid in the
lines is contaminated, flush the system
before installing the meter(s).
ttach the hose
