LIVOLTEK Hyper-2000 - Terminal Description

10
3.7 Terminal Description
A B C D E F
G H I J

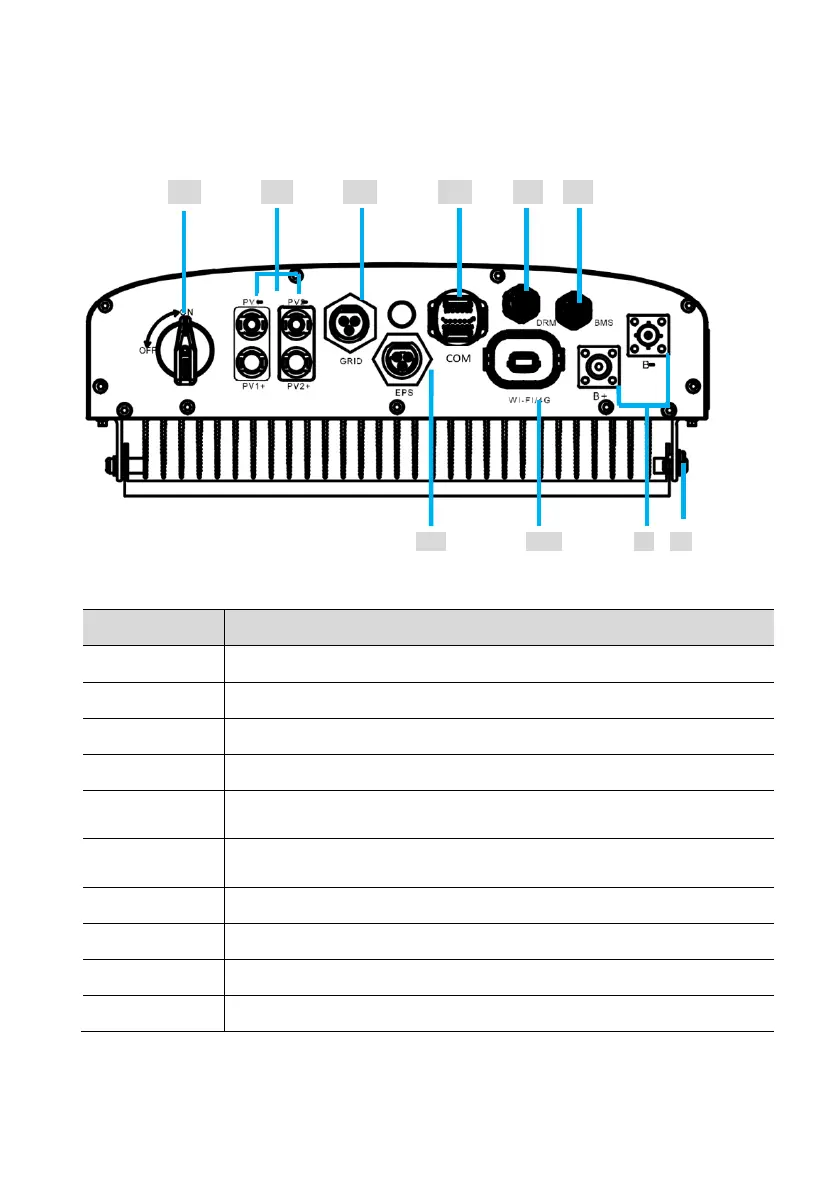

Figure 3. Terminals on the inverter
Position
Description
A
DC Switch
B
PV Input Terminal (The terminal number depends on inverter model)
C
Grid Terminal for connection to the utility grid
D
Multi COM(Communication) Terminal for CT, EV charger, Dry and meter
E
DRM Terminal block for connecting to a demand response enabling device
(DRED).
F
BMS Communication Port for communication between the inverter and the
Li-Ion battery.
G
AC Terminal for backup loads
H
Communication Port for Wi-Fi Stick
I
Battery Input Terminal (BAT+/BAT-)
J
Additional grounding terminal
Note: The image shown here is for reference only. The actual product received may differ.
