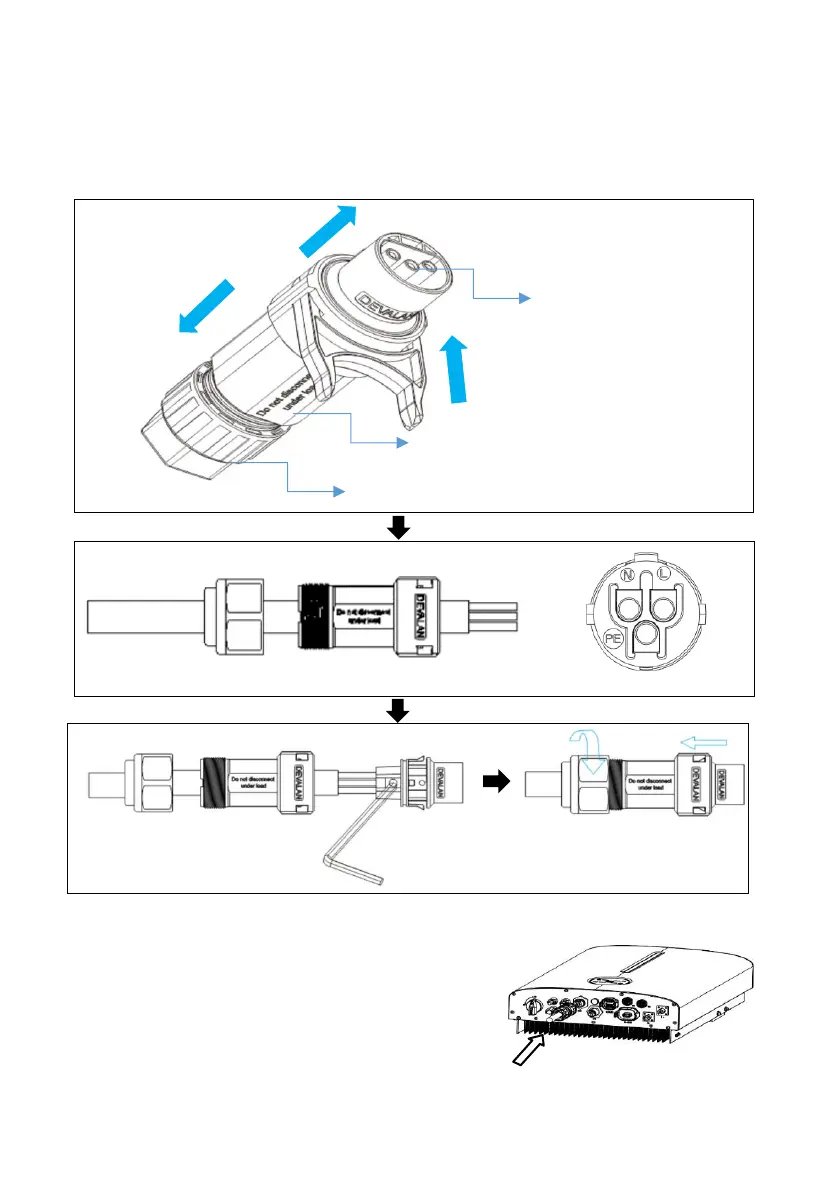

• Remove the cable jackets and strip the wire insulation by 5~7 mmm then insert cables into
connection terminals according to polarities indicates on it and tighten the screws.
• Push threaded sleeve onto the connection terminal until both are locked tightly.
• Screw up the terminal cap.
Step 2: Connecting the Grid terminal into the Grid Port on the inverter
•
Unscrew the cap on the Grid port.
•
Insert the Grid connector into the Grid port on the
bottom of the inverter.
•
Check all the wires are firmly installed.
