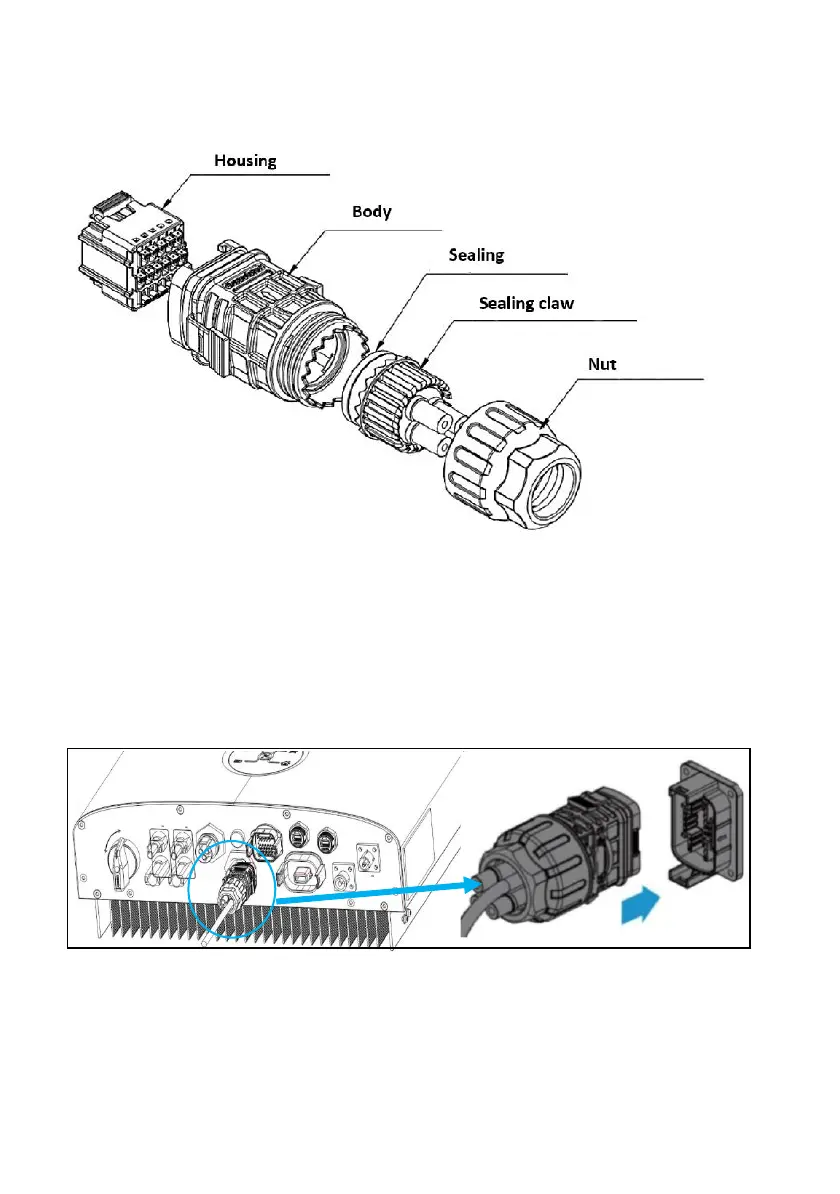

16pin terminals show as below:
Wiring Connection Procedure：
Step 1: Prepare the communication cable and remove the plug of the communication terminal.
Step 2: Dismantle the communication module and take out the pin terminal. To avoid water and
dust, keep the rubber plug to seal the unused holes.
Step 3: Insert the communication cable into the corresponding pins terminal to realize the RS485
communication function.
Step 4: Assemble the communication module and plug it into the communication terminal.
Notes: Assemble the communication module and plug it into the communication terminal
directly if you are not going to use the communication functions.
