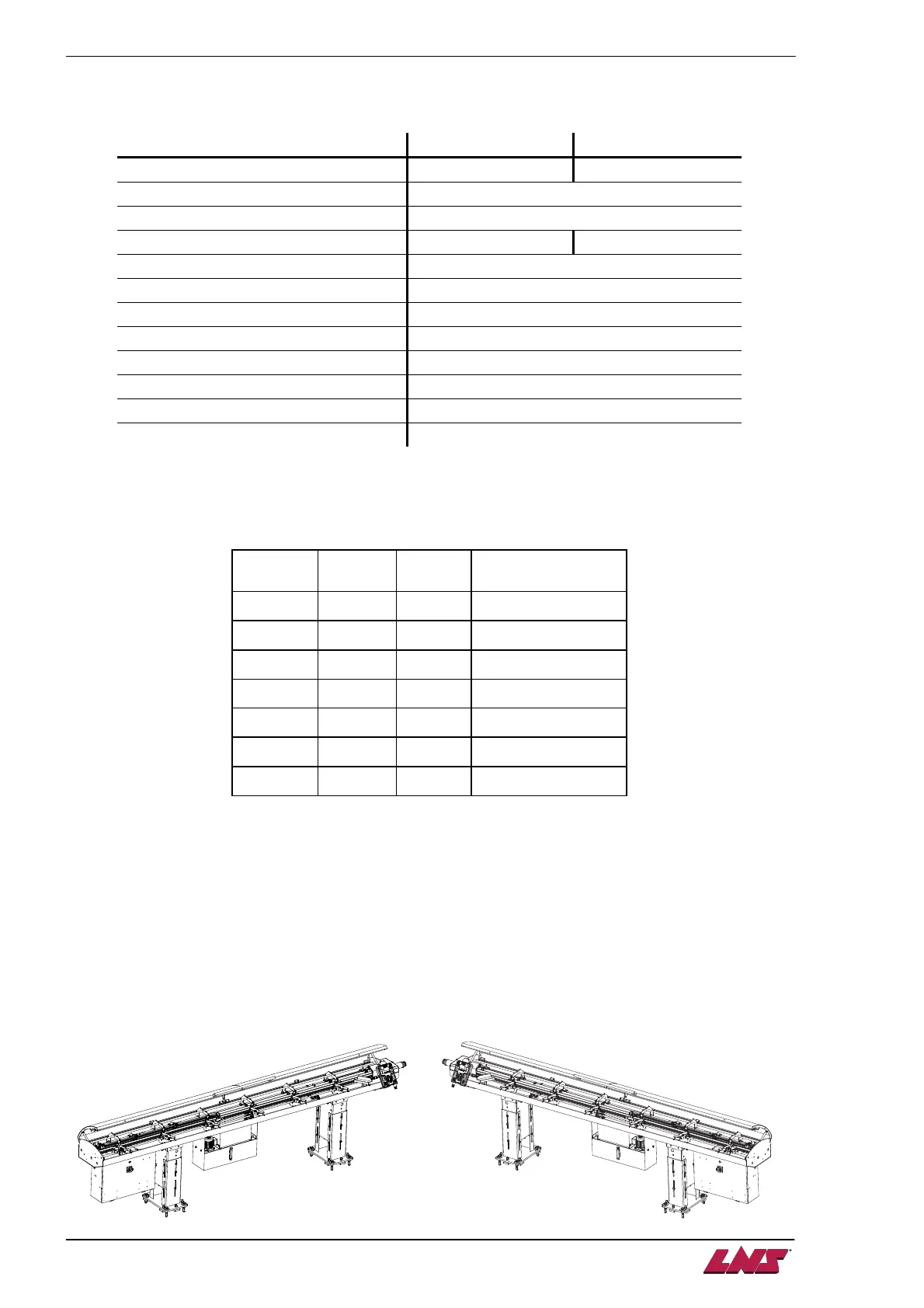

2-2 CHAPTER 2: TECHNICAL DATA
ALPHA ST320 S2
1. CHARACTERISTICS (*)
3 meters 12 '
Weight 400 kg 470 kg
Dimensions see p. 2-4
Minimum – Maximum diameter 3 mm – 20 mm
Maximum bar stock length 3200 mm 3800 mm
Minimum – Maximum remnant length 80 mm – 400 mm
Magazine capacity 54 pcs ( 5mm ) / 13 pcs ( 20mm )
Pneumatical pressure 5 bar
Air consumption < 10 l / loading cycle
Main electrical power (Volt) * 3x 200 – 380V 50 Hz – 60 Hz
Maximum feed rate >100 m/min
Loading cycle 30 – 40 sec.
Hydraulic oil ISO 100/40 litres
*) Depending on the options, these technical data may vary. Please refer to the technical data sheet.
2. CAPACITY
Channel
size
Pusher
size
Bar size
Minimum available
spindle size
8 7 3 - 5 8
11 10 3 - 10 11
14 13 5 - 12 14
17 16 6 - 16 17
19 18 6 - 18 19
21 20 6 - 20 21
23 22 6 - 22 23
The ALPHA ST320 S2 is able to load bar stock diameter from 3 up to 20 mm (22mm with bar stock
preparation). For best performance, LNS strongly recommends to choose the channel diameter with a
minimum space between the bar stock and the channel. The bigger this space is, the more vibration will
occur.
3. FLOOR PLAN
The following floor space plans indicate the most frequently used dimensions for placing the bar feed
system. Details on the dimensions of other parts or elements of the bar feed system will be furnished
upon request.
Left to Right load Right to Left load
