7-2 CHAPTER 7: GENERAL DESCRIPTION
ALPHA ST320 S2
1. LOADING SYSTEM
1.1. Description
The loading system is composed of bar magazine, loading fingers and the loading cylinder. This system
serves to store bar stocks and load them into the guiding channel. In order to load the bar stocks
smoothly during automatic cycles, the loading elements must be properly set up according to the bar
stock dimension.

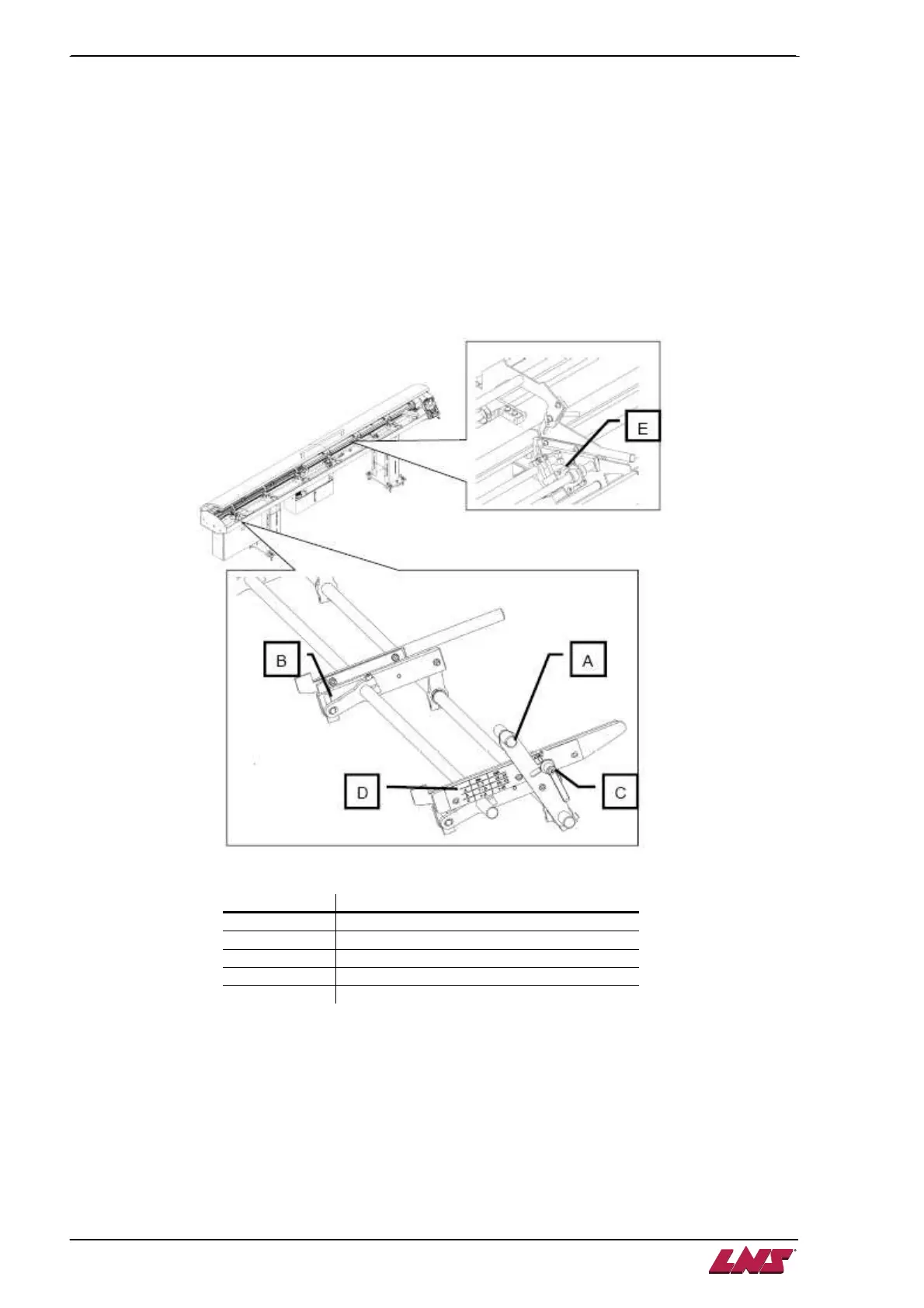

1.2. Layout of the elements
Designation Description
A Bar guiding limiter adjusting knob
B Loading finger
C Locking system
D Dial
E Loading cylinder
