CHAPTER 3: SETTING INTO OPERATION 3-3
ALPHA ST320 S2
1.3. Preparation of mounting
For installing the bar feed system, it’s advisable to contact LNS or one of its branches, agents. The latter
cannot be held responsible for any malfunction resulting from an incorrect installation in which they did
not take part.

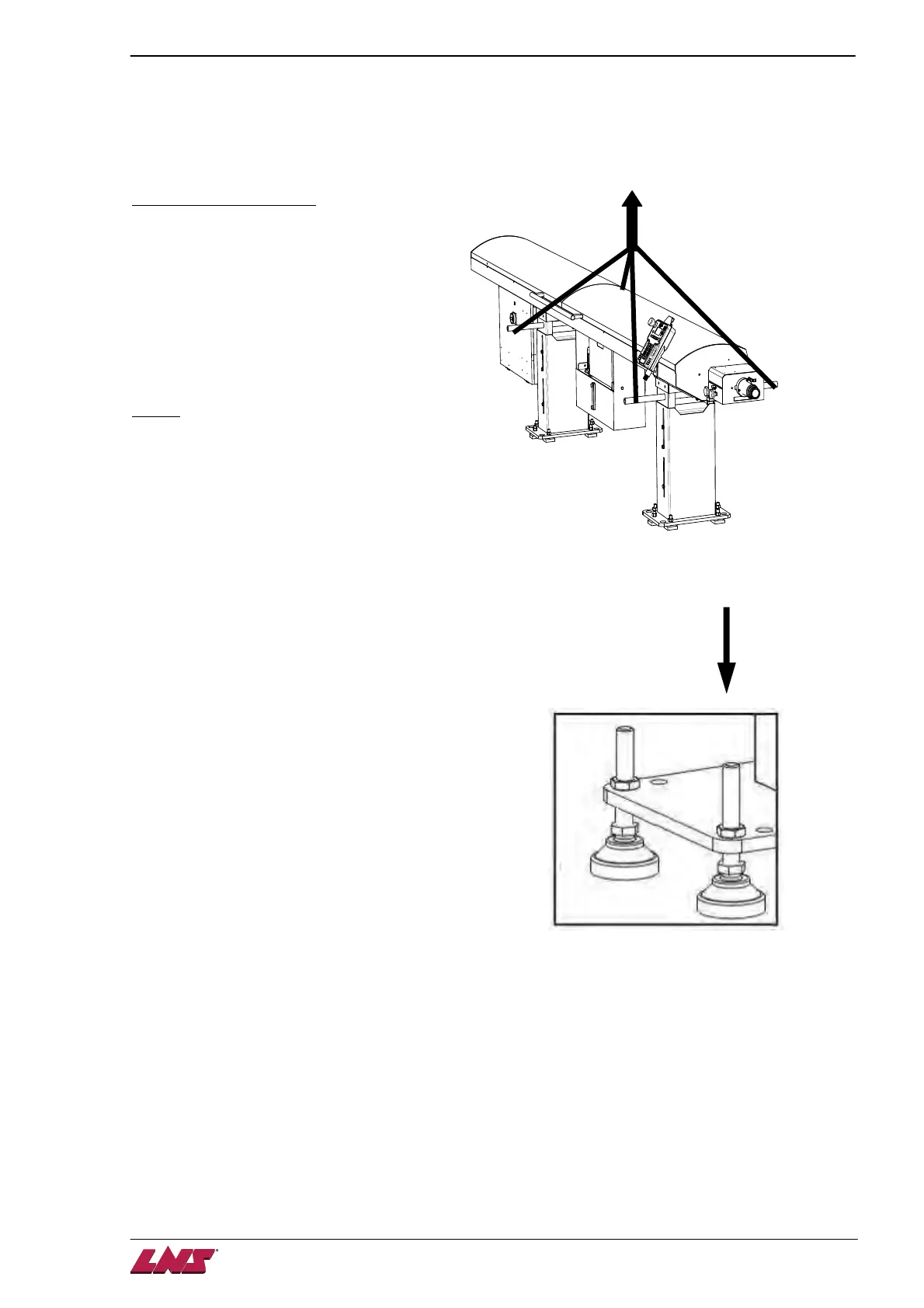

Procedures of preparation:
• Insert two bars into the holes of
the stands, place the hoist
vertically above the bar feed
system.
• Place the straps over the ends of
the bars, and then attach them to
the hoist. Raise the hoist to
tighten the straps.
Notice:
• The loading capacity of both the
hoist and straps must be larger
than 1 ton.
• Remove the screws for holding
the bar feed system to the pallet
during transportation.
• Lift the bar feed system and
removes the pallet. Ensure that the
bar feed system is balanced.
• Mount the Stands.
• Place the bar feed system behind
the lathe and proceeds mounting procedures
instructed on the next chapter.
