CHAPTER 4: ELECTRICS 4-3
ALPHA ST320 S2

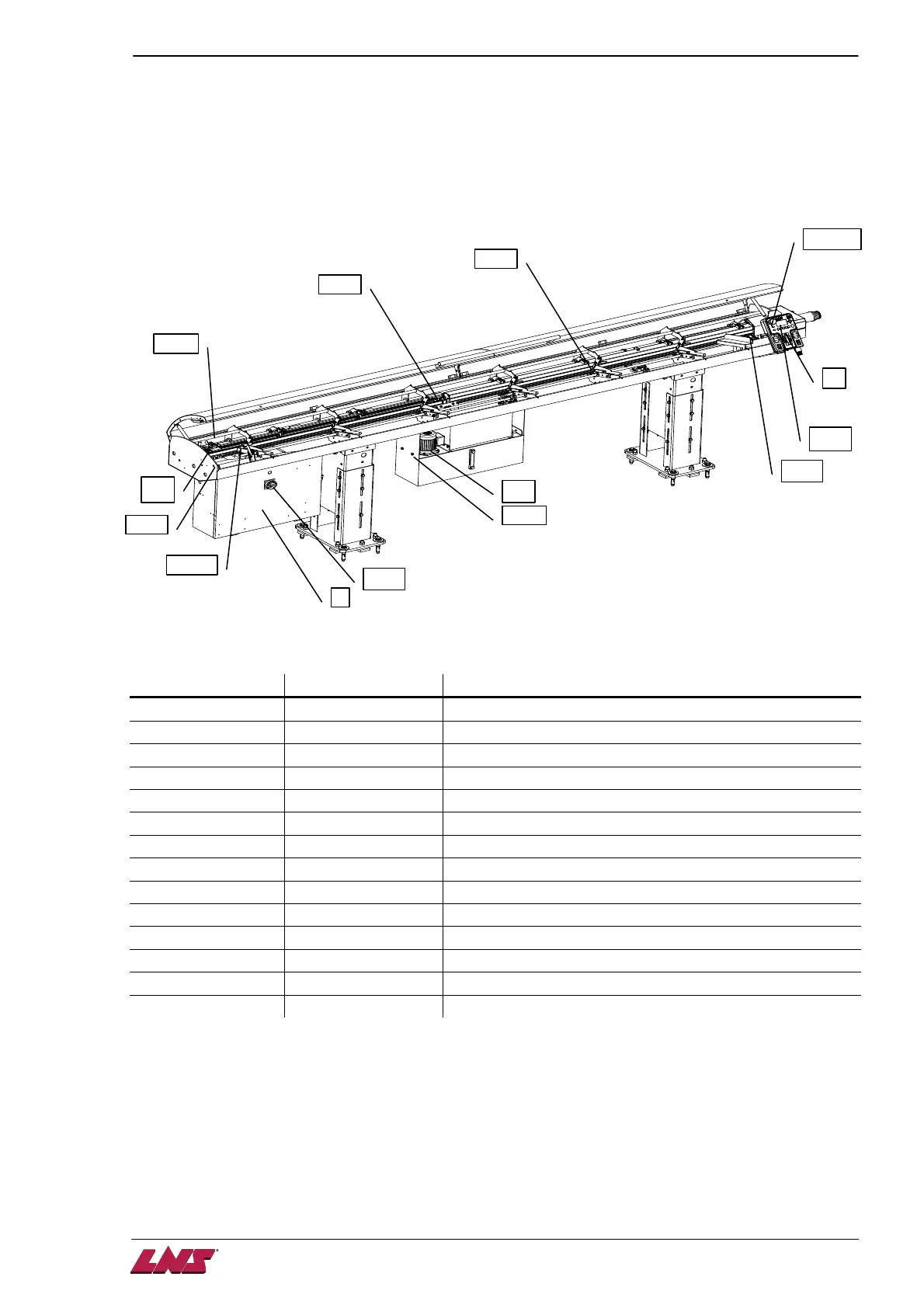

1.2. Overview
Designation Article No. Description
A - Remote control
B - Electrical cabinet
HMI - Human Machine Interface (display)
M1 - Servo motor
M2 - Hydraulic pump
QS1 - Main switch
SQ0
- Hydraulic pressure sensor
SQ1 - Bar length measuring device
SQ2
- Pusher in home position sensor
SQ3
- Guide channel in closed position sensor
SQ4
- Clamping device sensor
SQ5
- Guide channel in open position sensor
SQ8
- Main access cover closed sensor
STP1 - Emergency stop button
M2
M1
S
Q0
SQ2
SQ4
SQ8
A
QS1
B
SQ3
HMI
STP1
SQ1
SQ5
