6.3. Adjustment
To avoid friction between the bar stock and the guiding elements, the guiding elements should NEVER
clamp the bar stock. There should be 1mm gap between the bar stock and the guiding elements. For
profiled bar stocks, the gap should be kept between the elements surface and the virtual circle formed by
bar stock corners. For profiled bar stocks, specific guiding elements machined at the correct diameter are
available.

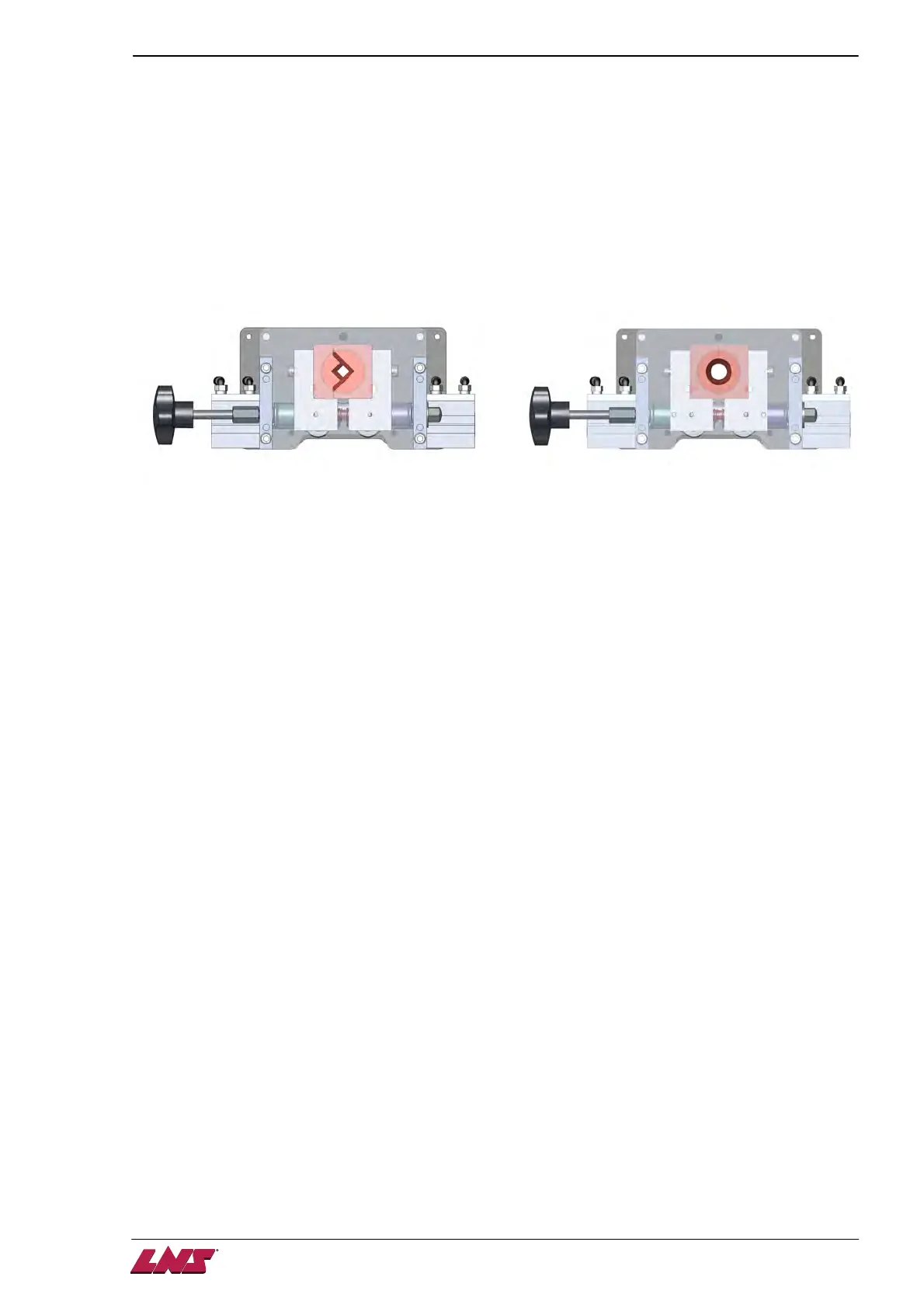

Standard V element
Round element for profiled bar stocks
