Load Cell Systems TLB4 User Manual

- 8 -

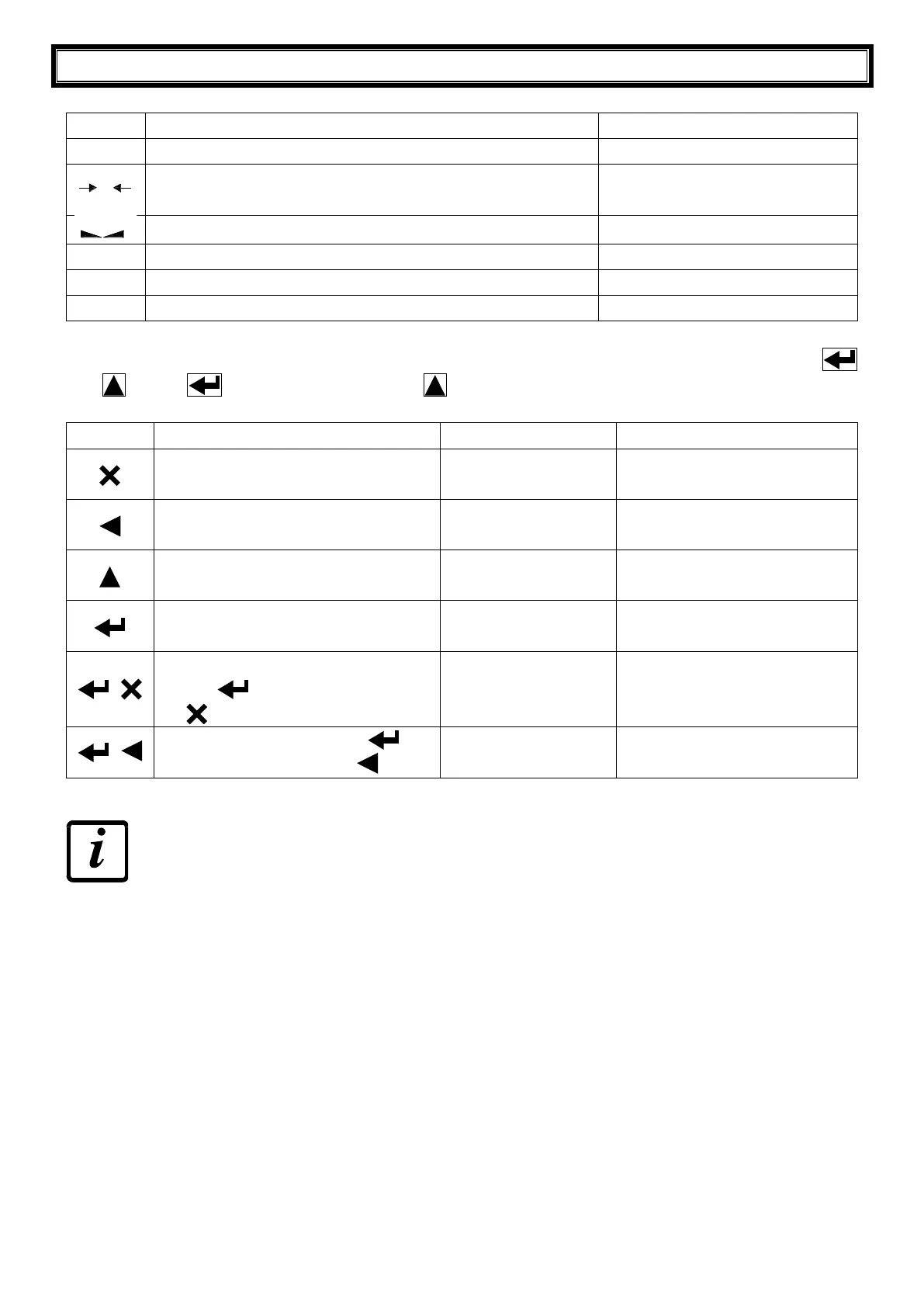

LED AND KEYS FUNCTIONS
LED
Main function
Secondary function *
NET
net weight (semi-automatic tare or preset tare)
LED lit: output 3 closed
zero (deviation from zero not more than ±0.25
divisions)
LED lit: output 2 closed
stability
LED lit: output 1 closed
kg
unit of measure: kg
g
unit of measure: g
LED lit: input 2 closed
L
unit of measure other than kg or g
LED lit: input 1 closed
*) To activate the secondary LED function, during weight display press and hold down the keys
and (press immediately followed by ).
KEY
Short press
Long press (3 s)
Into menus
Semi-automatic zero
Tare resetting
Cancel or return to previous
menu
Gross  Net
Net  Gross
Select figure to be modified
or go to previous menu item.
Weight print
mV load cell test
Modify selected figure or go
to next menu item
Setting setpoint and hysteresis
Confirm or enter in
submenu
+
Setting general parameters
(press immediately followed
by )
+
Setting preset tare (press
immediately followed by )
Into menus LEDs light up in sequence to indicate that it is not displaying a weight.
0
