Logan L-A846-ND - Rear Panel

User Manual
7/183
NO.
TYPE
NAME

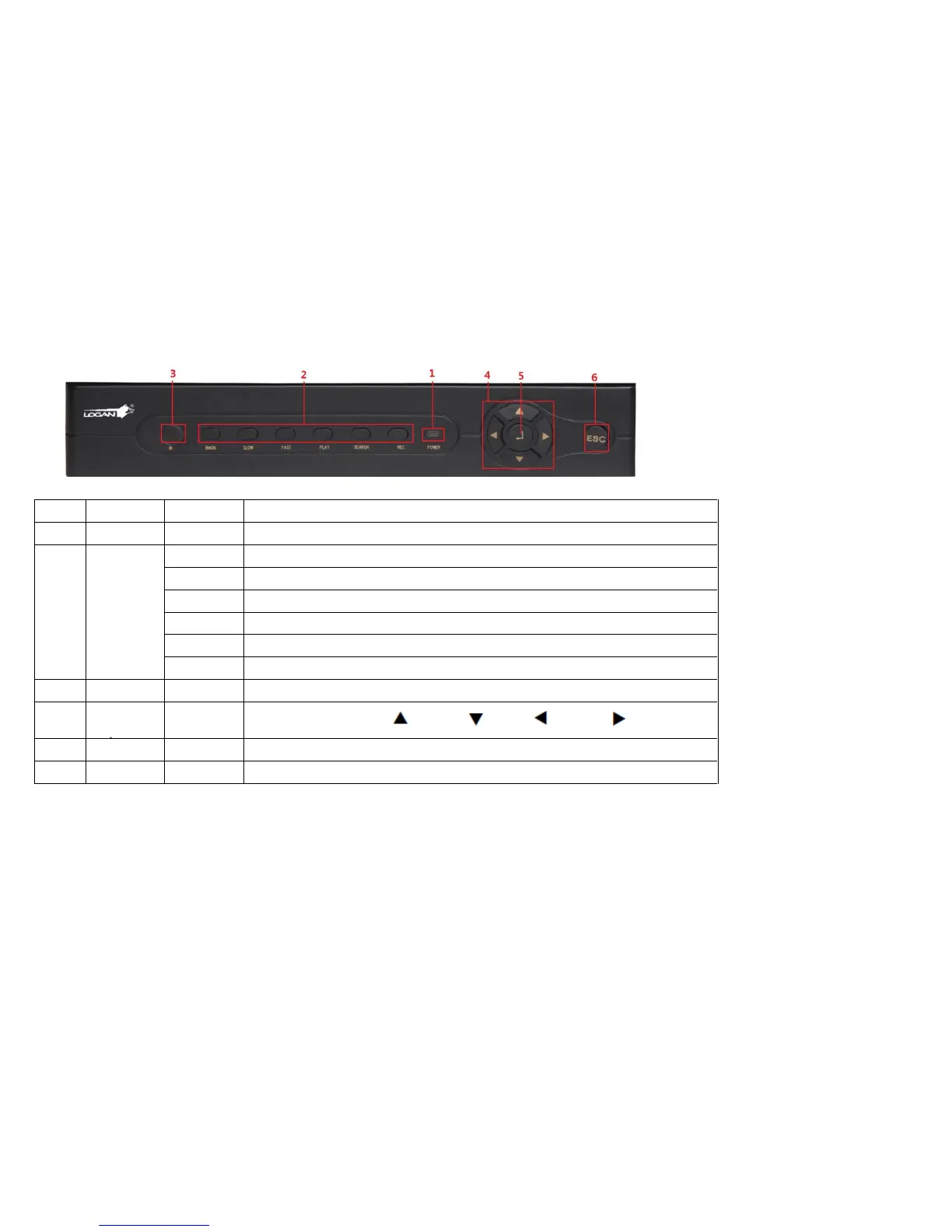

Instruction
1
Power
POWER
Power indicator
2
Function
keys
Menu
REC
Recording control buttons
Search
Search video files
play
Playback/play
Fast
Fast playback
Slow
slow playback
Back
Slowly playback
3
IR receiver
IR
Remote control receiver
4
Control
button
Direction key
direction key include: up【 】、down【 】、left【 】、right 【 】four buttons.
5
OK
Confirm
operation
Enter
6
ESC
esc
Esc,exit
2.2 2.2Rear panel
The rear panel of 8CH serie
