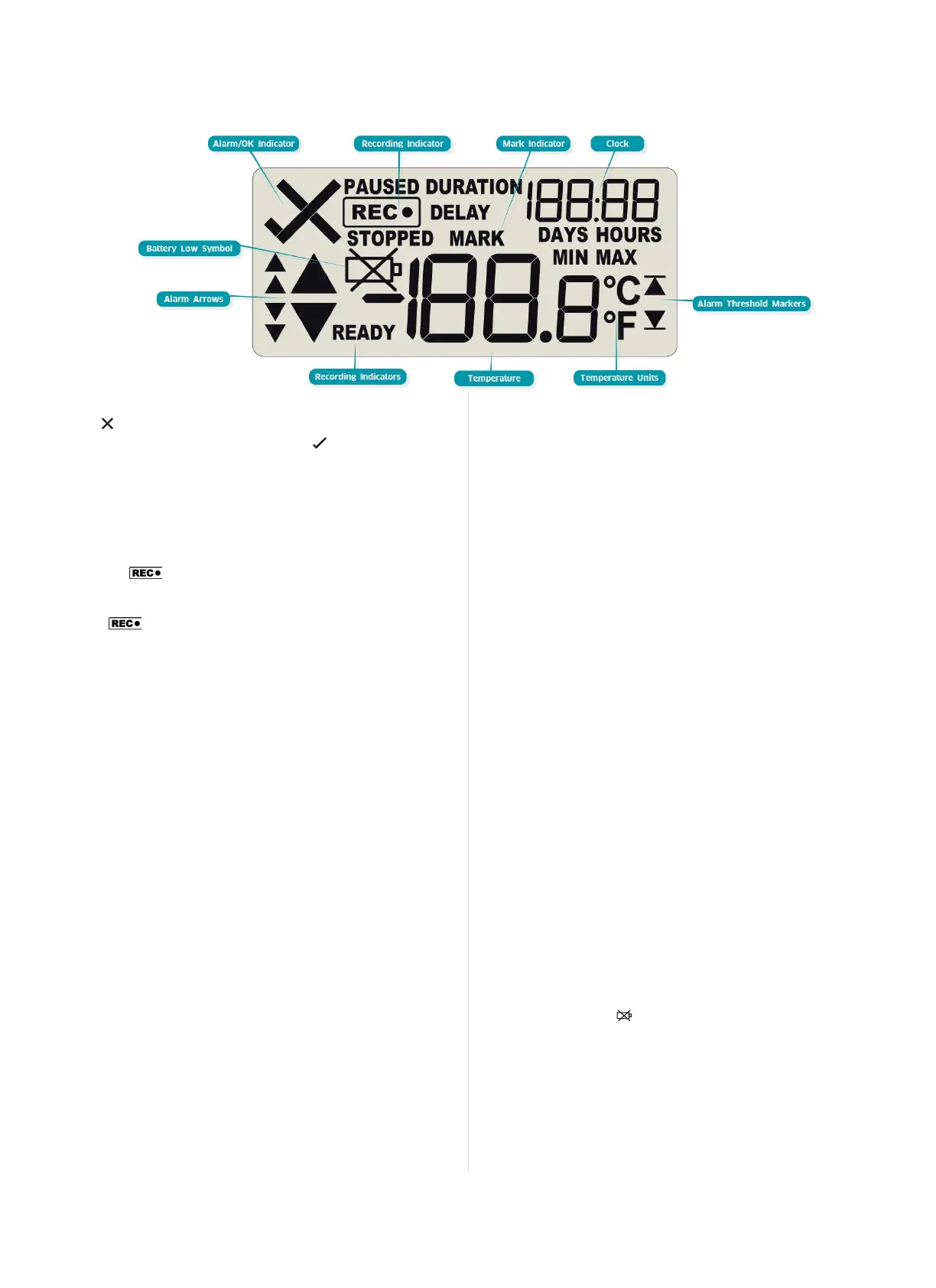

ALERT/OK indicator
The symbol is shown as soon as the UTRID-16 has registered an
alarm event. While there are no alarms, the symbol is shown.
Recording indicators
The recording indicators show what data the UTRID-16 is currently
collecting.
l
If the word READY is shown, the UTRID-16 is ready to be
started. Depending on the configuration it may record pre-start
readings.
l
If the symbol is shown, the UTRID-16 is recording
temperatures at the sample interval defined during configuration
with LogTag
®
Analyzer.
l
If is shown together with the word PAUSED, the product
is also recording, but the recorded values are not taken into
account when calculating alarm events and durations.
If the word STOPPED is shown, the UTRID-16 has finished
recording temperature data.
Mark indicator
The word MARK is shown when the next temperature reading is
identified with an inspection mark in the recorded data.
Clock
The clock display is used to show either
l
current time,
l
time remaining to start of a delayed start or
l
duration, for example of an alarm.
The display identifies which of those is displayed as follows:
l
If the word DELAY is shown, the time value represents a start
delay, or the time remaining until a date/time start will occur.
l
If the word DURATION is shown, the time value represents the
duration, for example the time above the upper alarm limit.
l
If the word DAYS is shown, the clock represents the number of
days in a delay or duration.
l
If the word HOURS is shown, the clock represents the number
of hours and minutes in a delay or duration. If none of the above 4
words are displayed, the clock shows the current time.
The word bootappears in place of a clock, if new firmware is being
uploaded to the UTRID-16.
The word USb appears when the unit is plugged into a USB port.
MIN/MAX indicator
The word MAX is shown when the temperature on the display
represents the maximum recorded temperature for the current trip.
The word MIN is shown when the temperature on the display
represents the minumum recorded temperature for the current trip.
Alarm Threshold Markers
The upper alarm threshold marker is shown if an alarm event
occurred at one of the upper temperature limits. It is also shown
when one of the upper thrershold values is shown on the review
screen.
The lower alarm threshold marker is shown if an alarm event
occurred at one of the lower temperature limits. It is also shown when
one of the lower threshold values is shown on the review screen.
Temperature Units
Depending on the selected PDF temperature units, this shows either
°F or °C.
Temperature Value
This 4 character, 7-segment display shows the last recorded
temperature while the UTRID-16 is recording readings. Once the
recorder has stopped, nothing will be displayed.
Alarm Arrows
The up-arrow is shown when the temperature displayed is above the
specified upper temperature limit. The down-arrow is shown when
the temperature displayed is below the specified lower temperature
limit.
The four smaller up/down-arrows are secondary and tertiary alarm
symbols. They are used when more than one upper or more than one
lower alarm is defined and are shown then the current temperature is
above or below the corresponding alarm levels.
Battery Low
The battery low symbol will appear if the UTRID-16 has a low
battery. If the symbol is not shown while the display is turned on, the
battery is still OK.
Page 8 of 21 UTRID-16 Product User Guide, Revision 1, copyright © 2004-2016, LogTag
®
Recorders . All rights reserved.
Display Overview
