LONCIN G120F User Manual

G120F/G160F/G200F Part I specifications
- 10 -

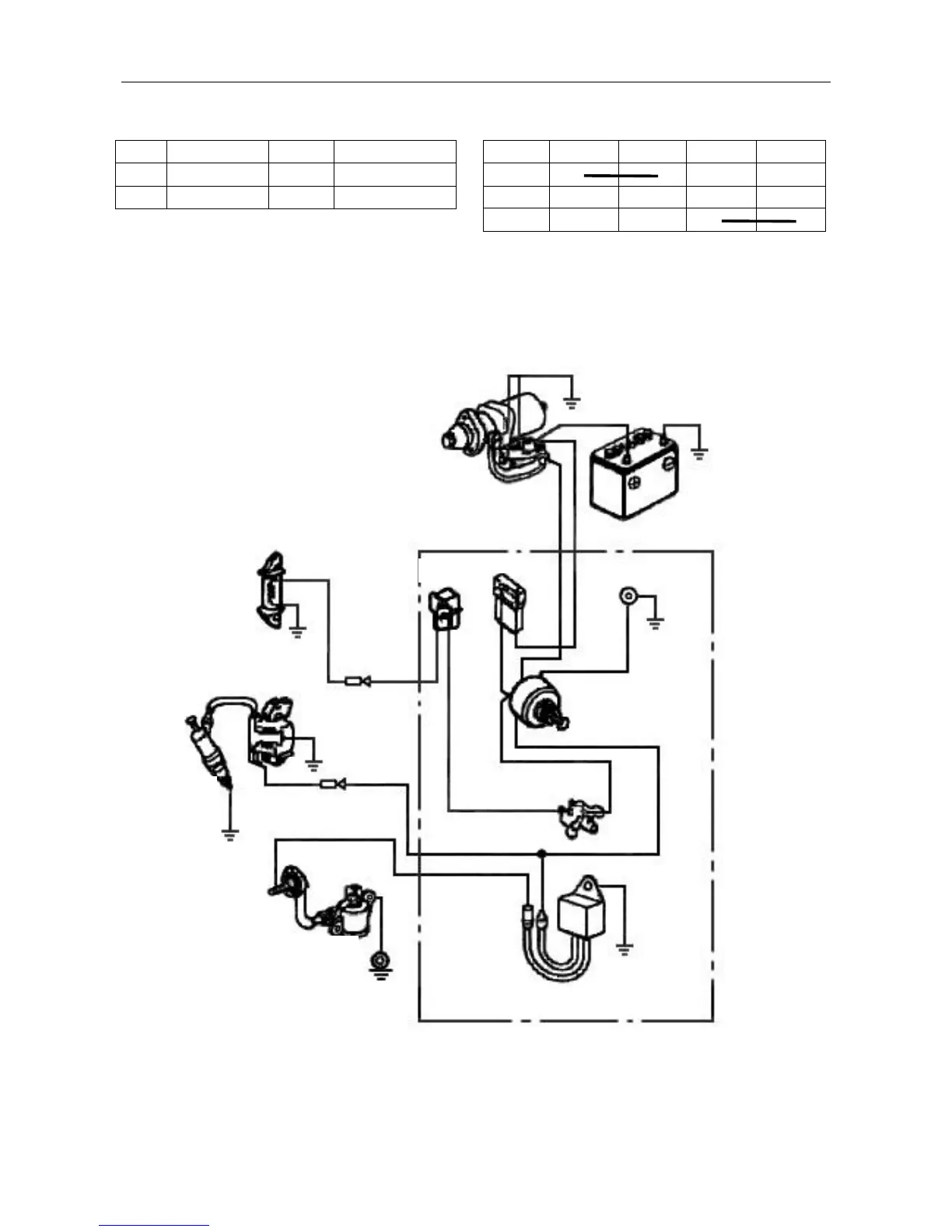

1-5 Wiring diagrams
Wire colors and codes Combination switch
BI Black Br Brown
Y Yellow R Red
W White G Green
IG E BAT ST
OFF ○ ○
ON
START
○ ○
1. With oil alert and electric starter
Control box
Rectifier
Ignitor
Charging coil
Spark plug
Oil level switch
Oil alert unit
Circuit
breaker
Engine switch
Starter motor
Battery
Starter solenoid
Fuse
W
Bl/W
Bl
Bl/R
Bl
Y
W
W
W
Br
W
W
