G120F/G160F/G200F Part I specifications
- 3 -
1-1 Introduction

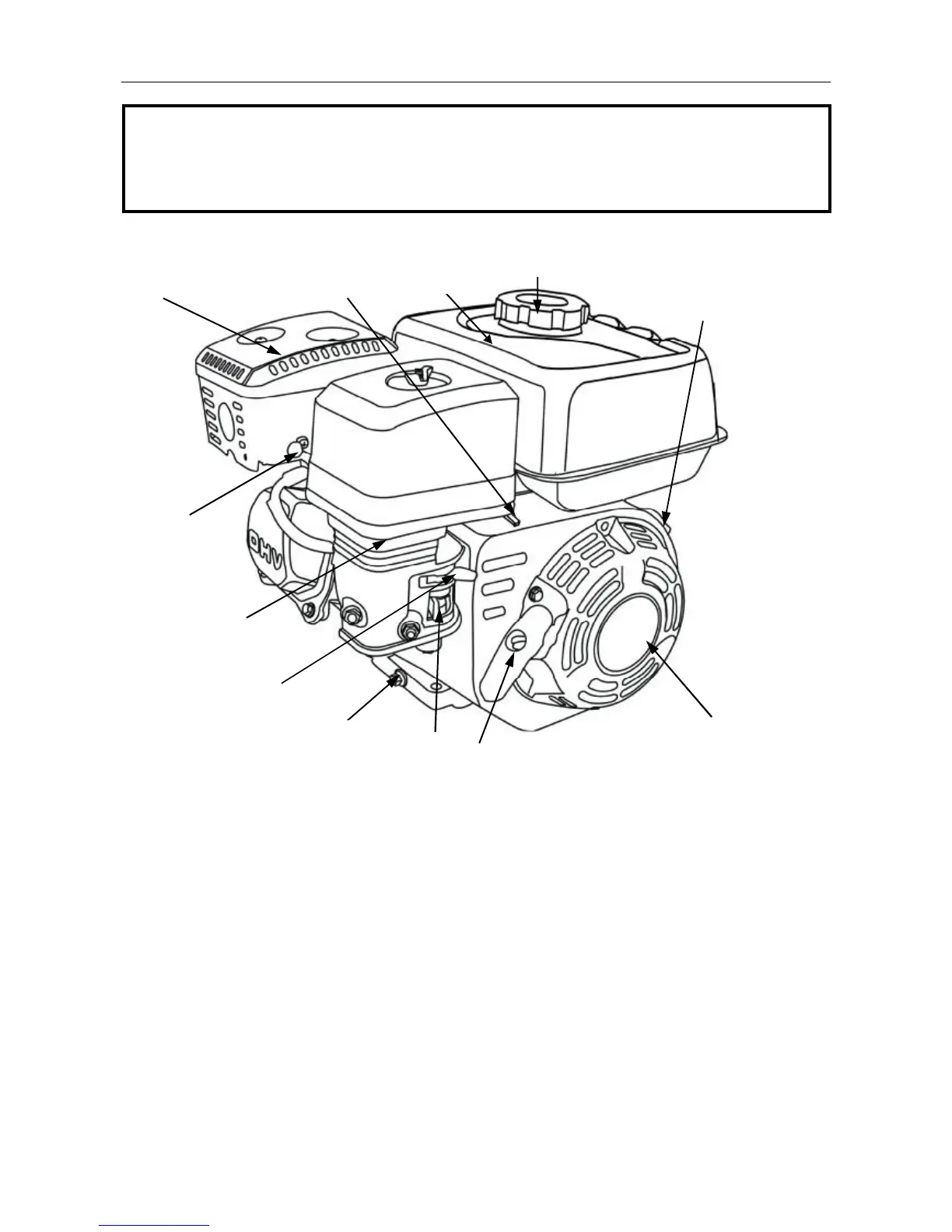

Air cleaner—protects the engine through
removing dust and other impurities in the air.
Spark plug—delivers the high voltage of the
ignition coil into the engine’s combustion
chamber, and produces sparks by electric
discharge between electrodes, to ignite the
fuel-air mixture.
Muffler—prevents the engine noise from
traveling, so as to lower noise of the exhaust
system.
Fuel cock—a switch in the fuel line to control
the fuel flow in the fuel line.
Recoil starter—serves to start the engine
Choke lever—closes the choke before
engine’s cold starting, and the carburetor will
deliver a very rich mixture to let the engine be
easily startable. When the engine has warmed
up, the choke lever shall be fully opened.
Engine switch—before starting the engine, the
switch shall be put in the ON position; if you
put the switch in the OFF position the engine
will be shut down
Throttle lever—serves to adjust the engine
speed, so as to obtain the power and speed
you want.
Fuel tank cap—when loosened, fuel can be
added into the fuel tank; when tightened, fuel
can be sealed in the fuel tank.
Fuel tank—stores the fuel and delivers fuel to
the carburetor.
Oil drain plug—when loosened, all engine oil
in the engine can be drained off so that engine
oil can be changed
1-1.Introduction 1-2. Product parameters 1-3. Dimensions (boundary and
mounting dimensions) 1-4. PTO assembly drawing 1-5. Wiring diagrams
Starter grip
