G120F/G160F/G200F Part IV Disassembly and maintenance
- 31 -
4-1. Air cleaner and muffler

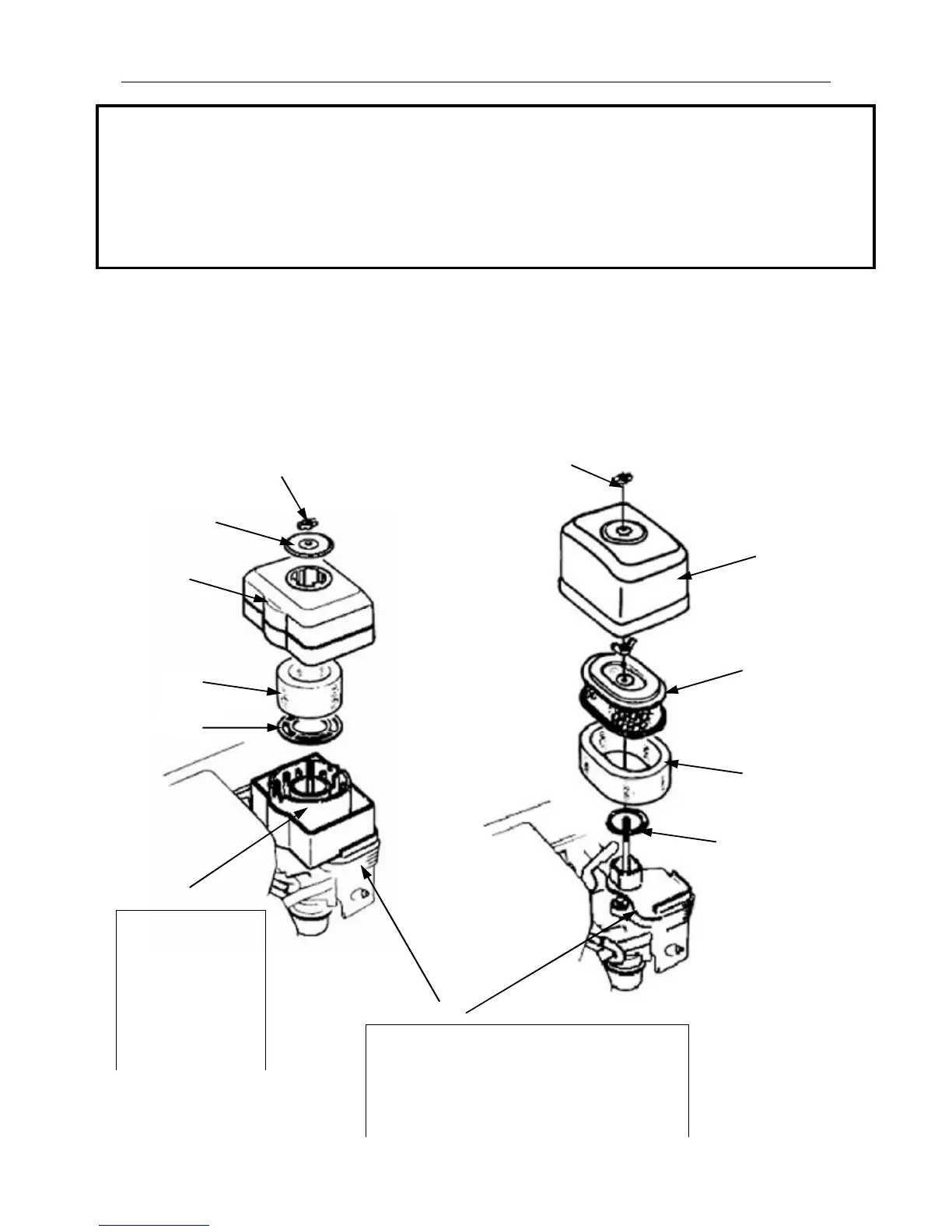

1. Disassembly/reassembly of air cleaner
4-1. Air cleaner and muffler 4-2. Starter and control box 4-3. Carburetor
4-4. Fuel tank and speed governing system 4-5. Flywheel, ignition coil, starter motor and lighting coil
4-6. Cylinder head and valves 4-7. Crankcase body, piston, connecting rod and crankshaft
4-8. Governing gear and fuel level switch 4-9. Reduction system
Oil bath type Dual element type
Air cleaner base
Disassembly/Reassembly:
·Remove and install with the choke lever in
ON position and fuel valve in OFF position.
·Clean the inside with compressed air before
installation.
Wing nut M6
Cap
Element
Air cleaner cover
Air cleaner case
Oil capacity:
60cc
Reassembly:
Wash with cleaning
oil, then add clean
engine oil and
install
Grid
Wing nut M6
Air cleaner cover
Paper
element
Foam
element
Elbow seal
